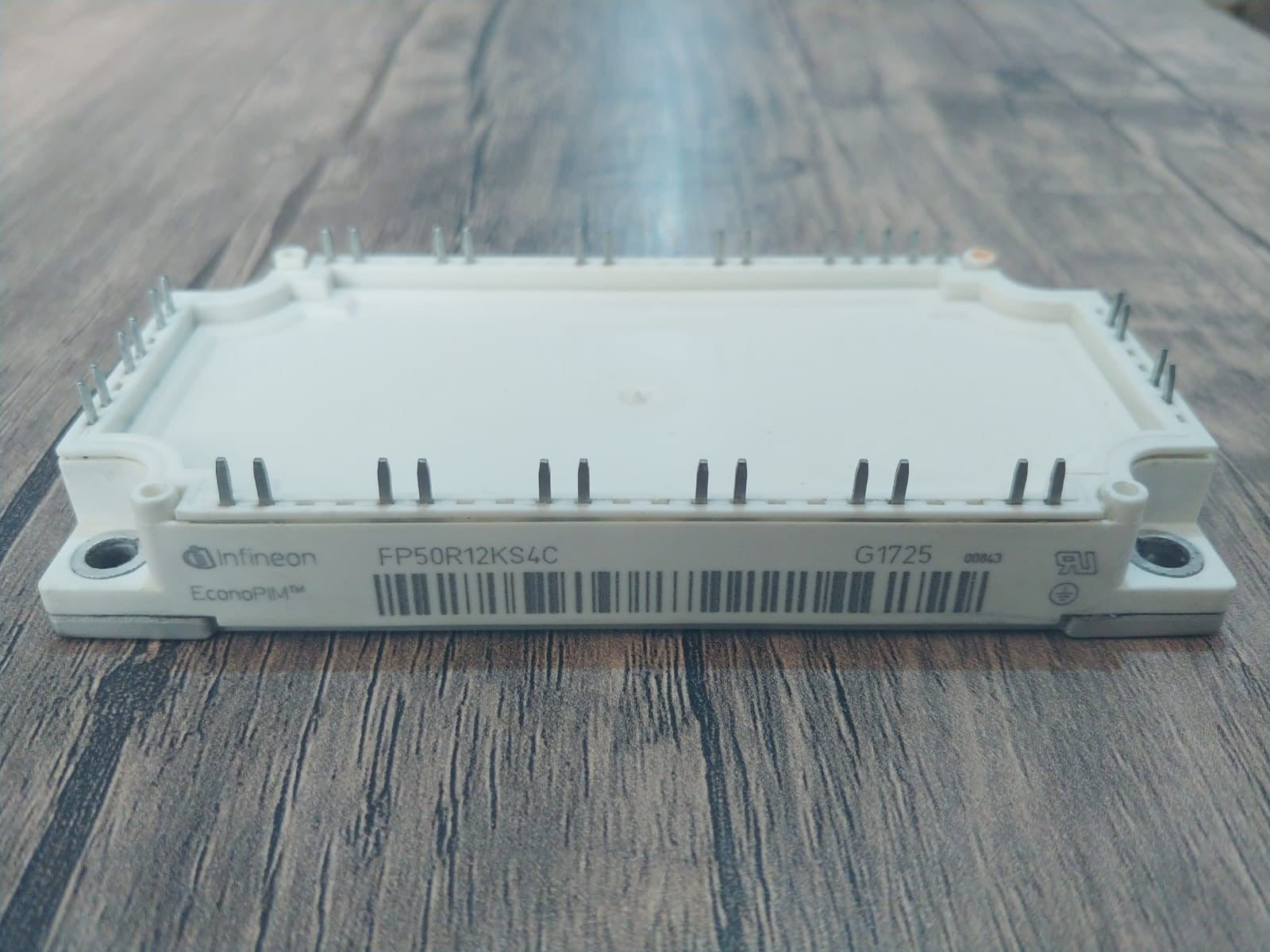

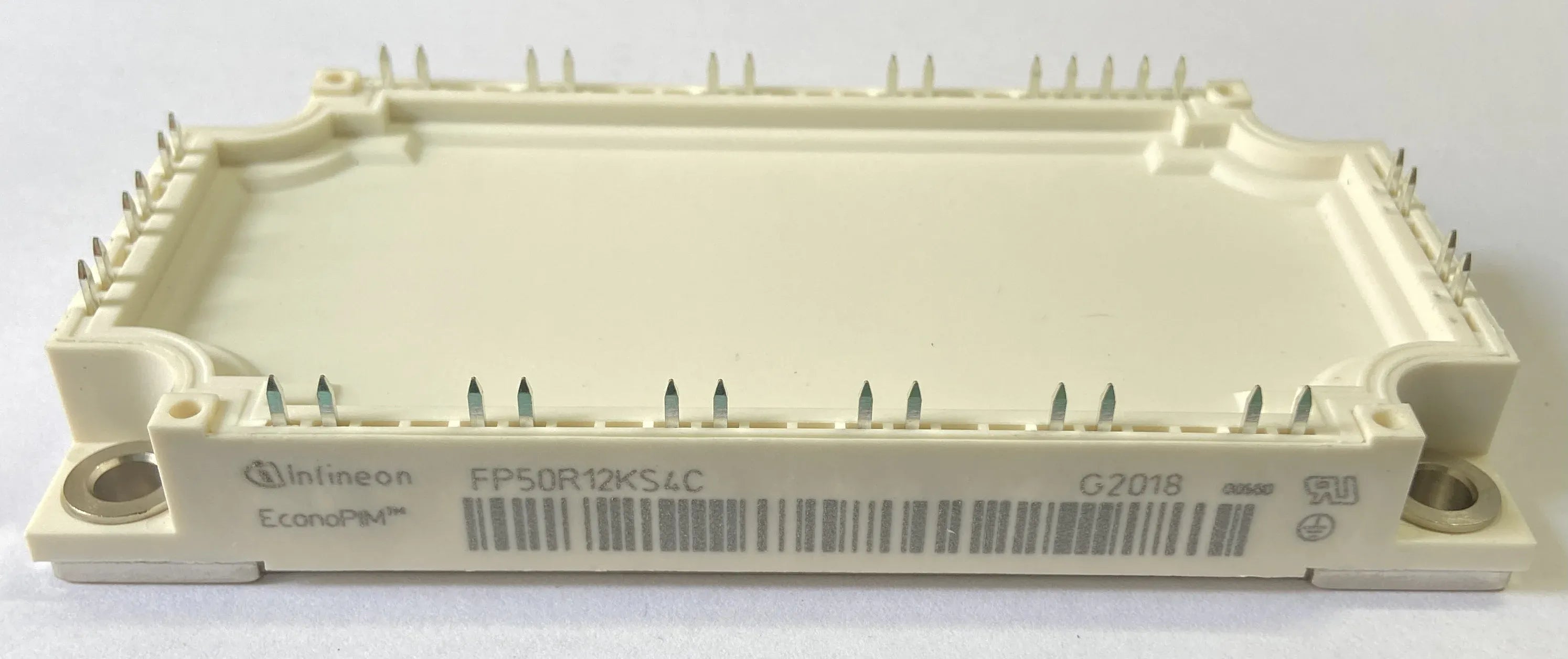

Infineon FP50R12KS4C 1200V 50A IGBT Module
FP50R12KS4C IGBT module from Infineon Technologies is a high-performance solution designed for demanding industrial and commercial power electronics applications. Engineered with the EconoPIM3-24 package, it delivers exceptional efficiency and reliability in three-phase inverter systems. Whether you are managing motor drives, renewable energy systems, or industrial automation processes, this module ensures optimal performance with minimal energy loss.
Built for durability, the FP50R12KS4C operates reliably within a wide temperature range of -40°C to +125°C, making it ideal for harsh environments. Its robust design ensures long-term stability and resistance to thermal stress, while the high collector-emitter voltage rating of 1200 V and continuous collector current of 70 A guarantee efficient power conversion. Engineers and system designers benefit from a dependable module that reduces maintenance and downtime in critical applications.
Versatile in application, the FP50R12KS4C supports motor control, renewable energy, and industrial automation systems with high efficiency and low switching losses. Its compact design allows for seamless integration into existing setups, improving system reliability and overall operational performance. With proven durability and efficiency, this IGBT module is an ideal choice for professionals seeking to enhance power electronics solutions.
Key Specs
| Feature | Specification |
|---|---|
| Configuration | 3-Phase Inverter |
| Collector-Emitter Voltage (V<sub>CE</sub>) | 1200 V |
| Continuous Collector Current (I<sub>C</sub>) at 25°C | 70 A |
| Collector-Emitter Saturation Voltage (V<sub>CE(sat)</sub>) | 3.2 V |
| Gate-Emitter Leakage Current (I<sub>GE</sub>) | 400 nA |
| Power Dissipation (P<sub>D</sub>) | 360 W |
| Package Type | EconoPIM3-24 |
| Operating Temperature Range | -40°C to +125°C |
| Gate-Emitter Voltage (V<sub>GE</sub>) | ±20 V |
For more detailed information, please refer to the Infineon FP50R12KS4C datasheet.
