Infineon FP25R12KE3
Regular price
Rs.0.00

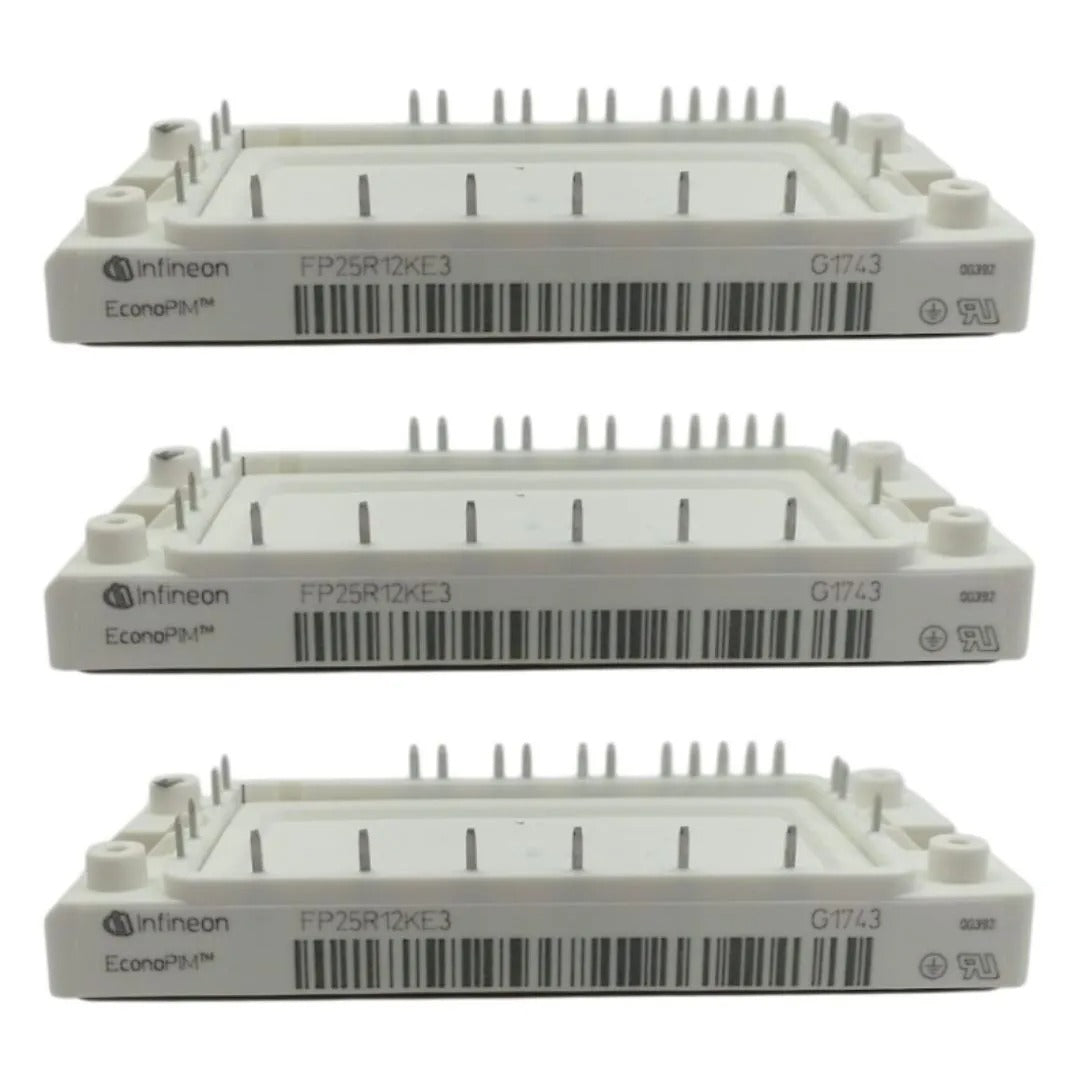

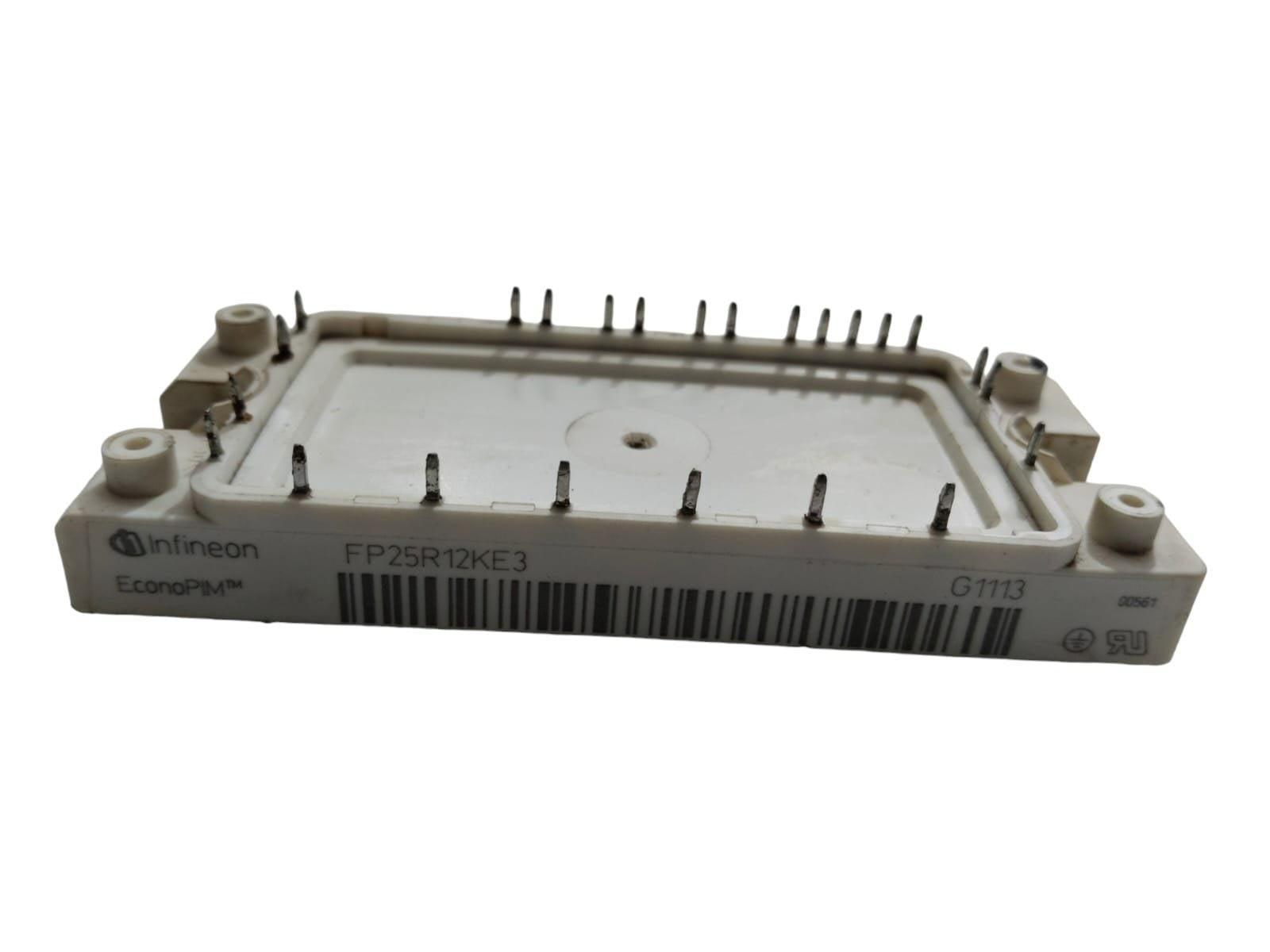

Infineon FP25R12KE3 IGBT Power Module
The Infineon FP25R12KE3 is a compact IGBT module built for efficiency, reliability, and long-term performance in demanding industrial and commercial power systems. With a 1200 V blocking voltage and robust construction in the EconoPIM2 package, this module is well-suited for applications such as motor drives, UPS systems, industrial converters, and photovoltaic inverters. Its trench/field-stop IGBT technology ensures low conduction and switching losses, making it a dependable solution for mid-power converter and inverter designs.
In practical operation, the FP25R12KE3 demonstrates strong thermal stability thanks to its copper baseplate and optimized design, which enables better heat distribution and reduced system losses. The low stray inductance layout minimizes electromagnetic interference, providing stable and efficient operation even under high switching frequencies. This module’s mechanical durability under thermal cycling and surge stresses ensures long service life, reducing downtime and operating costs in industrial environments.
The FP25R12KE3 is also designed with system integration in mind. Its reliable packaging supports straightforward mounting and secure electrical connections, allowing engineers to streamline installation and maintenance. Whether in renewable energy systems, motor control, or backup power applications, this Infineon module offers consistent performance, durability, and energy efficiency.
Key Specs
| Parameter | Typical / Rated Value |
|---|---|
| Manufacturer / Brand | Infineon Technologies |
| Part Number | FP25R12KE3 |
| Collector-Emitter Voltage (V<sub>CE</sub>) | 1200 V |
| Continuous Collector Current (I<sub>C</sub>) | 25 A (at specified Tc, see datasheet) |
| Collector-Emitter Saturation Voltage (V<sub>CE(sat)</sub>) | ~1.7 V (typical) |
| Power Dissipation (P<sub>D</sub>) | ~150 W (package dependent) |
| Package | EconoPIM2, chassis mount with copper baseplate |
| Junction Temperature (T<sub>j</sub>) | Up to +125 °C |
| Typical Applications | Motor drives, UPS, industrial converters, PV inverters |
For more detailed information, characteristic curves, thermal resistance, and pin configuration, please refer to the official Infineon FP25R12KE3 Datasheet (PDF)
We dispatch all orders through Leopard Courier and TCS, while bulk or heavy shipments are sent via cargo (bilty) for safer handling and better rates. Standard delivery time is 2–3 working days for both courier and cargo deliveries, depending on your location. Orders are dispatched within 24 hours after payment confirmation, and the tracking number is shared on WhatsApp once shipped. Shipping charges depend on parcel weight and destination, and may be waived for bulk or corporate orders. Please ensure your contact details and address are accurate to avoid delays. For urgent delivery or specific shipping requirements, contact us directly on WhatsApp at 0303 56888 44.
