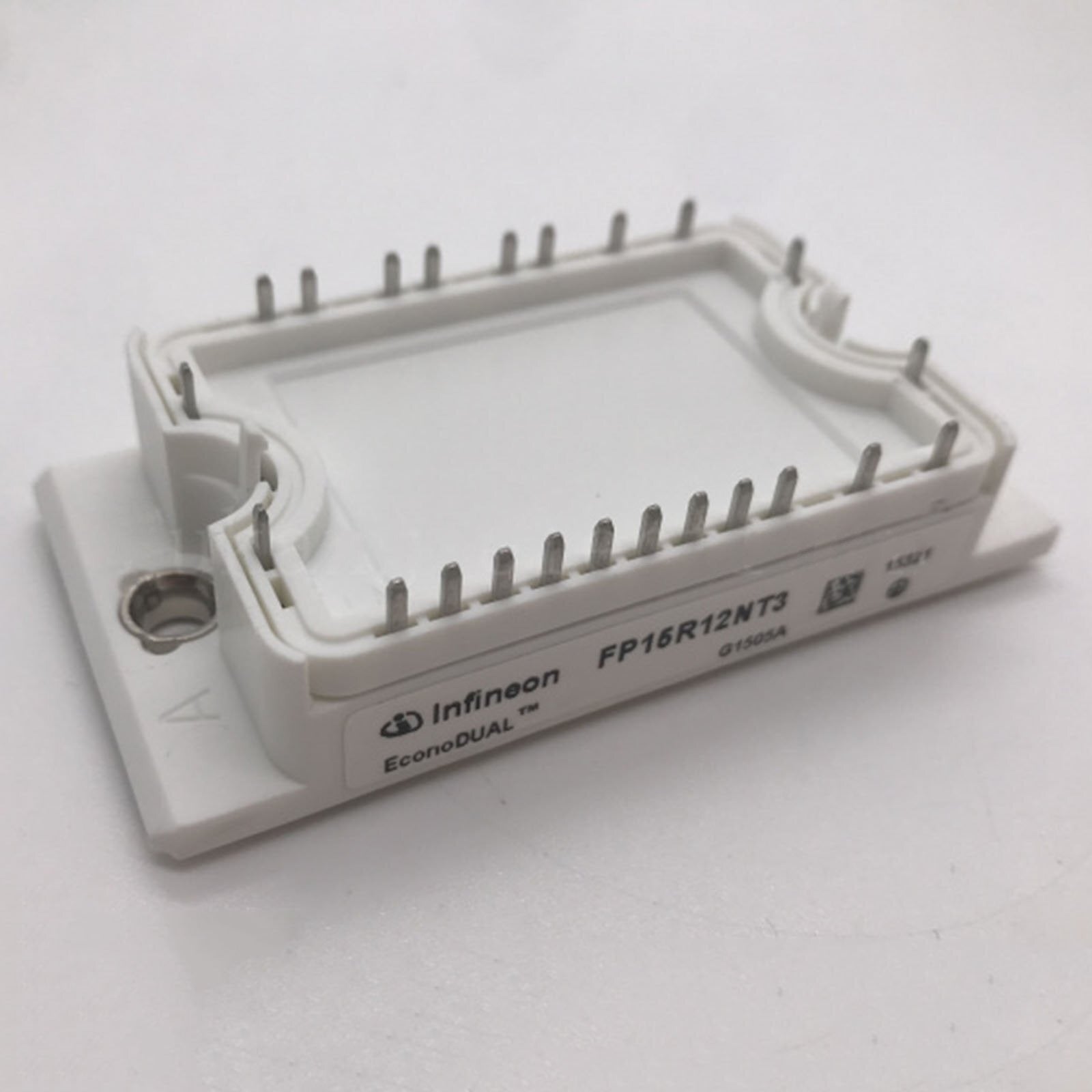

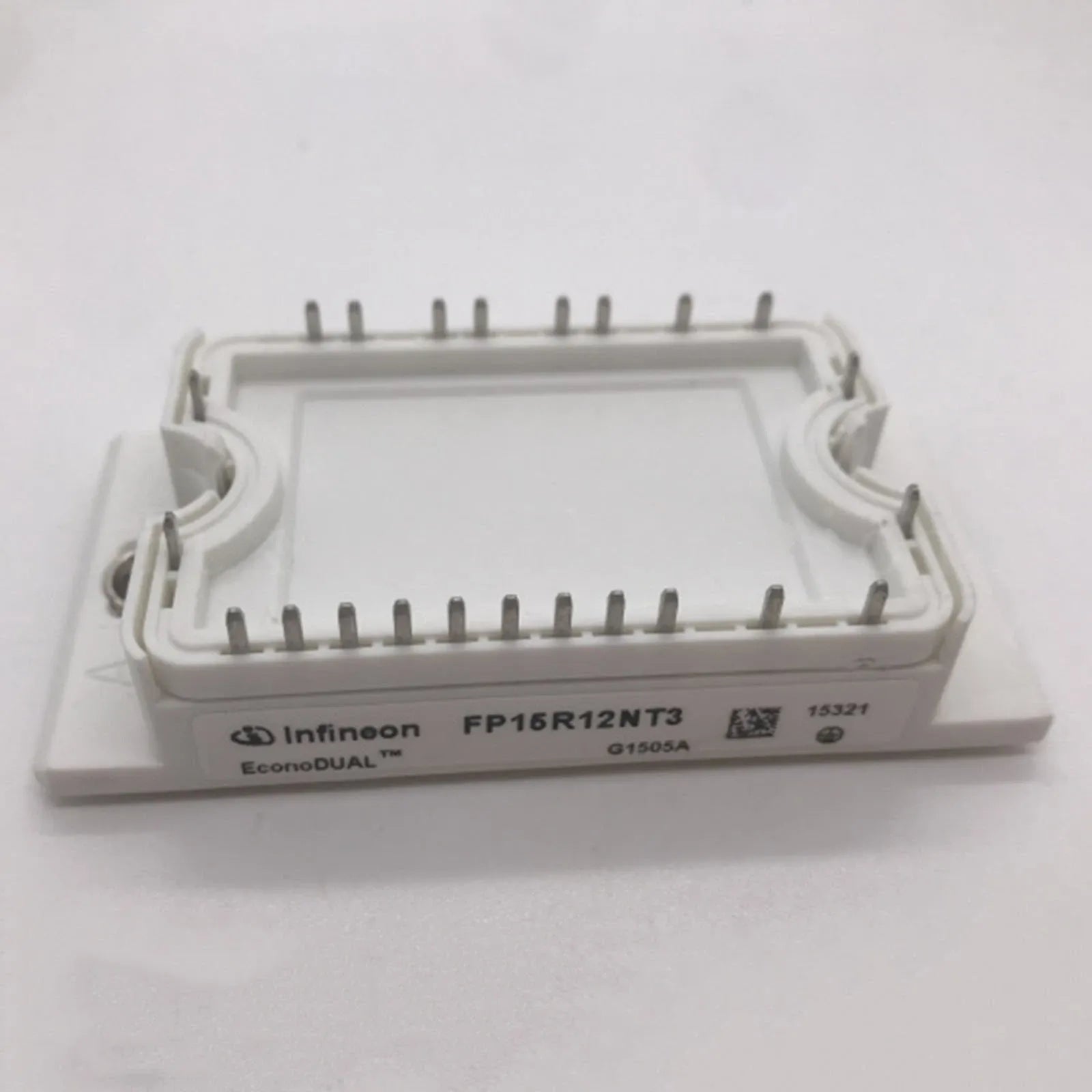

Infineon FP15R12NT3 1200V 25A IGBT Module
FP15R12NT3 is an Infineon IGBT module designed for mid-power industrial and commercial applications. With a 1200 V blocking voltage and 25 A continuous collector current rating at 25°C, it is suitable for converters, inverters, UPS systems, and motor drives. Its isolated case and compact design allow efficient mounting and thermal management while maintaining reliable electrical operation.
The module supports stable switching performance with a typical saturation voltage of 2.15 V and fast switching characteristics that limit conduction and switching losses. Its defined turn-on and turn-off times make it adaptable to a range of power electronics designs, supporting higher switching frequencies without excessive energy dissipation. These electrical features help ensure consistent performance across varying load conditions.
The FP15R12NT3 also provides durability with an operating temperature capability up to 150°C and a mechanically secure flange/stud mount package. Its isolated housing enhances safety and simplifies system integration, making it appropriate for environments that demand long-term, dependable operation. For precise technical details, refer to the official Infineon datasheet linked below.
Key Specifications of FP15R12NT3
| Parameter | Value |
|---|---|
| Manufacturer | Infineon |
| Part number | FP15R12NT3 |
| Collector-Emitter Voltage (V<sub>CES</sub>) | 1200 V |
| Continuous Collector Current (I<sub>C</sub>) @ 25°C | 25 A |
| V<sub>CE(sat)</sub> (typical) | ~2.15 V |
| Turn-on time (t<sub>on</sub>) | 85 ns |
| Turn-off time (t<sub>off</sub>) | 650 ns |
| Power Dissipation (P<sub>D</sub>) | 105 W |
| Gate-Emitter Voltage (V<sub>GE</sub> max) | ±20 V |
| Operating Temperature (T<sub>j</sub>) | up to +150 °C |
| Package / Mounting | EconoPIM, flange/stud mount, isolated case |
For more detailed information, please refer to the Infineon datasheet:
Infineon FP15R12NT3 Datasheet
