Infineon FP15R06W1E3

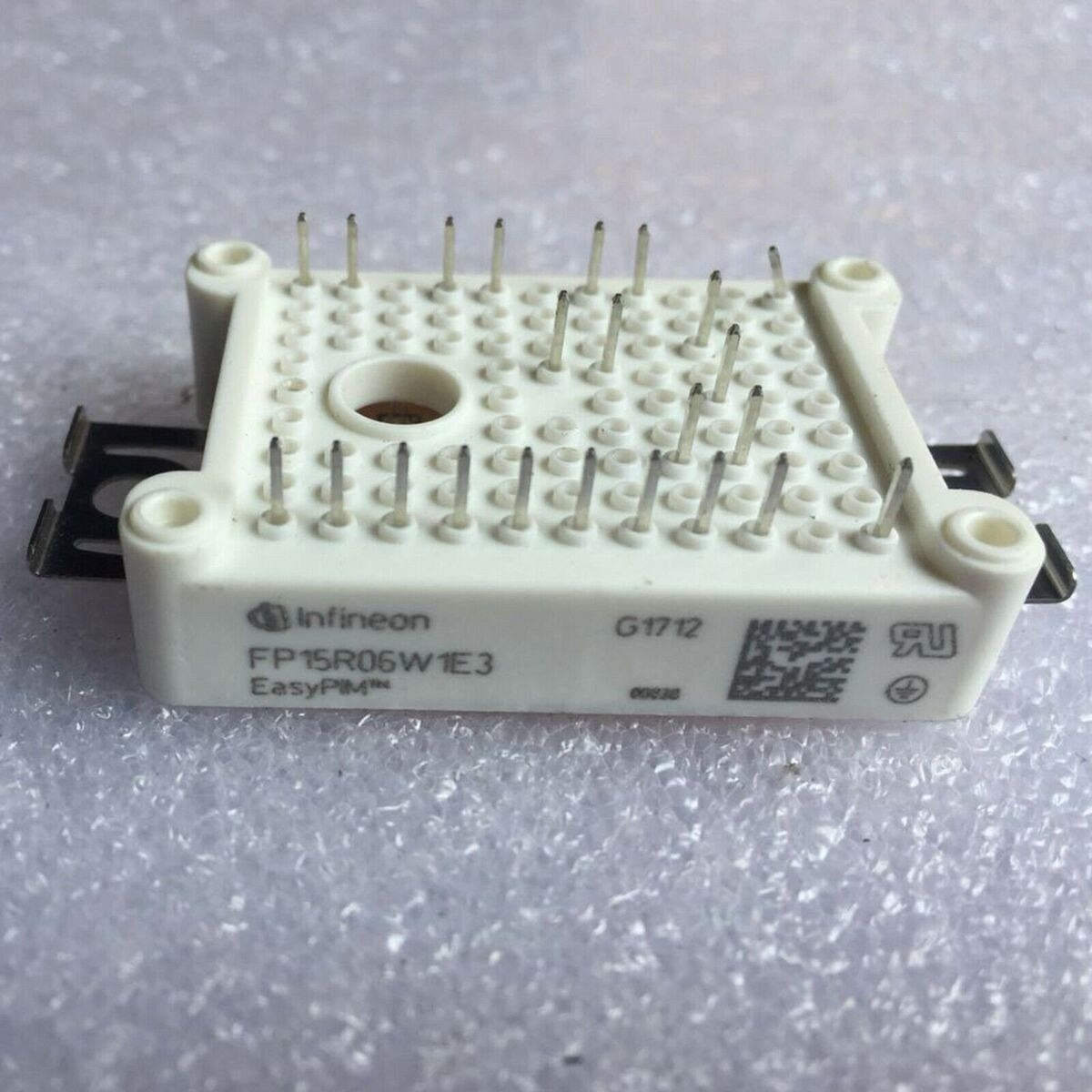

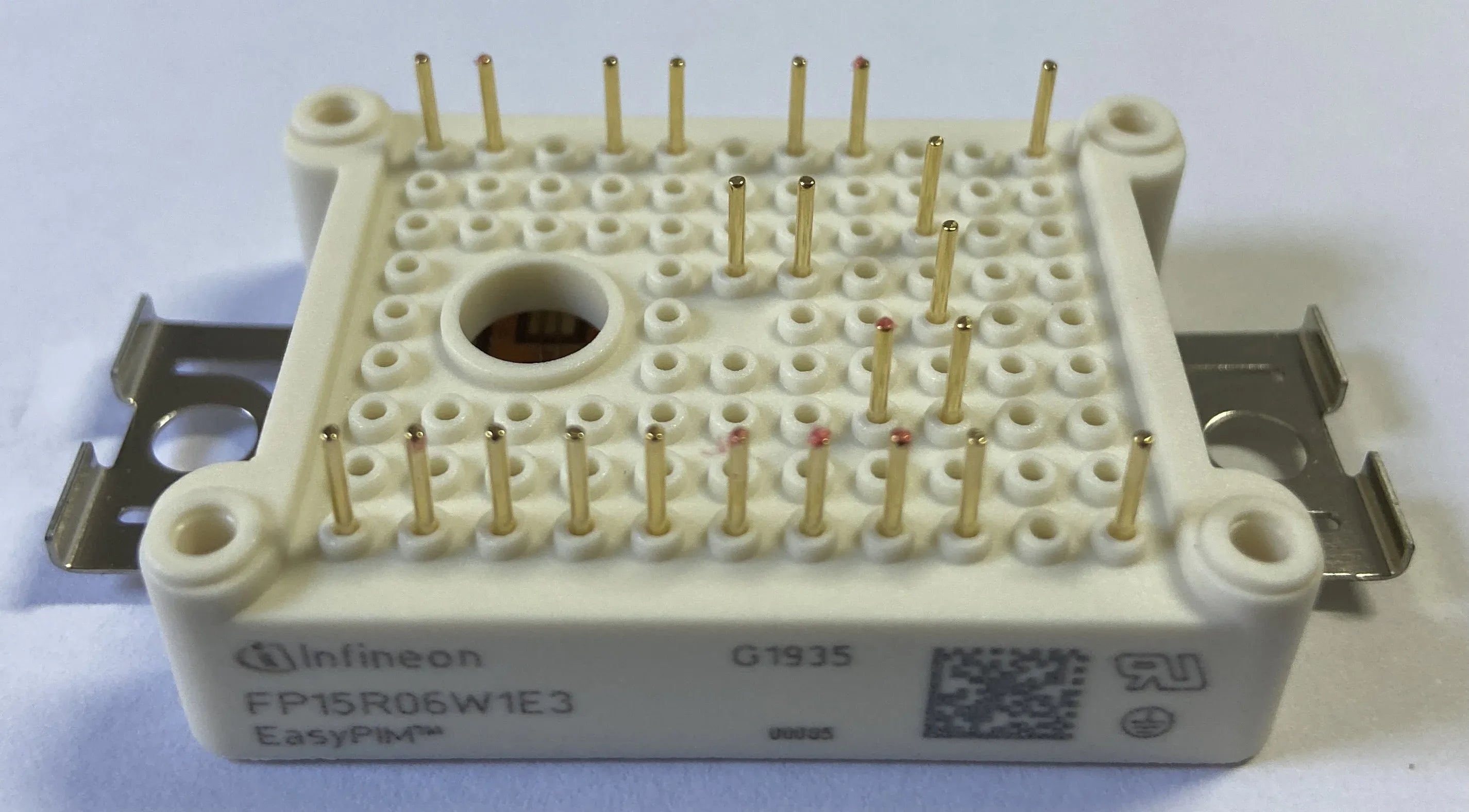

FP15R06W1E3
The FP15R06W1E3 is an IGBT module from Infineon Technologies designed for reliable performance in industrial applications. It uses Trench/Fieldstop IGBT3 technology, providing low switching losses and a collector-emitter saturation voltage (VCEsat) with a positive temperature coefficient, ensuring consistent operation across a wide temperature range. Its EasyPIM™ 1B package allows for straightforward integration into motor drives, inverters, and HVAC systems.
This module features low thermal resistance through its Al2O3 substrate, which supports efficient heat dissipation and stable operation over time. With a maximum collector-emitter voltage (VCE) of 600V and a continuous collector current (IC) of 22A at 25°C, the FP15R06W1E3 is suitable for high-power applications. The PressFIT contact technology ensures secure electrical connections in industrial environments.
The FP15R06W1E3 is suitable for motor control systems, HVAC units, and other industrial power electronics applications that require reliable efficiency and compact design. Its specifications support consistent performance and long-term operation.
Key Specifications
| Feature | Specification |
|---|---|
| Maximum Collector-Emitter Voltage (VCE) | 600 V |
| Continuous Collector Current (IC) at 25°C | 22 A |
| Collector-Emitter Saturation Voltage (VCEsat) | 1.55 V |
| Power Dissipation (Pd) | 81 W |
| Operating Temperature Range | -40°C to +150°C |
| Package Type | EasyPIM™ 1B |
| Contact Technology | PressFIT |
| Substrate Material | Al2O3 |
| Technology | Trench/Fieldstop IGBT3 |
| Gate-Emitter Leakage Current | 400 nA |
| Maximum Gate-Emitter Voltage | 20 V |
For more detailed information, please refer to the Infineon FP15R06W1E3 datasheet.
