Infineon FF300R12KE3 IGBT Module
Regular price
Rs.0.00

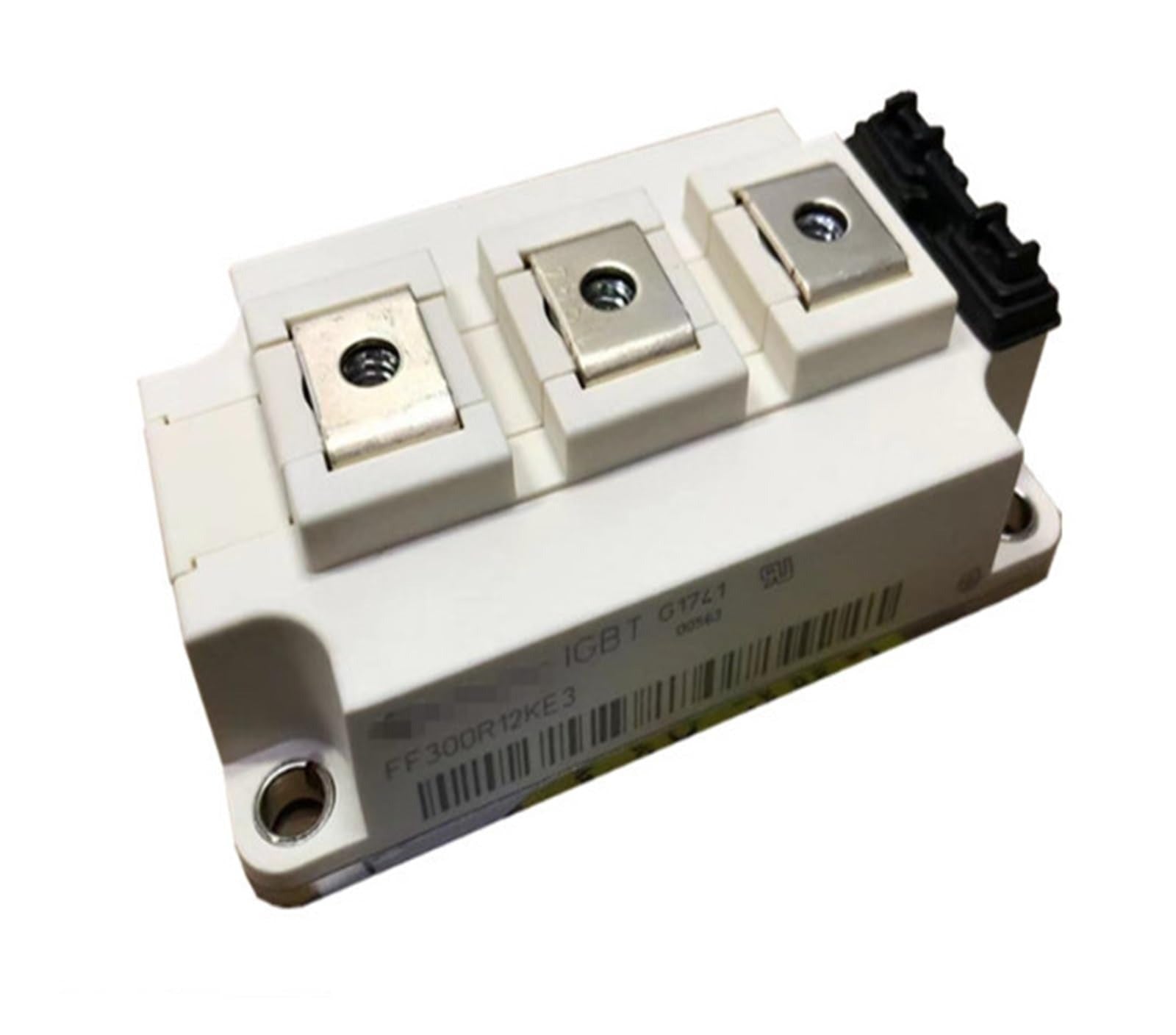

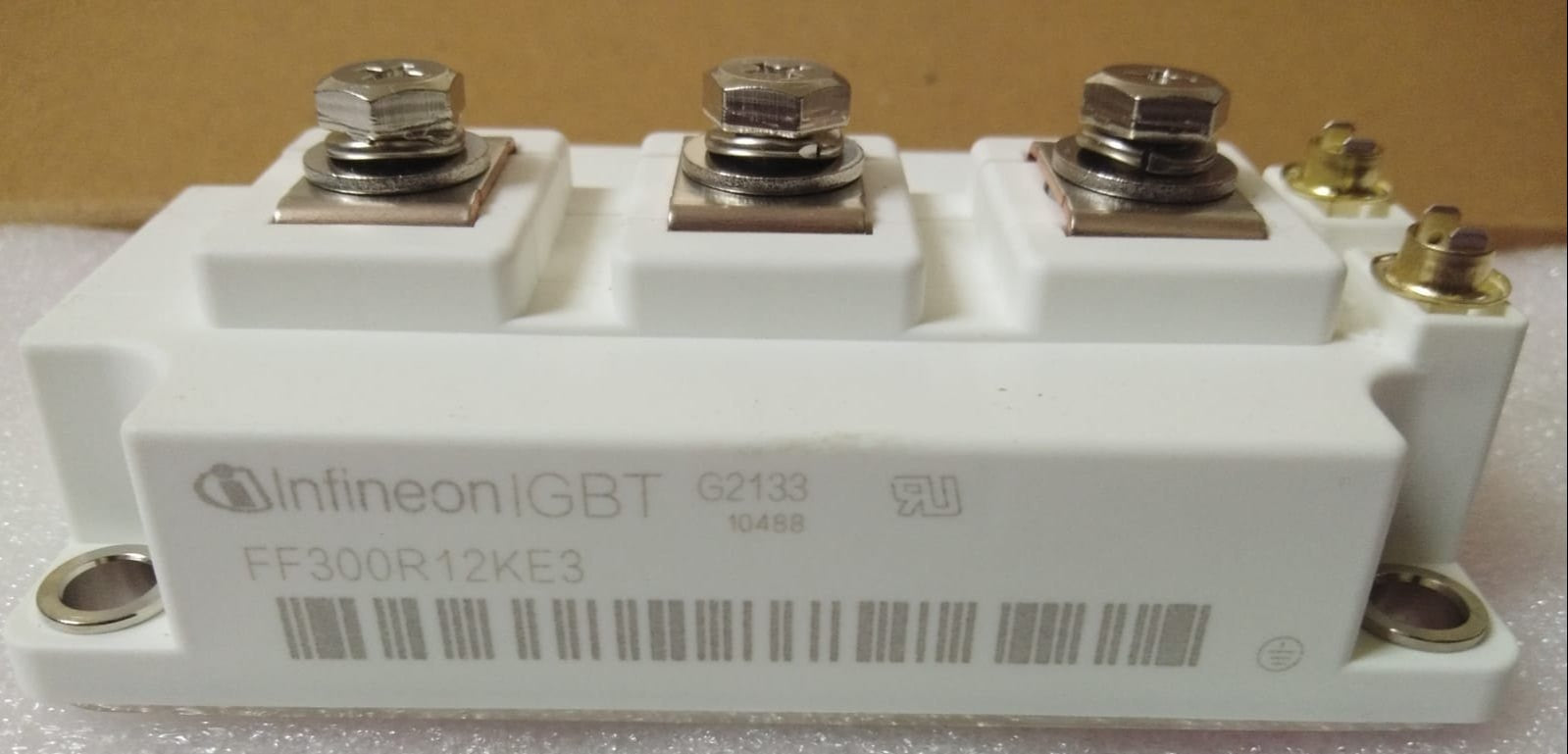

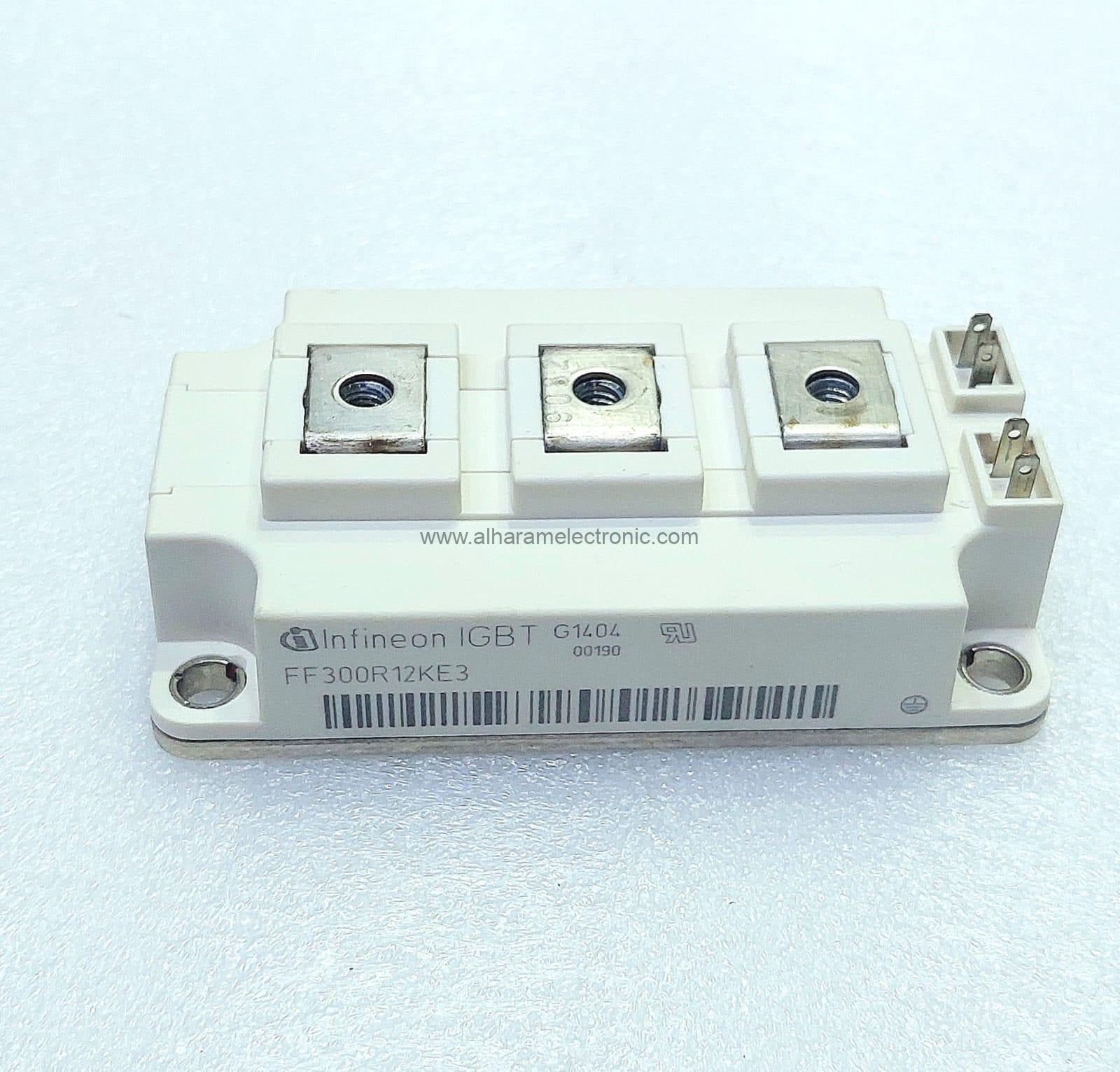

Infineon FF300R12KE3 IGBT Module
The Infineon FF300R12KE3 is a high-performance IGBT (Insulated Gate Bipolar Transistor) module designed to meet the demanding requirements of industrial power electronics. With a collector-emitter voltage rating of 1200V and a continuous collector current of 300A, this module offers exceptional performance and reliability for high-power applications. It is particularly well-suited for use in motor drives, uninterruptible power supplies (UPS), renewable energy systems, and welding equipment.
This module features Infineon's advanced Trenchstop IGBT3 technology, which provides low conduction losses and high switching speeds, enhancing overall system efficiency. The integrated high-efficiency diode further reduces switching losses and improves thermal performance. The robust IS5a (62mm)-7 package ensures reliable operation in various industrial environments, making it a versatile choice for engineers seeking a balance between performance and durability.
The FF300R12KE3 offers several benefits, including improved efficiency, reduced energy consumption, and long-term reliability. Its compact design and screw-mounting style facilitate easy integration into existing systems. Whether used in industrial machinery, power conversion systems, or renewable energy applications, this IGBT module delivers the performance and durability required for demanding environments.
Key Specifications:
| Specification | Value |
|---|---|
| Collector-Emitter Voltage | 1200V |
| Continuous Collector Current | 300A |
| Pulsed Collector Current | 600A |
| Power Dissipation | 1.45kW |
| Package Type | IS5a (62mm)-7 |
| Operating Temperature Range | -40°C to +125°C |
| Gate-Emitter Voltage | ±20V |
| Mounting Style | Screw Mount |
| Weight | 337g |
For more detailed information, please refer to the Infineon FF300R12KE3 datasheet.
