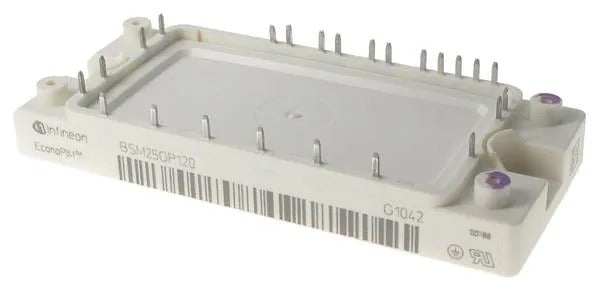

BSM25GP120 — 1200 V IGBT Power Module
The BSM25GP120 is a 1200 V IGBT module designed for use in industrial and commercial power electronics. It is built in an EconoPIM2 package and provides reliable switching performance for medium-power inverters, UPS systems, motor drives, and power supplies. The module integrates IGBTs and freewheeling diodes, supporting inverter and brake-chopper functions in a compact form.
This module is specified for a nominal DC collector current of 25 A at Tc = 80 °C and up to 45 A at Tc = 25 °C. With a total power dissipation capability of 230 W and an operating temperature range from −40 °C to +125 °C, it ensures consistent performance under continuous electrical and thermal stress. The diode characteristics allow handling of surge and regenerative currents, making it suitable for demanding operating conditions.
The datasheet provides current ratings for both steady-state and peak operation, allowing accurate system design for inverter stages, motor controllers, and UPS applications. Its isolated case and EconoPIM2 housing simplify mounting and thermal management.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | Infineon (EUPEC) |
| Part number | BSM25GP120 |
| Collector-Emitter Voltage (VCES) | 1200 V |
| DC Collector Current (Tc = 25 °C) | 45 A |
| DC Collector Current (Tc = 80 °C) | 25 A |
| Total Power Dissipation (Tc = 25 °C) | 230 W |
| Repetitive Peak Collector Current (tP = 1 ms, Tc = 80 °C) | 50 A |
| Diode DC Forward Current (Tc = 80 °C) | 25 A |
| Diode Surge Forward Current (tp = 10 ms, Tvj = 150 °C) | 230 A |
| Gate-Emitter Peak Voltage | ±20 V |
| Operating Temperature Range | −40 °C to +125 °C |
| Package / Case | EconoPIM2, isolated case |
| Typical applications | Inverters, motor drives, UPS, brake-choppers, industrial power supplies |
For more detailed information, please refer to the official Infineon datasheet Infineon BSM25GP120 Datasheet (PDF).
