Infineon BSM150GB170DLC 1700V 150A IGBT Module
BSM150GB170DLC

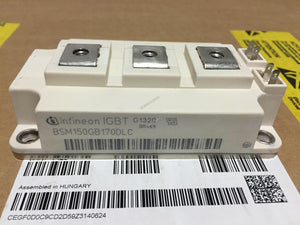

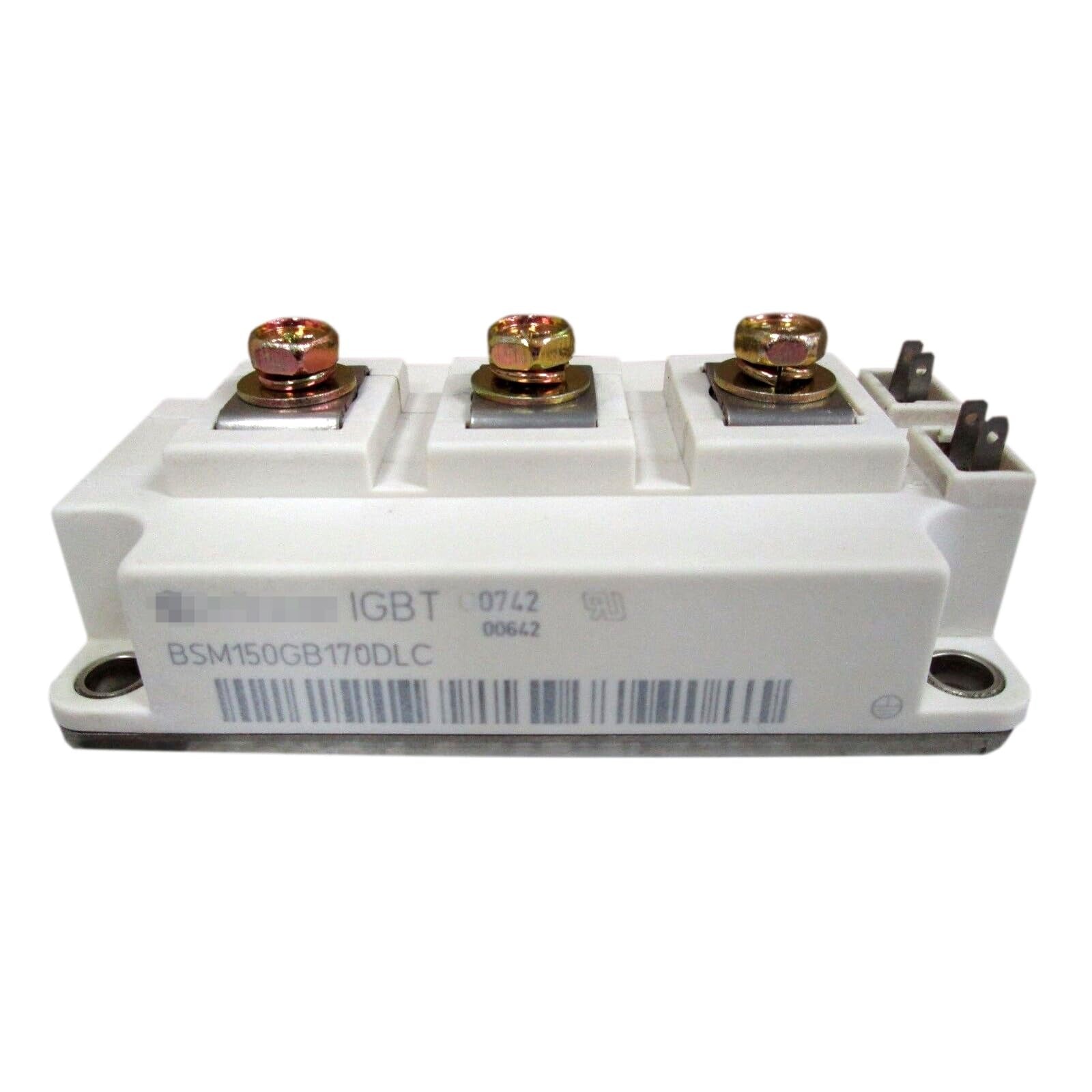

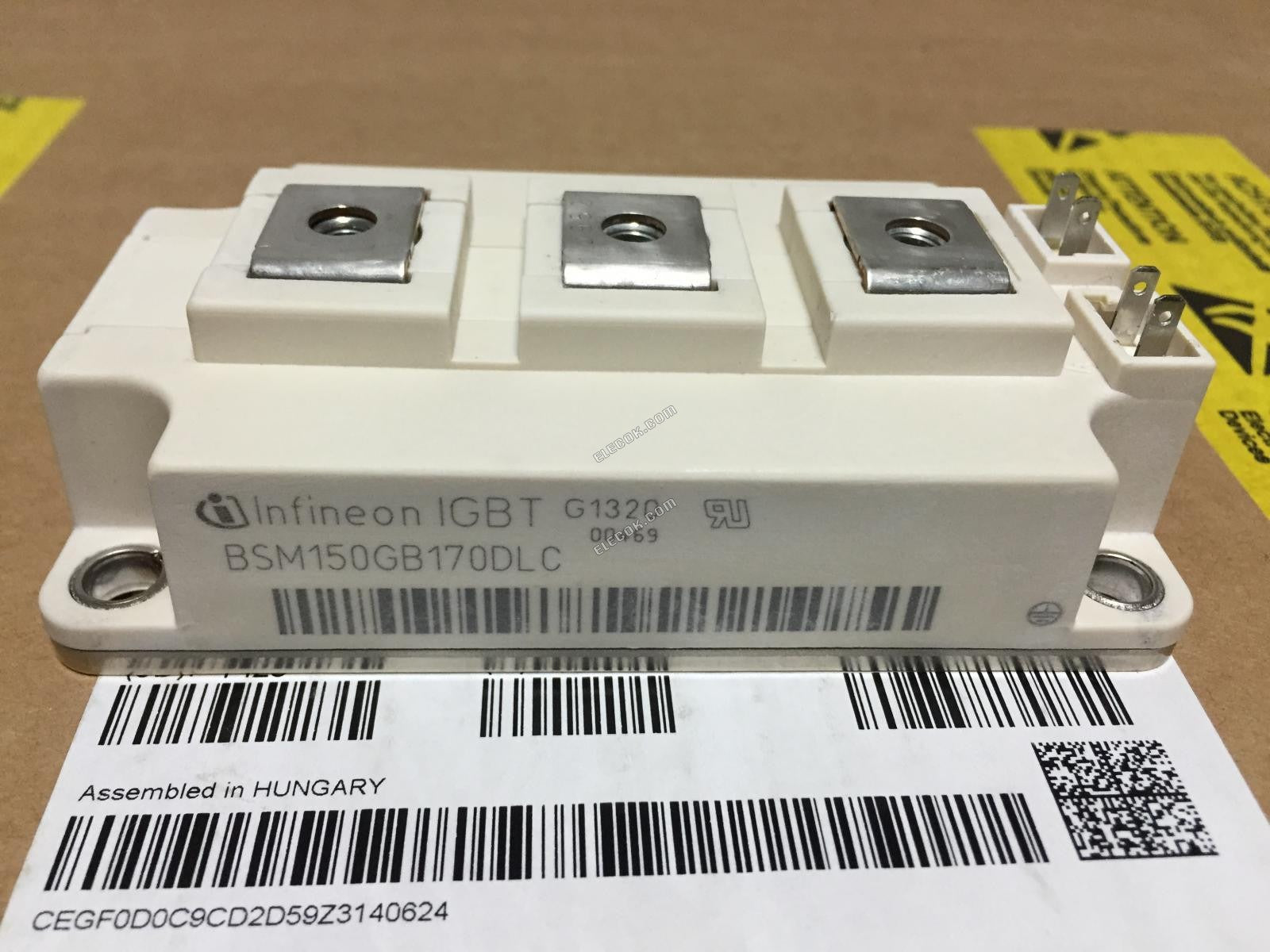

The BSM150GB170DLC is a dual half-bridge IGBT module from Infineon Technologies, with a collector-emitter voltage of 1700 V and a nominal collector current of 150 A. It is suitable for motor drives, UPS systems, and renewable energy inverters. The 62 mm screw-mount package allows for straightforward integration and stable operation under high-load conditions.
The module has low conduction losses and efficient switching, reducing heat generation. Its thermal design supports continuous operation over a wide temperature range, ensuring reliable performance in various industrial applications.
The BSM150GB170DLC meets the requirements of high-voltage converters and industrial drives, offering consistent current capability and standard mounting dimensions for easy system integration. For detailed specifications, consult the official datasheet.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Infineon |
| Module Type | Dual Half-Bridge |
| Collector-Emitter Voltage (V_CEO) | 1700 V |
| Nominal Collector Current (I_C) | 150 A |
| Maximum Collector Current (I_C max) | 300 A |
| Collector-Emitter Saturation Voltage (V_CEsat) | 2.6 V |
| Power Dissipation (P_D) | 1.25 kW |
| Package Type | 62 mm |
| Mounting Style | Screw Mount |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | −40 °C |
| Gate-Emitter Voltage (V_GE) | ±20 V |
| Gate-Emitter Leakage Current | 200 nA |
For more detailed information, please refer to the Infineon datasheet: Infineon BSM150GB170DLC Datasheet.
