IFS200B12N3E4P_B37 1200V 200A IGBT Module - Infineon
IFS200B12N3E4P_B37 – IGBT Module for Industrial Applications

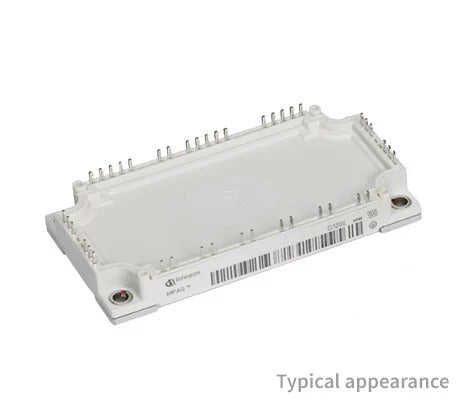

The Infineon IFS200B12N3E4P_B37 is an IGBT module designed for power electronics applications. It features MIPAQâ„¢ base technology and integrates six IGBTs and six diodes in an EconoPACKâ„¢ 3 housing, providing compact design and efficient thermal performance. The module is suitable for motor drives, industrial inverters, and renewable energy systems.
The module includes built-in current sense shunts for monitoring current levels, which supports system protection and control. Its design maintains high creepage and clearance distances, meeting insulation requirements and supporting reliable operation in industrial environments.
With a maximum blocking voltage of 1200V and a rated current of 200A, the IFS200B12N3E4P_B37 supports a range of power levels. It is RoHS compliant and UL/CSA certified, suitable for industrial and commercial applications.
Key Specifications
| Feature | Specification |
|---|---|
| Part Number | IFS200B12N3E4P_B37 |
| Technology | MIPAQâ„¢ base |
| Housing | EconoPACKâ„¢ 3 |
| Configuration | Sixpack |
| Current Sense | Integrated shunt resistors |
| Blocking Voltage | 1200 V |
| Rated Current | 200 A |
| Package Dimensions | 122 mm x 62.5 mm |
| Insulation Class | Class F |
| Standards Compliance | RoHS, UL/CSA |
For more detailed information, please refer to the Infineon datasheet.
