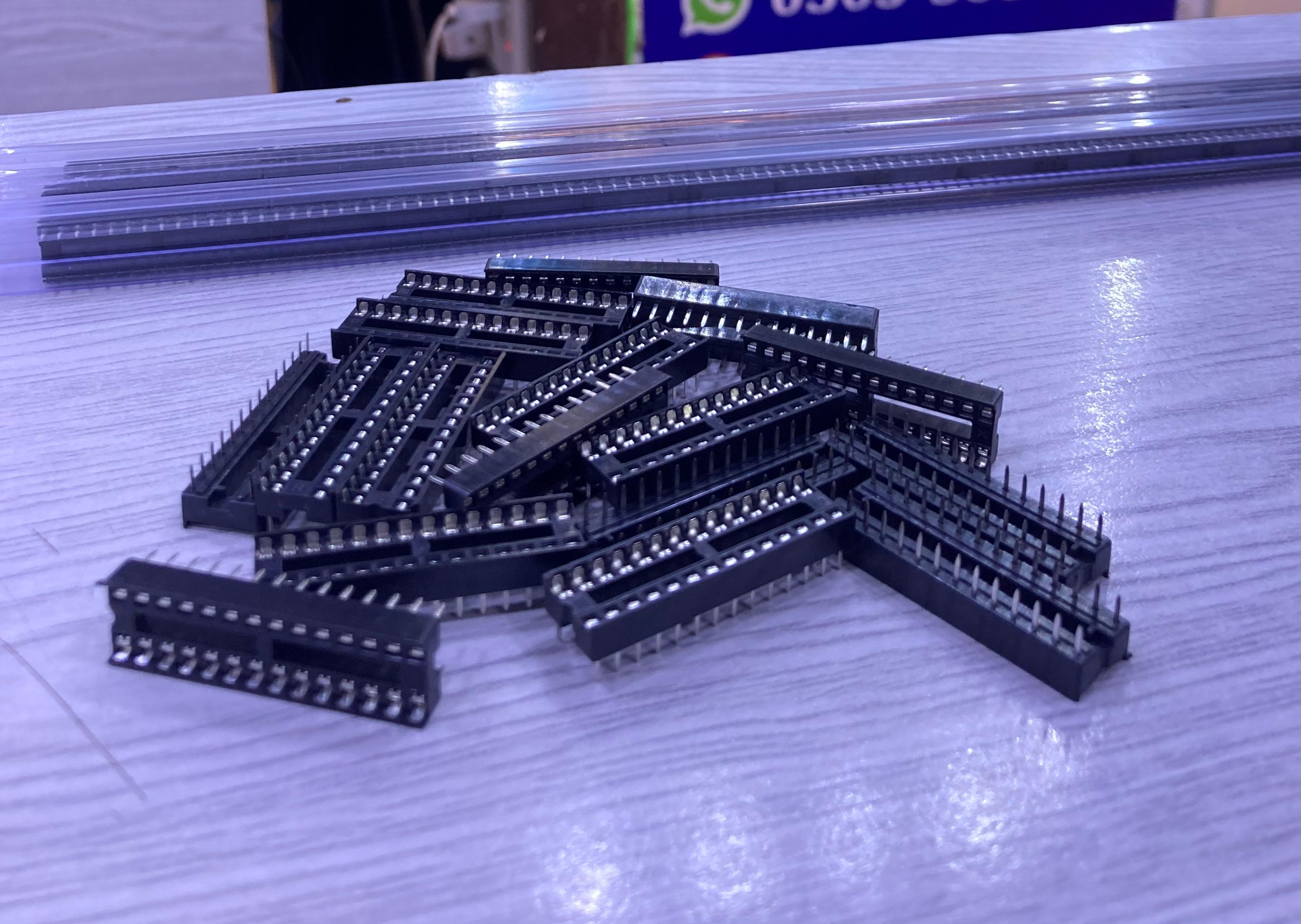

IC Base Socket – DIP 8, 14, 16, 28 Pin

IC Base Socket – DIP 8, 14, 16, 28 Pin

The IC Base Socket is a reliable and reusable connector designed for Dual In-Line Package (DIP) integrated circuits. Available in 8-pin, 14-pin, 16-pin, and 28-pin configurations, these sockets offer secure mounting and easy replacement of ICs without soldering directly to the PCB. The sockets help protect ICs from heat damage during soldering and improve repairability in prototyping and production environments.

Each IC base socket is made from high-quality thermoplastic material and features tin- or gold-plated contacts for enhanced conductivity and corrosion resistance. These sockets are commonly used in microcontroller circuits, analog/digital IC testing, and breadboard-to-PCB transitions. Their standard 2.54mm pitch ensures compatibility with most DIP ICs and standard PCBs.

This product is essential for electronics designers and hobbyists working with DIP-format components and offers an organized way to install and replace ICs safely and efficiently.

Key Specs

Type: DIP IC Base Socket Pin Options: 8, 14, 16, 28 Pins Pitch: 2.54mm Standard Contact Material: Tin or Gold-Plated Mounting: Through-Hole Applications: Prototyping, IC Testing, Microcontroller Boards, DIY Electronics Compliance: RoHS
