HXN50-P Current Transducer - 50A Hall Effect Sensor
Regular price
Rs.0.00
HXN50-P

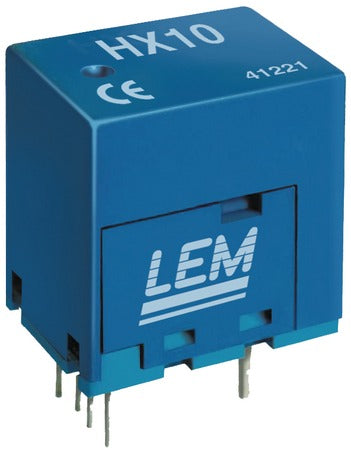

The LEM HXN50-P is a precision current transducer designed for accurate current measurement in industrial and commercial power electronics. Using open-loop Hall effect technology, it provides galvanic isolation between the primary and secondary circuits, ensuring safe operation and minimal interference. With a nominal current of 50 ARMS and a measuring range up to ±150 A, it is suitable for applications such as AC variable speed drives, DC motor drives, uninterruptible power supplies (UPS), and switched-mode power supplies (SMPS).
The HXN50-P operates with a dual supply voltage of ±12 to ±15 V and provides an analog voltage output linear with the measured current. Its output resistance is <50 Ω, and recommended load is ≥10 kΩ. The transducer maintains accuracy within ±1% of nominal current and a linearity error of ±1% of nominal current. It functions reliably across an ambient temperature range of −25°C to +85°C, making it suitable for a wide variety of environmental conditions.
The device meets reinforced insulation standards up to 300 V, with partial discharge extinction voltage ≥1 kV and impulse withstand voltage of 6 kV. Its compact design with standard PCB mounting allows for easy integration into power electronic systems. The HXN50-P’s verified performance characteristics support consistent system monitoring and control in industrial applications.
Key Specs
| Specification | Value |
|---|---|
| Nominal Current (IPN) | 50 ARMS |
| Measuring Range (IPM) | ±150 A |
| Output Voltage (Uout) | ±4 V (RL ≥10 kΩ, TA=25°C) |
| Supply Voltage (UC) | ±12 to ±15 V |
| Current Consumption (IC) | < ±15 mA |
| Accuracy (TA = 25°C) | ±1% of IPN |
| Linearity Error (εL) | ±1% of IPN |
| Delay to 90% (td) | ≤ 3 µs |
| Bandwidth (-3 dB) | ≈ 50 kHz |
| Operating Temperature | −25°C to +85°C |
| Insulation Voltage | Reinforced 300 V |
| Partial Discharge Voltage | ≥1 kV |
| Impulse Withstand | 6 kV (1.2/50 µs) |
| Mounting Type | PCB |
| Mass | 8 g |
For more detailed information, please refer to the LEM HXN50-P datasheet.
