H3150ZE Solid State Relay

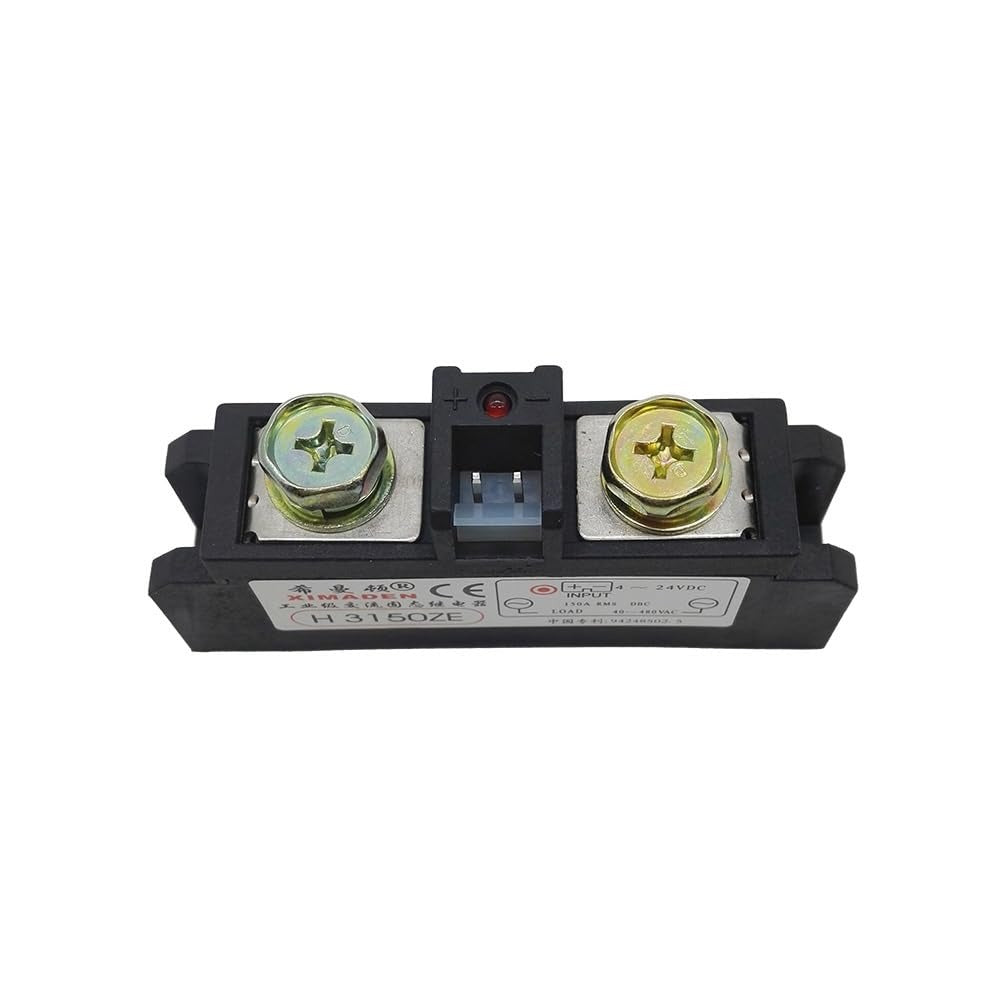

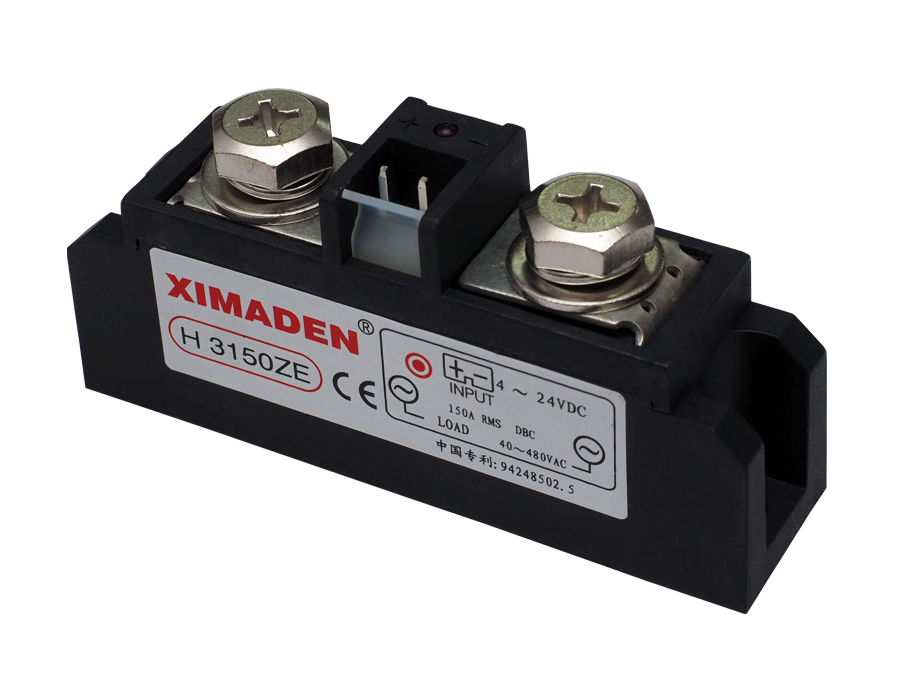

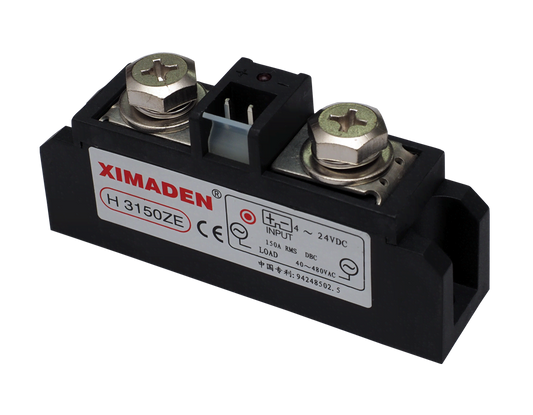

H3150ZE — High-Current Solid State Relay
The H3150ZE solid-state relay from XIMADEN is designed for use in industrial and commercial power-control applications. With a continuous current capacity of 150 A and a load voltage range of 40–430 V AC, this relay provides reliable switching for resistive and inductive loads, including motor drives, heater systems, power panels, and automation equipment.
The H3150ZE operates with low on-state voltage drop (<1.5 V) and minimal off-state leakage (<3 mA), supporting efficient power management while reducing heat generation. Its solid-state structure improves service life compared with electromechanical relays, and an LED status indicator along with screw-mount installation makes it practical for integration into control systems.
It features a wide control input range of 4–24 V DC with a drive current above 8 mA, and zero-cross switching to minimize inrush current and electromagnetic interference. The relay functions across ambient temperatures from −30 °C to +50 °C and is constructed in a compact form suitable for panel or rack installation.
Key Specs
| Specification | Value |
|---|---|
| Manufacturer / Brand | XIMADEN |
| Model | H3150ZE |
| Rated load current | 150 A |
| Load voltage range | 40–430 V AC |
| Control voltage | 4–24 V DC |
| Control input current | > 8 mA |
| Trigger mode | Zero-cross type |
| On-state voltage | < 1.5 V |
| Off-state leakage current | < 3 mA |
| Operating temperature | −30 °C to +50 °C |
| Indicator | LED |
| Mounting | Screw mounting |
| Dimensions / Weight | ~92 × 23 × 45 mm; ~1 kg |
For more detailed information, please refer to the XIMADEN datasheet: H3150ZE Datasheet.
