GT75PI120T6HM 1200V 150A IGBT Module
Guarantee Safe Checkout
GT75PI120T6HM 1200V 150A IGBT Module

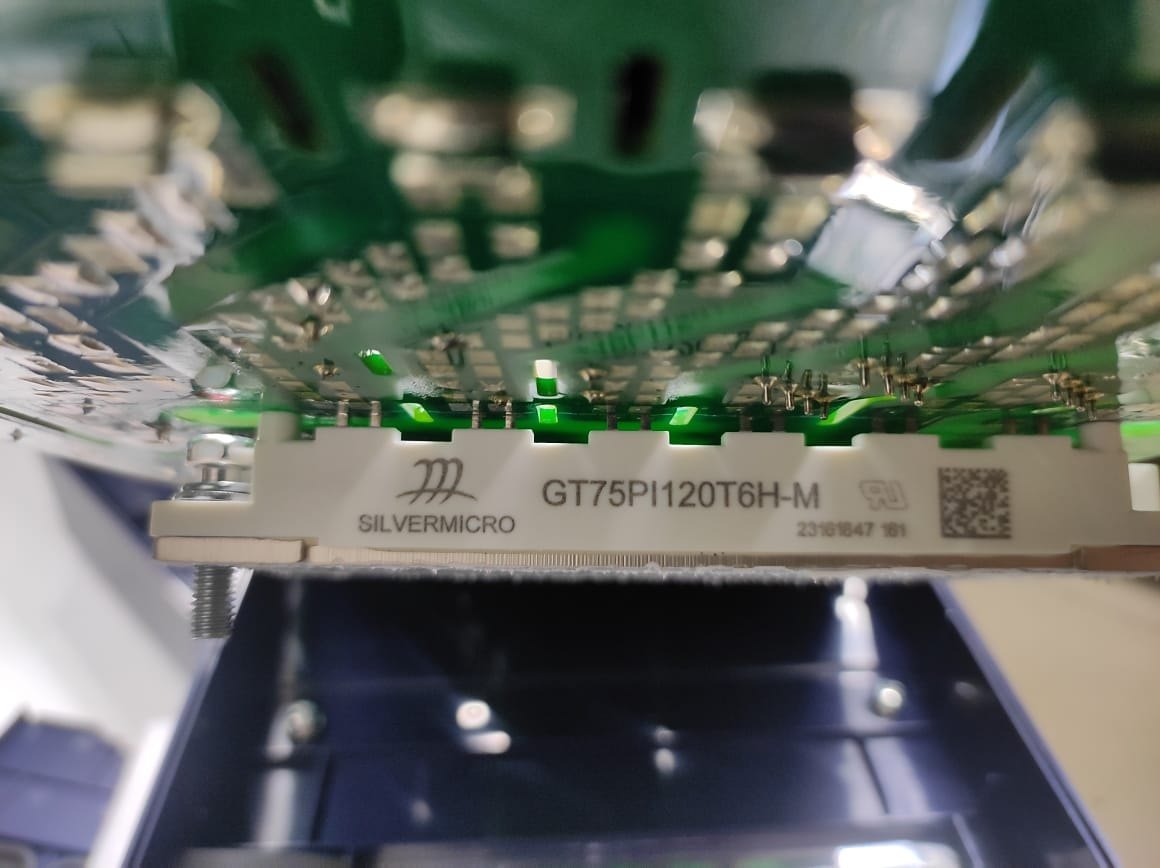

GT75PI120T6HM IGBT Module
The GT75PI120T6HM is a high-voltage IGBT module tailored for demanding industrial and commercial power electronics. Engineered with a likely block voltage of 1200 V and designed for substantial collector current, this module aims to offer strong switching performance and durable operation under heavy loads. Ideal for systems needing reliable efficiency, it delivers excellent thermal stability and low conduction losses.
Built for reliability, the GT75PI120T6HM module presumably includes features found in similar GT-series modules: low saturation voltage (V<sub>CE(sat)</sub>), short-circuit ability, rugged packaging (likely DBC or similar heat-sink mounting base), and strong performance over wide temperature ranges. With careful layout and cooling, it should serve well in applications where durability is critical and downtime is unacceptable.
Typical applications include industrial inverters, motor drives, UPS units, servo amplifiers, and power converters. Its design supports continuous operation, high switching frequencies (with reasonable inductance), and fits commercial settings where power efficiency, thermal robustness, and component longevity are required.
Key Specs
| Specification | Value / Description (Estimate / Typical for GT-series) |
|---|---|
| Module Type | High-Voltage IGBT Module |
| Collector-Emitter Voltage | ~1200 V |
| Continuous Collector Current | (To be confirmed; likely in the high tens to hundreds of amps) |
| Pulsed / Peak Current Capability | (Short-pulse rating dependent on cooling & design) |
| Gate-Emitter Voltage | ±20 V type typical |
| Saturation Voltage V<sub>CE(sat)</sub> | Low, to reduce conduction losses |
| Operating Temperature Range | Around −40 °C up to +150 °C |
| Mounting / Package | Robust module, heat-sink/base-plate mount, likely DBC or isolated base |
| Switch-Off / Switch-On Times | Moderate switching speed, with emphasis on reducing switching losses |
| Thermal Performance | Good thermal dissipation, designed for high temperature operation |
| Robustness / Lifetime | Designed for long life under frequent switching & heavy load |
| Applications | Inverters, UPS, motor drives, power conversion, commercial power systems |
