GP4066D 600V 140A IGBT Module TO-247

GP4066D 600V 140A IGBT Module TO-247

Rs.450.00

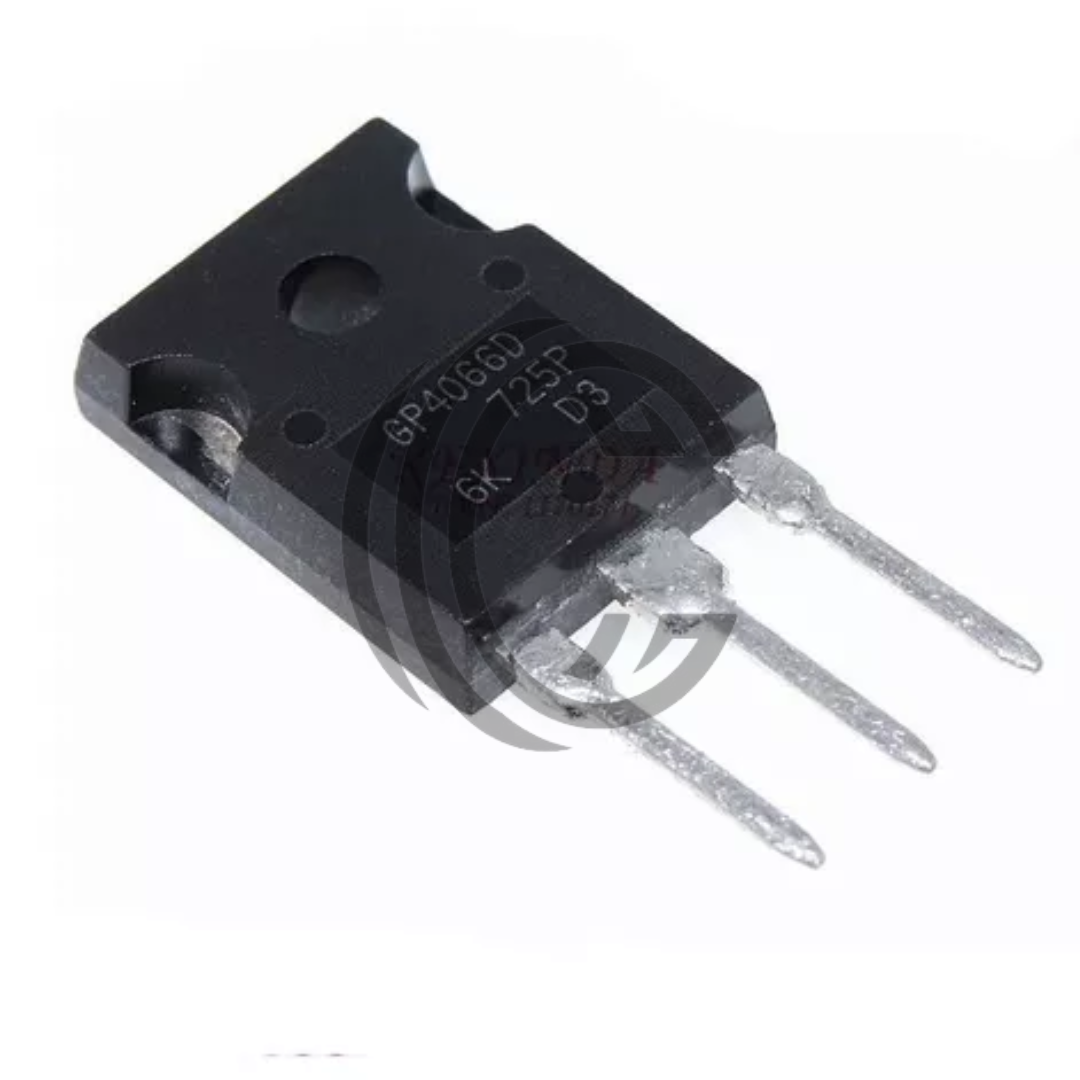

GP4066D 600V 140A IGBT Module – TO-247 Package

The GP4066D IGBT module is designed for efficient power switching in demanding industrial systems. With a voltage rating of 600V and a continuous current capacity of 140A, it offers dependable performance in motor drives, UPS systems, and renewable energy circuits. This device supports fast switching and reduced energy losses, making it suitable for high-frequency applications.

Housed in a TO-247 package, the module ensures excellent thermal management, supporting junction temperatures up to 175°C. Its integrated freewheeling diode and optimized gate characteristics contribute to reduced EMI and efficient circuit operation in medium-power environments. The GP4066D's versatility makes it a reliable component in automation, energy conversion, and control systems.

Key Specs – GP4066D IGBT Collector-Emitter Voltage (V\CES\): 600V Collector Current (I\C\): 140A Continuous Saturation Voltage: ~2.1V (typical at 75A) Switching Speed: Rise ~70ns / Fall ~200ns Power Dissipation: Up to 454W Junction Temperature: Max 175°C Package Type: TO-247 Gate Charge (Q\g\): Approx. 150nC Applications: Motor drives, UPS, industrial control, EV charging, energy systems Compliance: RoHS Compliant MOQ: 30 pieces
