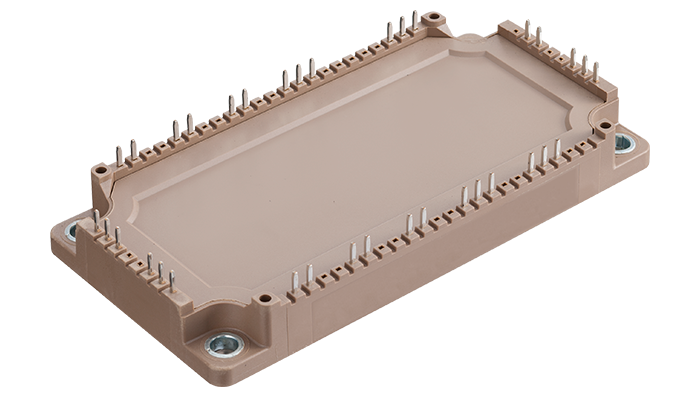

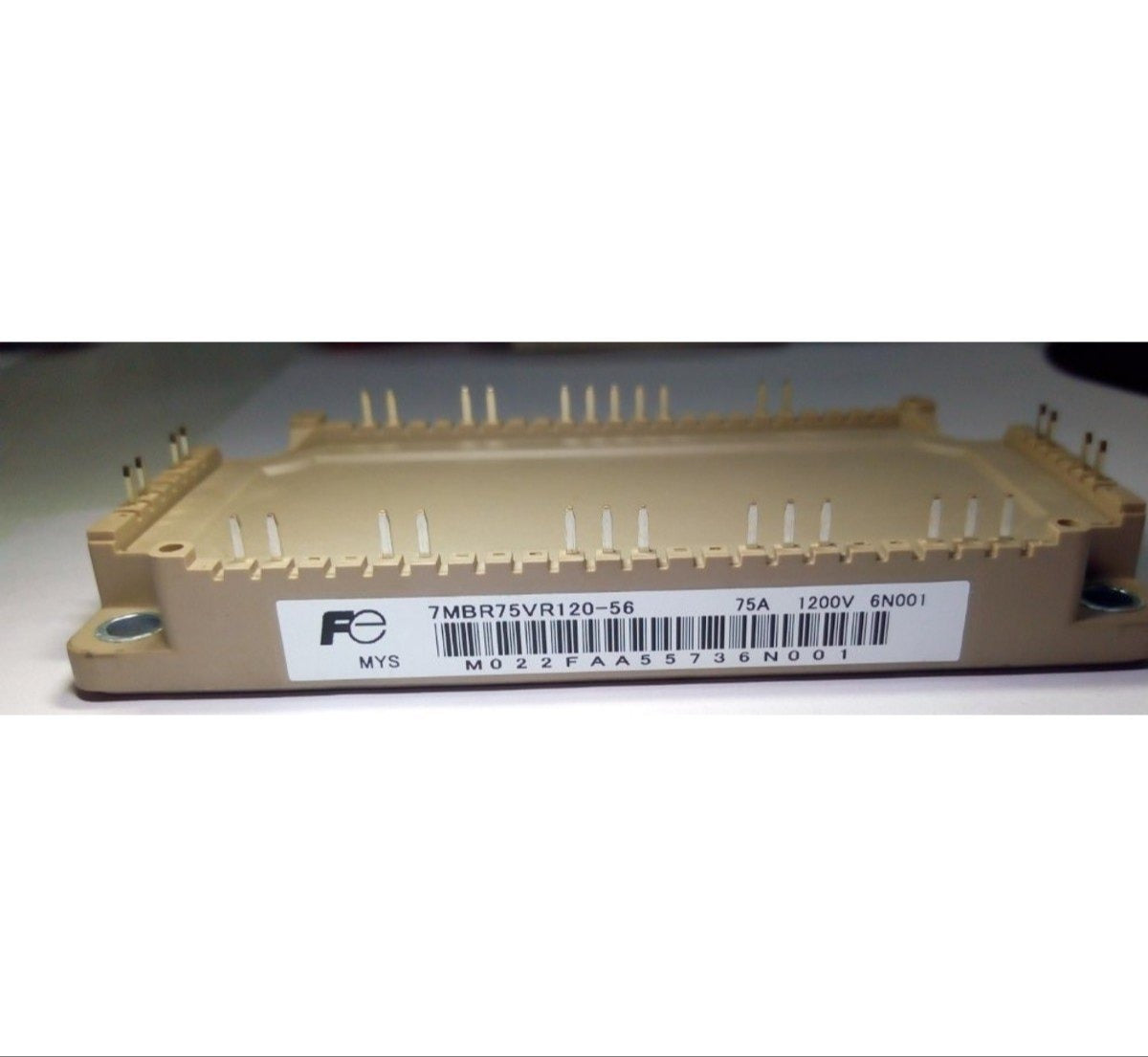

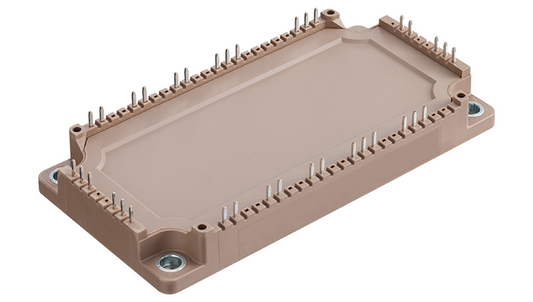

7MBR75VR120-56 IGBT Module
The 7MBR75VR120-56 is a robust IGBT (Insulated-Gate Bipolar Transistor) module engineered by Fuji Electric to meet the demanding requirements of modern power electronics applications. With a voltage rating of 1200V and a continuous current capacity of 75A, this module is designed to deliver exceptional performance in high-power circuits. Its compact M720 package ensures efficient thermal management and facilitates easy integration into various systems. The module's low saturation voltage (V_CE(sat)) contributes to reduced conduction losses, enhancing overall system efficiency.
Built to withstand harsh operating conditions, the 7MBR75VR120-56 boasts a maximum junction temperature of 175°C, allowing it to perform reliably in environments with elevated temperatures. This durability makes it suitable for industrial applications where equipment is subjected to continuous operation and thermal stress. The module's RoHS compliance further underscores its commitment to environmental responsibility, ensuring it meets global standards for hazardous substances.
In terms of applications, the 7MBR75VR120-56 is ideal for use in inverters, motor drives, uninterruptible power supplies (UPS), and other power conversion systems. Its ability to handle high currents and voltages with minimal losses makes it a preferred choice for both industrial and commercial sectors. Whether you're designing energy-efficient motor control systems or reliable power backup solutions, this module offers the performance and durability required to meet your needs.
Key Specifications
| Specification | Value |
|---|---|
| Voltage Rating (V_CE) | 1200V |
| Current Rating (I_C) | 75A |
| Package Type | M720 |
| Maximum Junction Temp. | 175°C |
| Operating Temp. Range | -40°C to 125°C |
| Conduction Losses | Low |
| Compliance | RoHS |
For more detailed information, please refer to the Fuji Electric datasheet.
