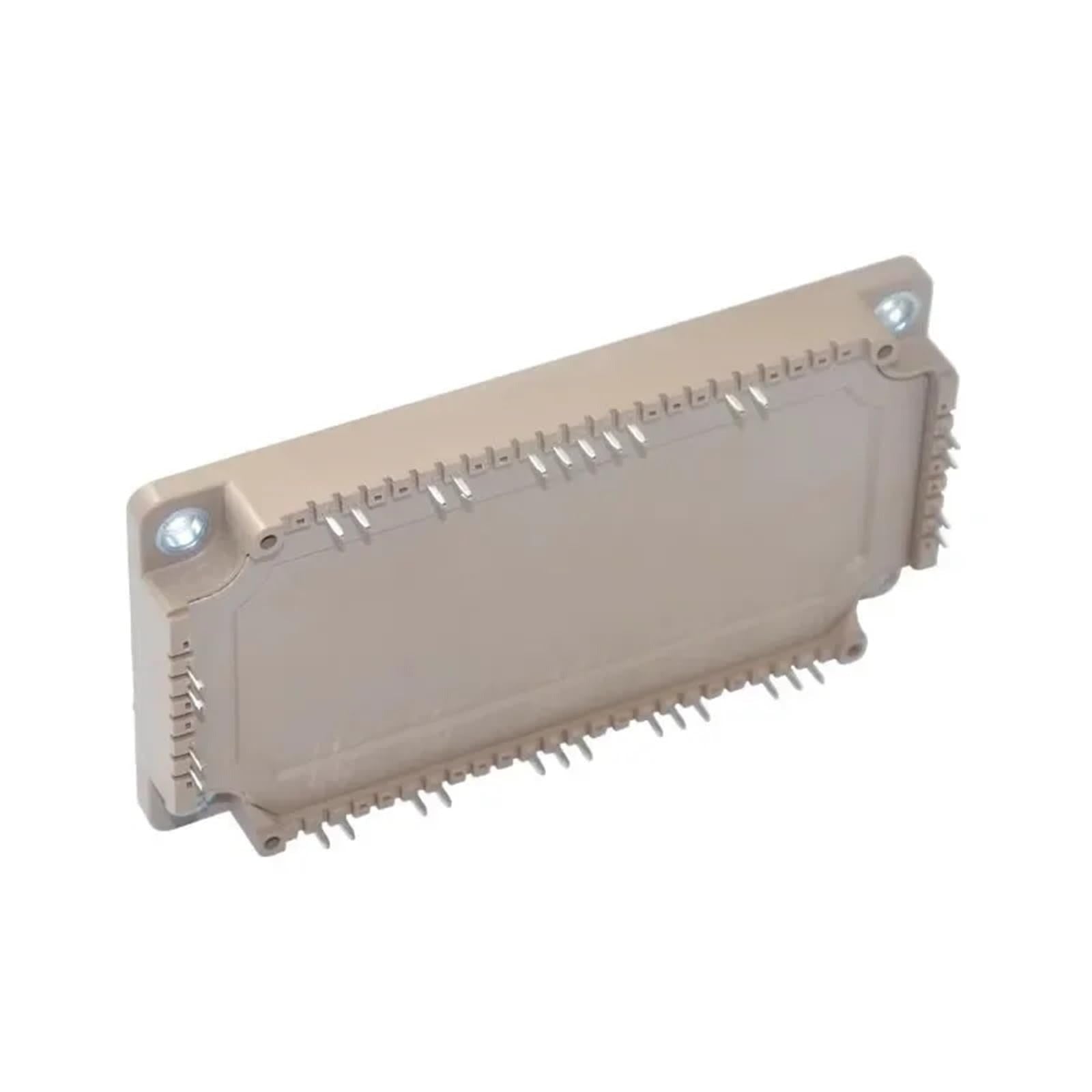

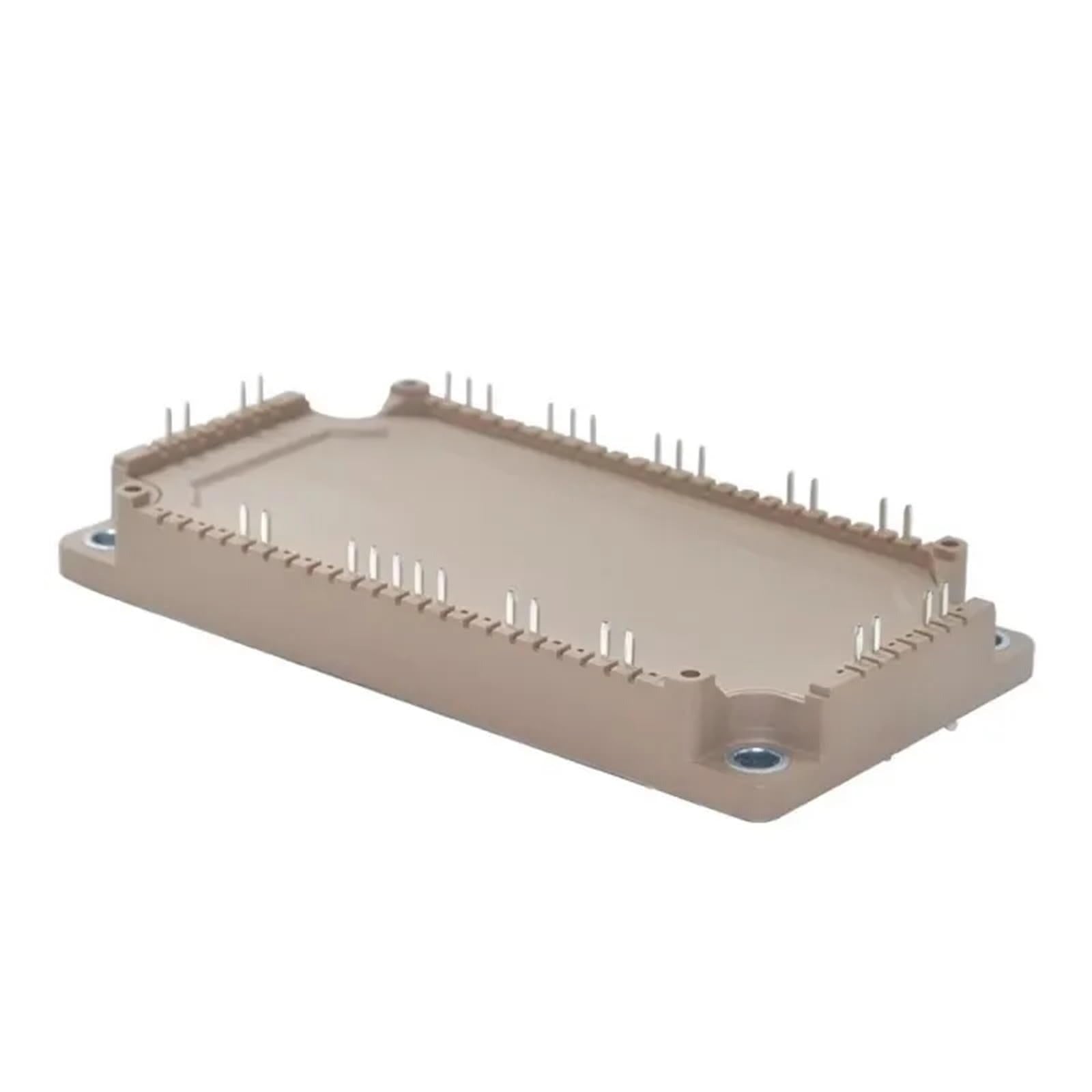

7MBR75UR120-50 — IGBT Power Module
The 7MBR75UR120-50 is an IGBT power module designed for industrial and commercial power electronics. With a collector-emitter voltage rating of 1200 V and an inverter current capacity of 75 A, it is suitable for use in three-phase inverters, motor drives, UPS systems, and converters. The module provides stable electrical performance, low conduction losses, and reliable thermal characteristics, making it a dependable choice for applications that require consistent operation.
This module uses Fuji Electric’s PIM package, supporting efficient thermal transfer and straightforward installation. Its construction helps maintain safe operation within specified temperature ranges, while the standard terminal design ensures easy integration into existing systems. Reduced thermal resistance between junction and case improves reliability under continuous load conditions.
The 7MBR75UR120-50 combines electrical performance with mechanical durability. It can be applied in areas such as motor control, solar inverters, energy storage systems, automation drives, and general power conversion equipment. For precise electrical parameters, switching behavior, and design considerations, users should refer to the official datasheet.
Key Specs
| Specification | Value |
|---|---|
| Part number | 7MBR75UR120-50 |
| Device type | IGBT module (PIM style) |
| Collector–Emitter Voltage (V_CES) | 1200 V |
| Inverter Collector Current (I_C) | 75 A |
| Package | PIM (Fuji Electric V-series) |
| Maximum case temperature (T_C) | 125 °C |
| Storage temperature (T_stg) | −40 to 125 °C |
| Dimensions (W × L) | 62 mm × 122 mm (family typical) |
| Mass | ≈ 310 g |
| Terminal type | Standard PIM terminals |
For more detailed information, please refer to the Fuji Electric datasheet: 7MBR75UR120-50 Datasheet (Fuji Electric official site).
