Fuji Electric 7MBR35SB120-50 IGBT Module
Regular price
Rs.0.00

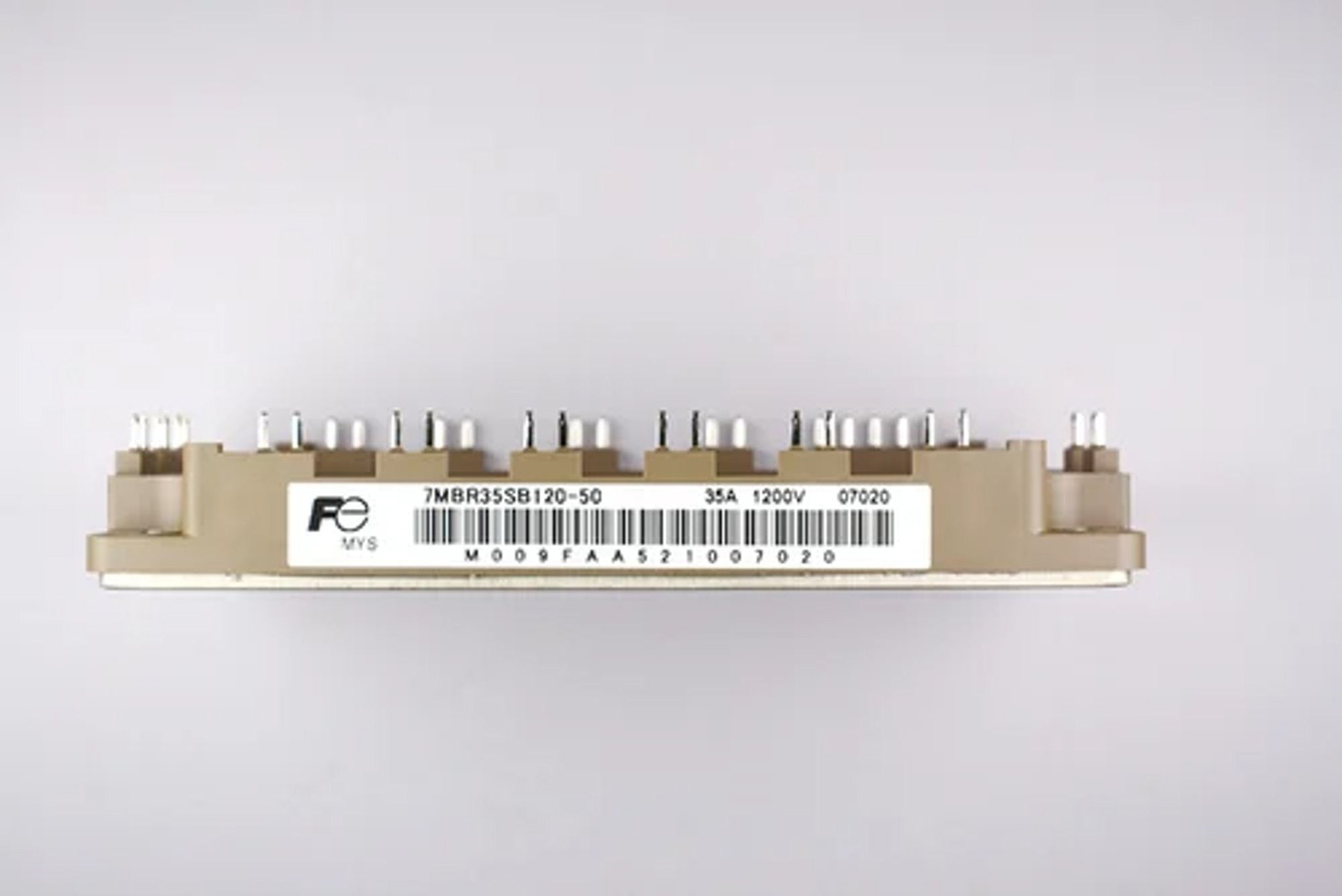

7MBR35SB120-50 IGBT Module
The 7MBR35SB120-50 is an IGBT module designed for power electronics applications. With a collector-emitter voltage rating of 1200V and a continuous collector current of 35A at 80°C, it provides reliable operation in industrial and commercial systems. Its low collector-emitter saturation voltage (VCE(sat)) ensures efficient performance, while the compact package allows easy integration. This module is suitable for inverter circuits, AC/DC servo drive amplifiers, and uninterruptible power supplies (UPS).
Designed for durability, the 7MBR35SB120-50 has a collector power dissipation of up to 240W, supporting high-power applications with effective heat management. Its structure reduces switching losses, contributing to system efficiency and thermal stability. The module performs consistently under varying load conditions.
The 7MBR35SB120-50 handles high currents and voltages while maintaining low switching losses, making it appropriate for industrial machinery, renewable energy systems, and commercial power supplies. Its combination of efficiency, compactness, and reliability supports stable operation in demanding environments.
Key Specifications
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (VCE) | 1200 V |
| Continuous Collector Current (IC) | 35 A (at Tc = 80°C) |
| Peak Collector Current (ICP) | 70 A (1ms pulse) |
| Collector Power Dissipation (PC) | 240 W |
| Gate-Emitter Voltage (VGE) | ±20 V |
| Operating Junction Temperature (Tj) | 125°C |
| Package Type | PIM (Power Integrated Module) |
For more detailed information, please refer to the Fuji Electric datasheet.
