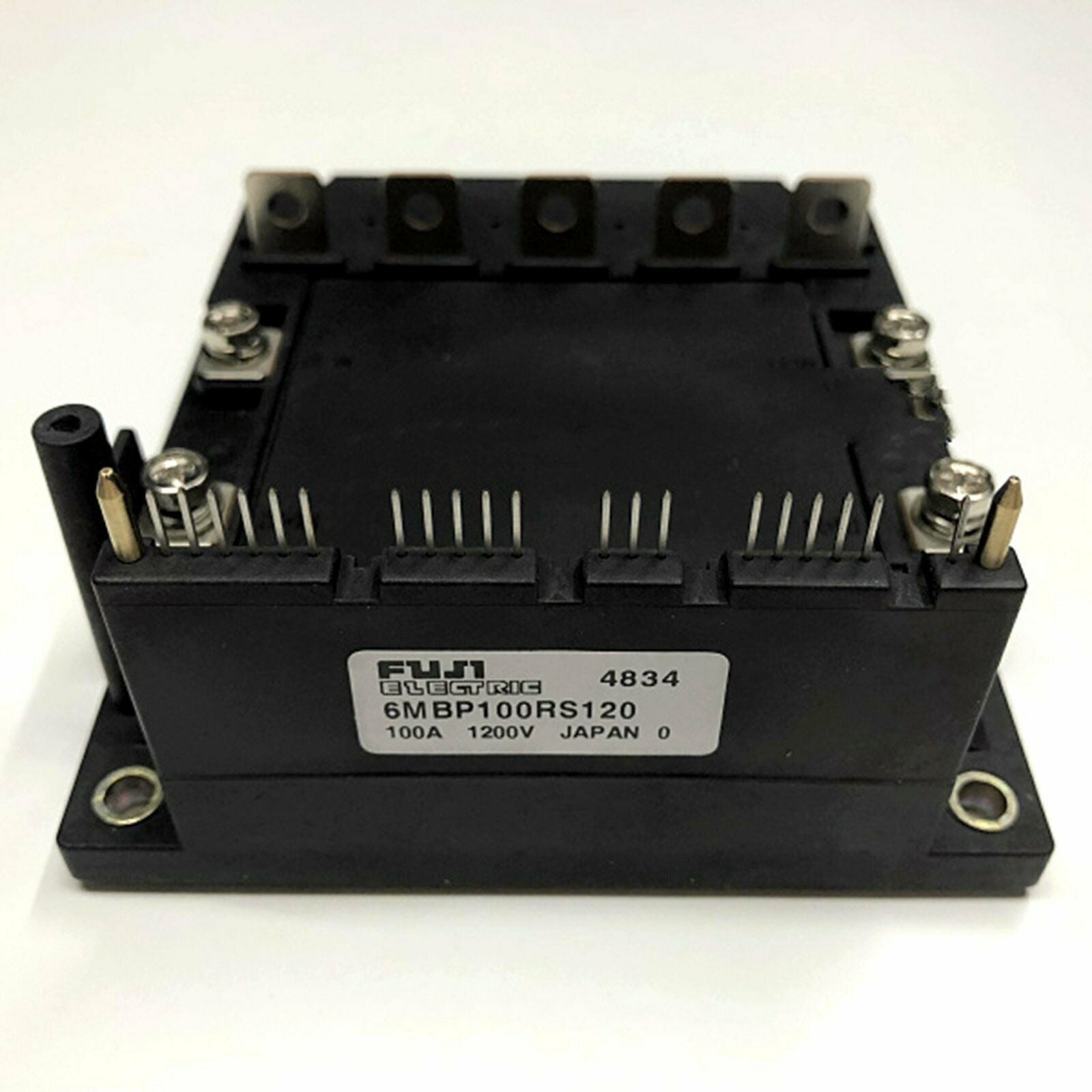

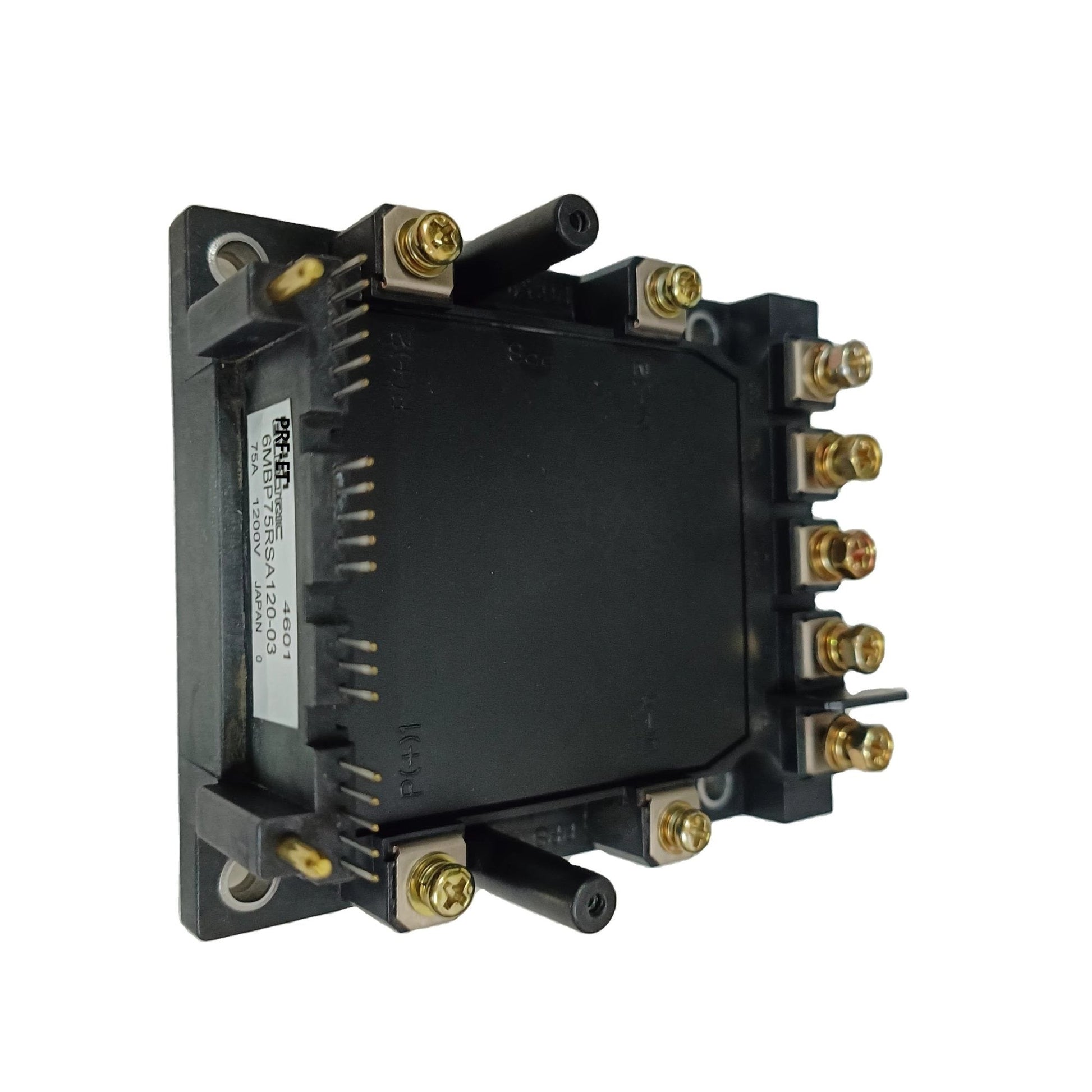

6MBP100RS120
The Fuji Electric 6MBP100RS120 is a 1200V IGBT module designed for industrial and commercial power electronics. It features six IGBTs in a six-in-one configuration, providing efficient power conversion, fast switching, and reliable thermal management. It is suitable for motor drives, inverters, UPS systems, and other power applications where stable operation is required.
The 6MBP100RS120 has a maximum collector-emitter voltage of 1200V and a continuous collector current of 100A at 25°C. Integrated short-circuit protection and temperature sensors provide monitoring and protection against thermal overload, reducing system complexity and supporting consistent operation. Its low power dissipation and soft-switching design help maintain energy-efficient performance over time.
The module is suitable for industrial motor control, inverters, and power conversion systems. Its compact design and high power density support use in space-constrained installations. The 6MBP100RS120 is designed for stable operation, energy efficiency, and durability in industrial and commercial applications.
Key Specifications
| Specification | Value |
|---|---|
| Maximum Collector-Emitter Voltage (Vces) | 1200V |
| Maximum Gate-Emitter Voltage (Vges) | ±20V |
| Continuous Collector Current (Ic) | 100A @ Tc = 25°C |
| Peak Collector Current (Icp) | 200A (1ms pulse) |
| Collector Power Dissipation (Pc) | 735W |
| Isolation Voltage (Visol) | 2500V (AC, 1 minute) |
| Operating Junction Temperature (Tj) | +150°C |
| Storage Temperature (Tstg) | -40°C to +125°C |
| Mounting Screw Torque | 3.5 ± 0.5 N·m |
For more detailed information, please refer to the Fuji Electric 6MBP100RS120 datasheet.
