Fuji Electric 6DI20C-050 500V 20A Module

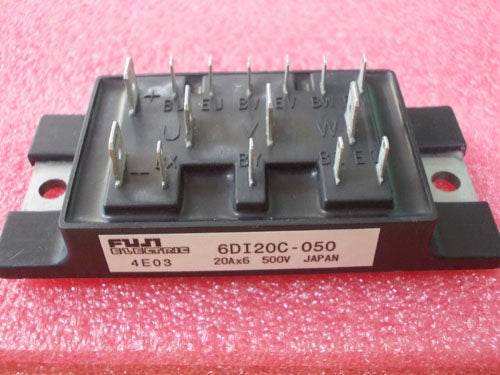

6DI20C-050 — Fuji Electric Power Transistor Module
The 6DI20C-050 is a Fuji Electric power transistor module designed for stable performance in power conversion and control systems. It integrates multiple NPN transistor elements with a free-wheeling diode, allowing efficient DC motor drive, UPS, and industrial inverter applications. Its structure supports consistent switching characteristics with controlled thermal performance for dependable operation in continuous use.
This module operates within a 500 V class rating and carries a 20 A nominal collector current capacity. The integration of the diode reduces the need for additional external components, simplifying system design. With its insulated package, the device ensures effective electrical isolation and improved thermal management, making it a practical choice for compact industrial power systems.
The 6DI20C-050 is widely used in industrial and commercial environments where durability and steady electrical behavior are required. Its internal configuration and reliable design allow long-term use in DC drives, uninterruptible power supplies, and other power electronics. For precise limits and application data, it is important to consult the official Fuji Electric datasheet.
Key Specs
| Specification | Value |
|---|---|
| Part number | 6DI20C-050 |
| Manufacturer | Fuji Electric |
| Device type | Power transistor module (NPN with free-wheeling diode) |
| Continuous collector current (IC) | 20 A |
| Collector-emitter voltage class | 500 V |
| Package type | Insulated power module |
| Integrated features | Free-wheeling diode |
| Typical applications | DC motor control, UPS, inverter front-ends, industrial power supplies |
For more detailed information, please refer to the Fuji Electric datasheet 6DI20C-050 Datasheet.
