Fuji Electric 6DI100M-050 Power Transistor Module
Regular price
Rs.0.00

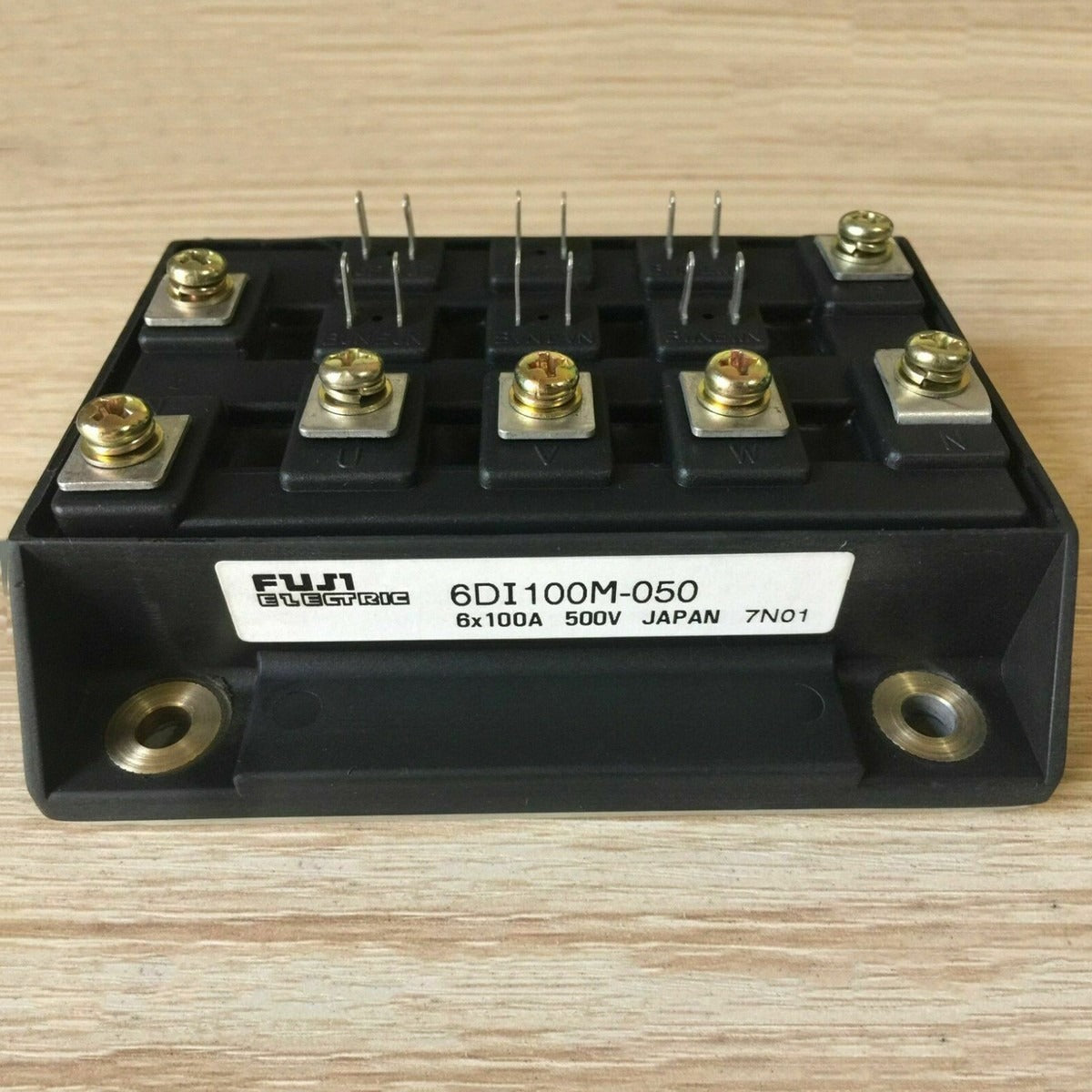

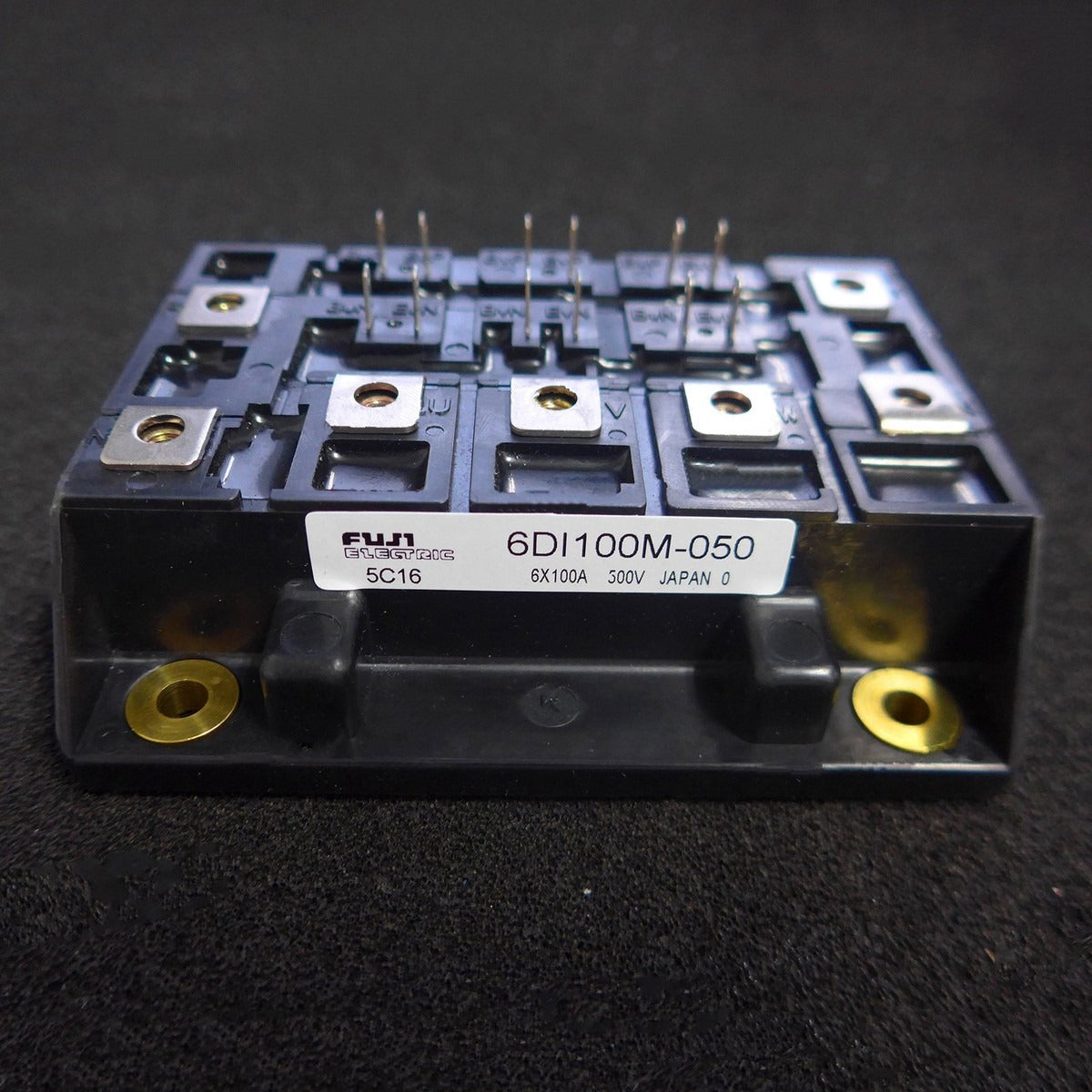

6DI100M-050 — Power Transistor Module
The 6DI100M-050 from Fuji Electric is a six-element power transistor module developed for demanding power electronics applications. It provides a collector current of 100 A and is rated in the 500–600 V class, making it suitable for use in inverters, converters, motor drives, and power control systems. With integrated free-wheeling diodes and a durable insulated package, the module supports efficient and stable operation in industrial and commercial environments.
The module is designed with high DC current gain to reduce base drive requirements and improve switching efficiency. Its integrated diodes lower commutation losses, while the package and thermal characteristics allow effective heat dissipation under continuous load. The datasheet specifies wide operating temperature limits, supporting stable function across varied conditions.
In system integration, the 6DI100M-050 provides consistent electrical performance with clear mechanical guidelines for mounting and connection. Its current capacity, switching characteristics, and diode functionality support medium-power motor drives, automation systems, UPS units, and other power conversion equipment where efficiency and durability are required.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Part number | 6DI100M-050 |
| Maximum collector-emitter voltage (V_CEO) | 600 V |
| Collector-base voltage (V_CBO) | 600 V |
| Collector-emitter voltage (sustained) (V_CES(sus)) | 450 V |
| Collector current (I_C, DC) | 100 A |
| Peak collector current (I_CP, 1 ms) | 200 A |
| Base current (I_B, DC) | 6 A |
| Power dissipation (single transistor P_C) | 400 W |
| Total module power dissipation | 2400 W |
| Junction temperature (T_j) | +150 °C (max) |
| Storage temperature | −40 to +125 °C |
| Insulation voltage (AC, 1 min) | 2500 V |
| Mounting torque (recommended) | 2.5–3.5 N·m |
| Typical applications | Inverters, motor drives, UPS, power switching |
For more detailed information, please refer to the Fuji Electric datasheet: Download 6DI100M-050 datasheet.
