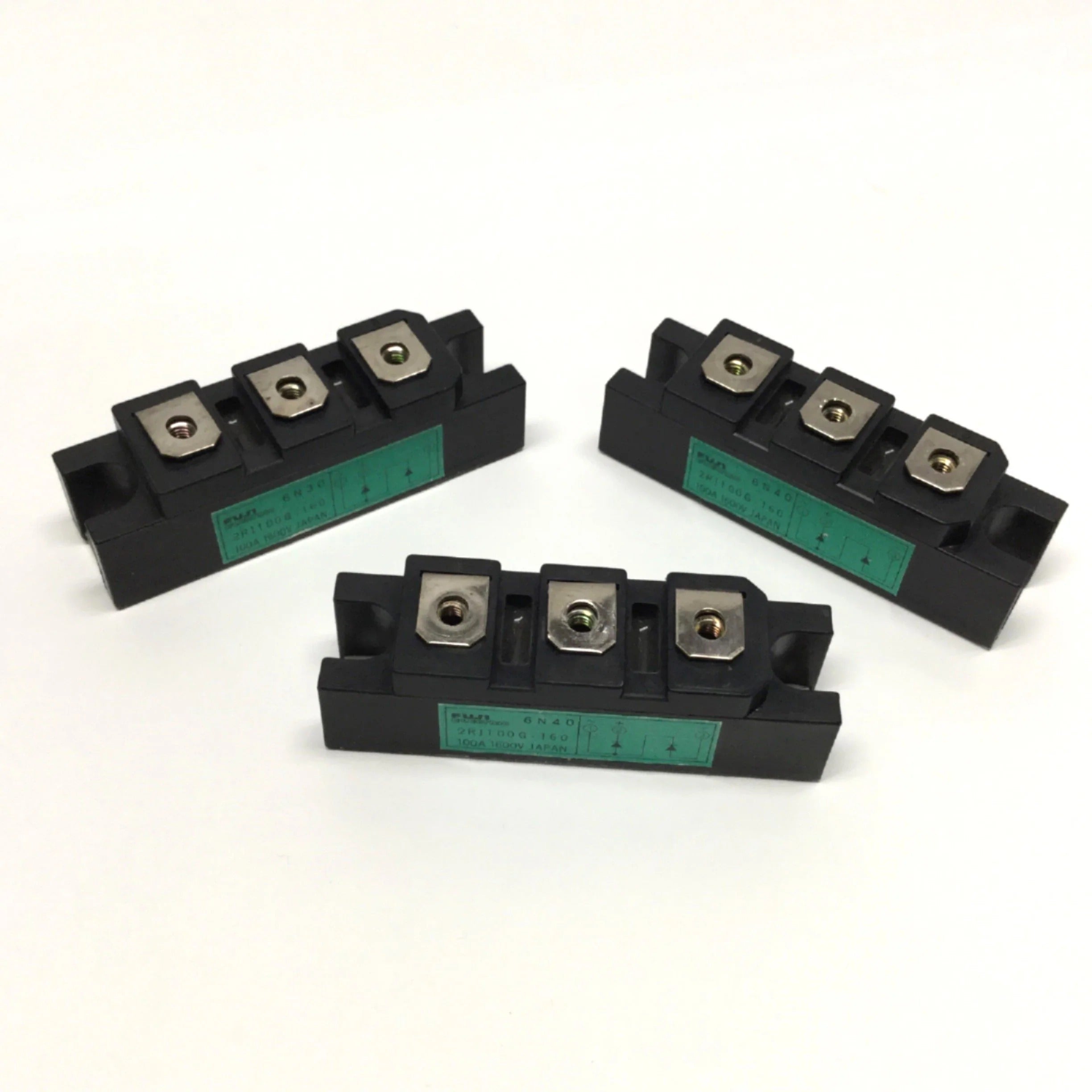

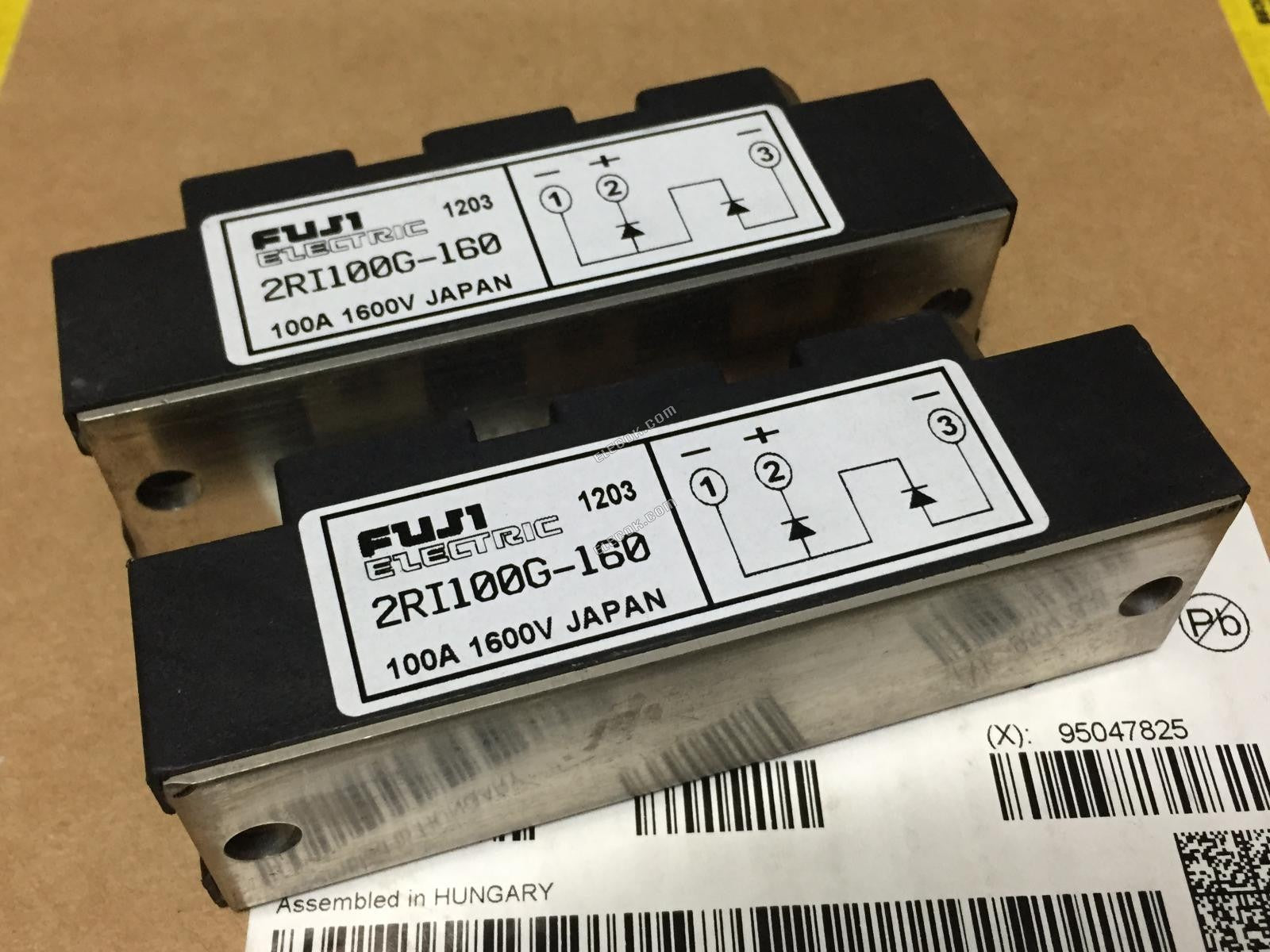

Fuji Electric 2RI100G-160 1600V 100A Diode Module
Regular price
Rs.0.00
2RI100G-160

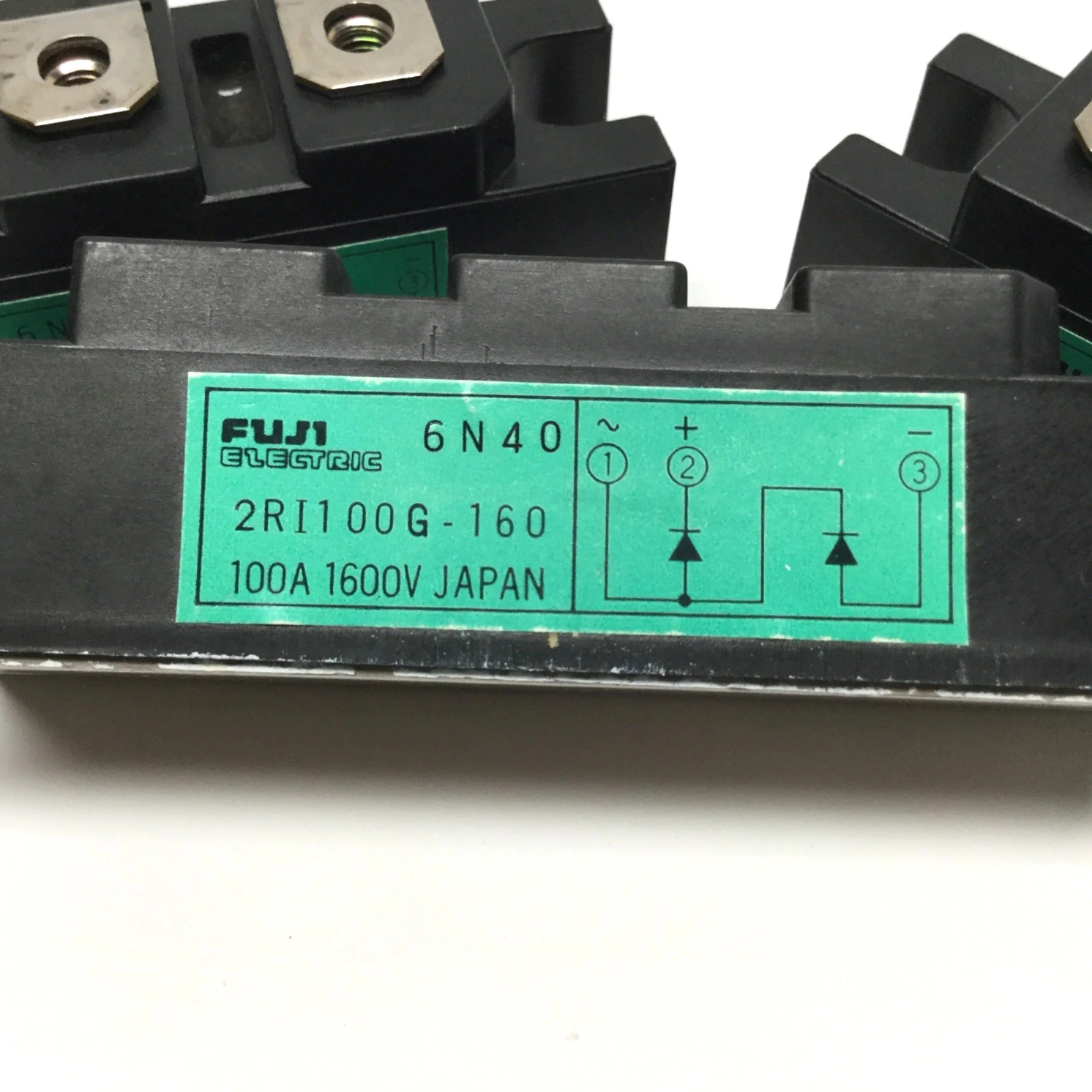

The Fuji Electric 2RI100G-160 is a two-in-one diode module designed for high-current and high-voltage operation in power electronics. It is specified for 1600 V repetitive peak reverse voltage and an average forward current rating of 100 A. This makes it suitable for rectification tasks in inverters, battery chargers, and DC power supplies where stable and consistent performance is required.
The module provides efficient conduction with controlled thermal characteristics. Datasheet values cover forward-voltage behavior, power-loss data, and transient thermal impedance, enabling accurate cooling and thermal management. Its surge current handling capability ensures stability under short-term load variations and startup conditions.
Mechanical specifications allow straightforward mounting on heat sinks and integration into rectifier or bridge circuits. Typical applications include AC motor inverters, DC motor power supplies, and general DC supply systems. For precise electrical and mechanical data, consult the official datasheet from Fuji Electric (link below).
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Part number | 2RI100G-160 |
| Device type | 2-pack diode module |
| Rated average forward current (IF(AV)) | 100 A |
| Repetitive peak reverse voltage (V_RRM) | 1600 V |
| Surge current capability | High single-pulse surge tolerance (datasheet reference) |
| Forward voltage / power loss | Shown in datasheet curves |
| Transient thermal impedance | Detailed in datasheet |
| Applications | Inverters, DC motor drives, battery chargers, DC power supplies |
| Mounting | Flat-base module for heat-sink mounting |
For more detailed information, please refer to the Fuji Electric datasheet Fuji Electric 2RI100G-160 Datasheet.
