Fuji Electric 2MBI600VJ-120-50
Regular price
Rs.0.00

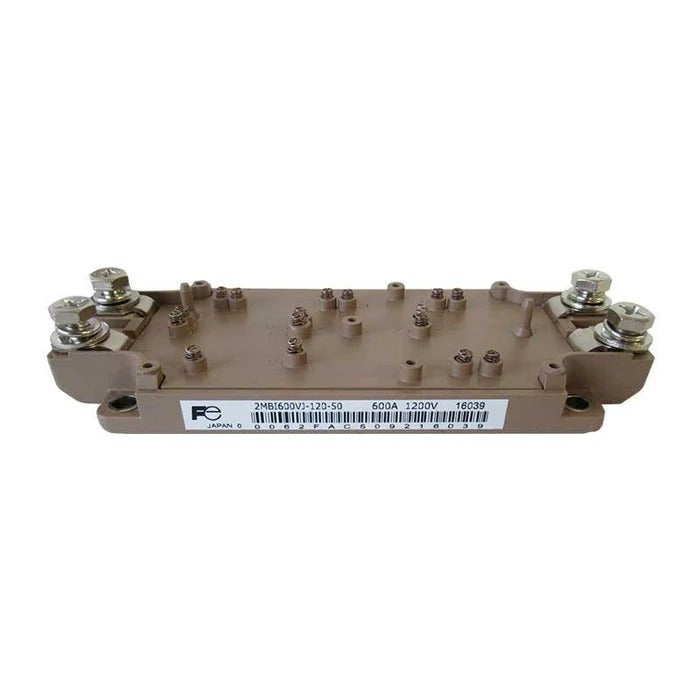

2MBI600VJ-120-50 — Dual IGBT Power Module
The 2MBI600VJ-120-50 is a dual IGBT module from Fuji Electric, designed for efficient and reliable performance in industrial power electronics. With a collector-emitter voltage of 1200 V and a collector current rating of 600 A, this module is built to handle high-power switching applications such as inverters, UPS systems, motor drives, and welding machines. Its V-series structure provides low-inductance packaging and stable switching characteristics, helping reduce overall system losses.
This module is engineered with durable construction and high isolation capability, ensuring stable operation under demanding thermal and electrical conditions. It offers a typical VCE(sat) of around 2.45 V, allowing lower conduction losses and consistent efficiency in continuous use. The built-in thermistor enables accurate temperature monitoring, which supports safe operation and improved system management.
The 2MBI600VJ-120-50 is widely applied in three-phase inverters, renewable energy systems, servo drives, and power supplies. Its fast switching performance and reliable thermal management make it suitable for both industrial and commercial environments where efficiency and long service life are essential.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Part Number | 2MBI600VJ-120-50 |
| Module Type | Dual IGBT module (V series) |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Collector Current (IC, Tc = 25°C) | 600 A |
| Typical VCE(sat) | ~2.45 V |
| Isolation Voltage | 2500 VAC (1 min) |
| Junction Temperature (Tj max) | Refer to datasheet |
| Thermal Resistance (Rth j-c) | Refer to datasheet |
| Baseplate | Copper, low-inductance design |
| Applications | Inverters, UPS, motor drives, welding, renewable energy |
For detailed specifications, electrical characteristics, and thermal data, please refer to the Fuji Electric 2MBI600VJ-120-50 datasheet (PDF).
