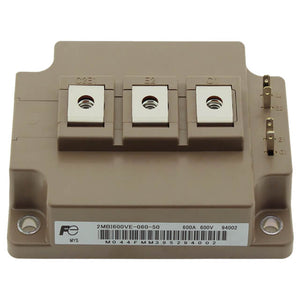

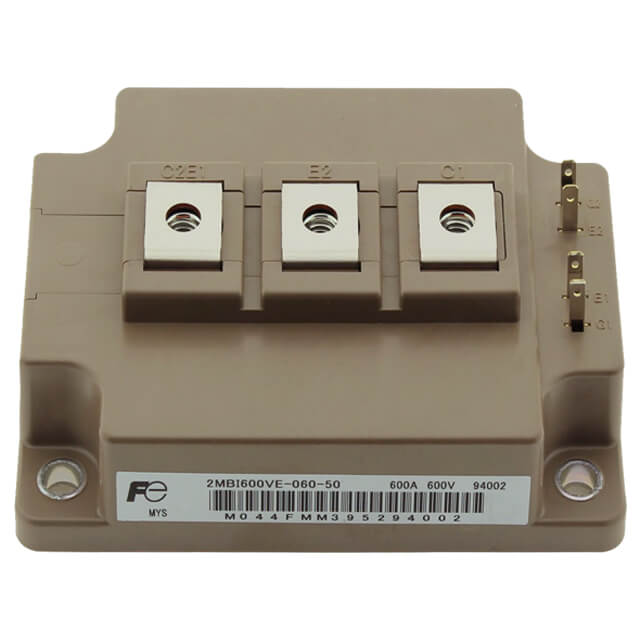

2MBI600VE-060-50 — Fuji Electric 600V / 600A IGBT Module
The 2MBI600VE-060-50 from Fuji Electric is an IGBT power module designed for high-current and mid-voltage applications. It provides 600 V collector-emitter voltage capability with a 600 A rated current in a dual-package structure. The device supports fast switching characteristics and stable operation in motor drives, inverters, and power supply systems.
The module has a typical collector-emitter saturation voltage of 1.85 V at Ic = 600 A and Tj = 25 °C, helping maintain conduction efficiency. It features a thermal resistance of about 0.051 °C/W per device, gate threshold of 6.7 V, and an internal gate resistance of around 1.5 Ω, ensuring predictable switching behaviour. These electrical and thermal ratings are defined in Fuji Electric’s official datasheet.
With isolation strength of 2500 VAC between terminals and baseplate, defined mounting torques, and case temperature rating of up to 125 °C, the module is suitable for use in motor control, welding equipment, UPS units, and servo systems. Specifications and test conditions are provided in the manufacturer datasheet for correct integration.
Key Specs
| Specification | Value |
|---|---|
| Part number | 2MBI600VE-060-50 |
| Manufacturer | Fuji Electric |
| Series / Type | V series, dual IGBT module |
| Collector-Emitter voltage (VCES) | 600 V |
| Gate-Emitter voltage (VGE) | ±20 V (max) |
| Rated collector current (Ic) — continuous | 600 A (Tc = 80 °C); 780 A (Tc = 25 °C) |
| Pulse current (Ic pulse, 1 ms) | 1200 A |
| Collector-Emitter saturation voltage (VCE(sat)) | Typ. 1.85 V; Max. 2.40 V (Ic = 600 A, VGE = +15 V, Tj = 25 °C) |
| Gate threshold voltage (VGE(th)) | Typ. 6.7 V |
| Input capacitance (Cies) | ≈ 38.8 nF |
| Internal gate resistance | ≈ 1.5 Ω |
| Forward on-voltage (VF) | Typ. 1.75 V (IF = 600 A, Tj = 25 °C) |
| Reverse recovery time (trr) | ≈ 0.25 μs |
| Thermal resistance Rth(j-c) | ≈ 0.051 °C/W (IGBT) |
| Junction temperature (Tj max) | 175 °C |
| Case temperature (Tc max) | 125 °C |
| Storage temperature | −40 to +125 °C |
| Isolation voltage | 2500 VAC (1 min) |
| Mounting screw torque | 6.0 N·m |
| Weight | ≈ 470 g |
For detailed specifications, please refer to the official datasheet Fuji Electric Datasheet — 2MBI600VE-060-50 (PDF)
