Fuji Electric 2MBI150UA-120-51 IGBT Module
Fuji Electric 2MBI150UA-120-51 IGBT Module

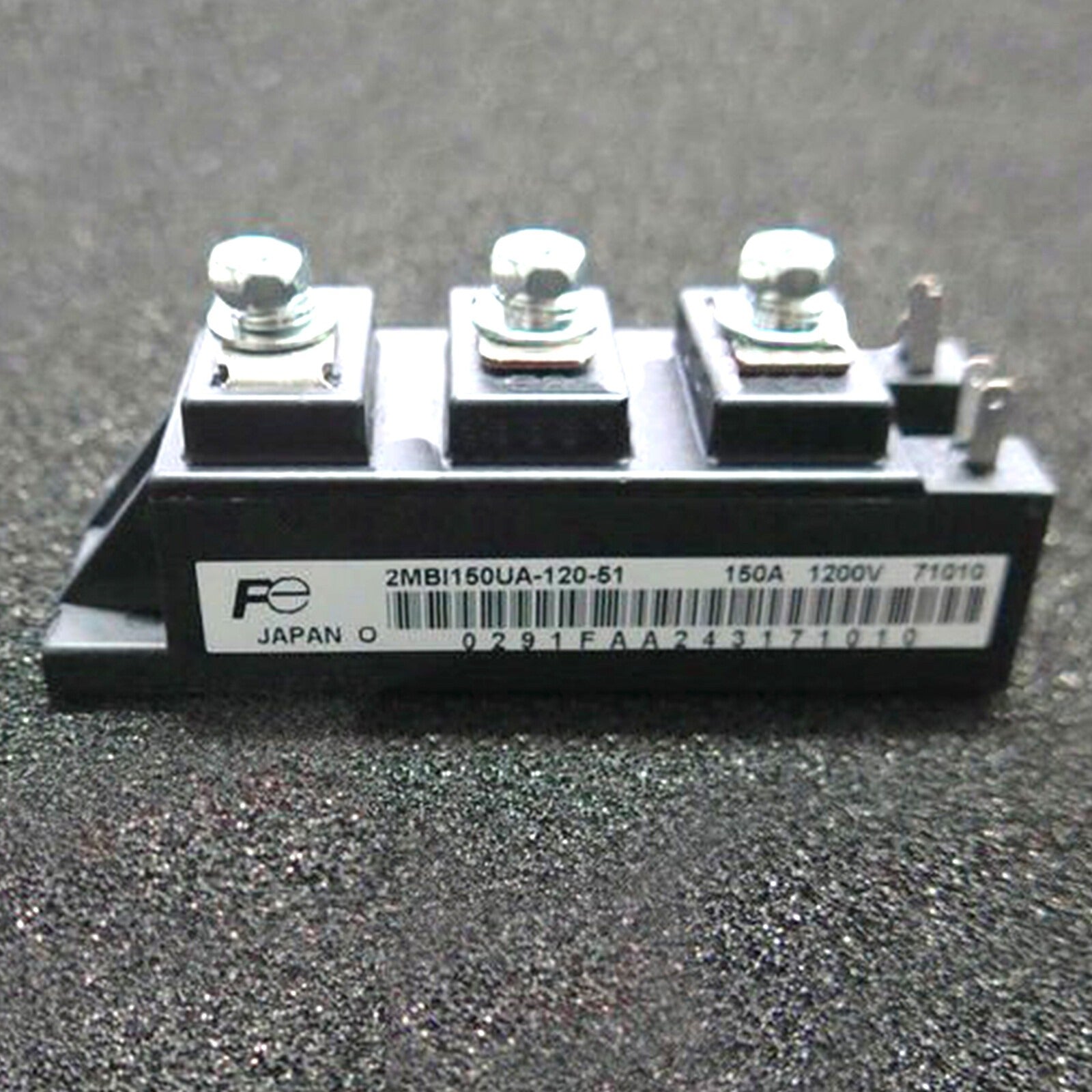

The Fuji Electric 2MBI150UA-120-51 is an IGBT module designed for efficient and reliable operation in power electronics applications. With a voltage rating of 1200V and a current capacity of 150A, it is suitable for industrial and commercial systems. Its construction supports long-term operation under demanding conditions while minimizing power losses.
The module features Fuji Electric's U-Series technology, providing fast switching and low conduction losses. Its compact design allows effective heat dissipation, supporting stable operation across a wide temperature range. Typical applications include motor drives, UPS systems, and renewable energy inverters, where consistent power conversion is required.
The 2MBI150UA-120-51 maintains high switching efficiency and stable operation, making it suitable for systems that require precise control and energy-efficient performance.
Key Specifications
| Feature | Specification |
|---|---|
| Voltage Rating | 1200V |
| Current Rating | 150A |
| Package Type | U-Series |
| Switching Frequency | Up to 15–20 kHz |
| Conduction Voltage Drop (VCE(on)) | Approximately 1.5–2.0V |
| Operating Temperature Range | -40°C to +125°C |
| Maximum Power Dissipation | 735W |
| Maximum Junction Temperature | 150°C |
| Gate-Emitter Threshold Voltage (VGEth) | 8.5V |
