Fuji 7MBR25SA120 1200V 25A IGBT Module

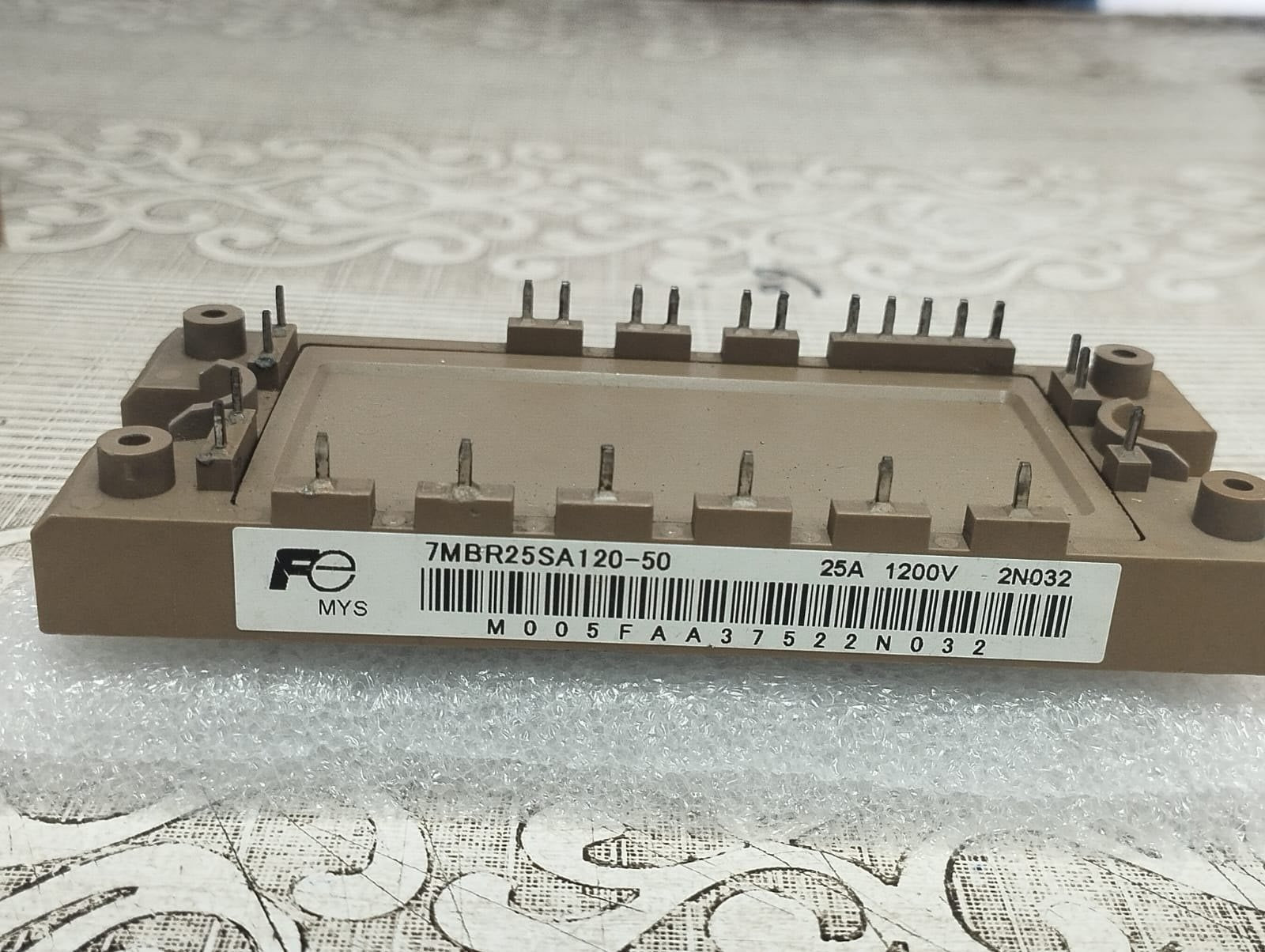

Fuji 7MBR25SA120 IGBT Power Module — 1200V / 25A
The Fuji 7MBR25SA120 is a high-reliability IGBT module designed for efficient power switching in industrial and commercial systems. With a 1200 V collector-emitter voltage and 25 A current rating, it integrates the converter, inverter, and brake circuits in a compact package. This reduces system size, improves thermal management, and ensures stable performance in demanding environments.
Widely used in AC motor drives, UPS systems, inverters, and industrial automation equipment, the 7MBR25SA120 offers consistent operation, long service life, and compatibility with a range of high-power applications. Its isolated case and flange-mount design simplify installation and enhance thermal performance.
Built on Fuji Electric’s proven IGBT technology, this module is engineered to provide durability, efficiency, and safe operation under varied load and temperature conditions, making it suitable for both new system designs and replacement needs.
Key Specs
| Specification | Value |
|---|---|
| Manufacturer | Fuji Electric |
| Part Number | 7MBR25SA120 |
| Module Type | IGBT Power Module (PIM) |
| Collector-Emitter Voltage (V<sub>CE</sub>) | 1200 V |
| Collector Current (I<sub>C</sub>) | 25 A |
| Gate-Emitter Voltage (V<sub>GE</sub>) | ±20 V |
| Max Junction Temperature (T<sub>j</sub>) | 150 °C |
| Package | Module-24, isolated case, flange mount |
| Typical Switching Times | ton ≈ 350 ns, toff ≈ 450 ns |
| V<sub>CE(sat)</sub> (typical) | ~2.6 V |
| Storage Temp Range | –40 °C to +125 °C |
| Applications | AC drives, inverters, UPS, servo amplifiers |
| Compliance | RoHS compliant |
For detailed electrical and mechanical data, please refer to the official 7MBR25SA120 Datasheet (PDF)
