FS20R06XE3 600V 26A Industrial IGBT Module

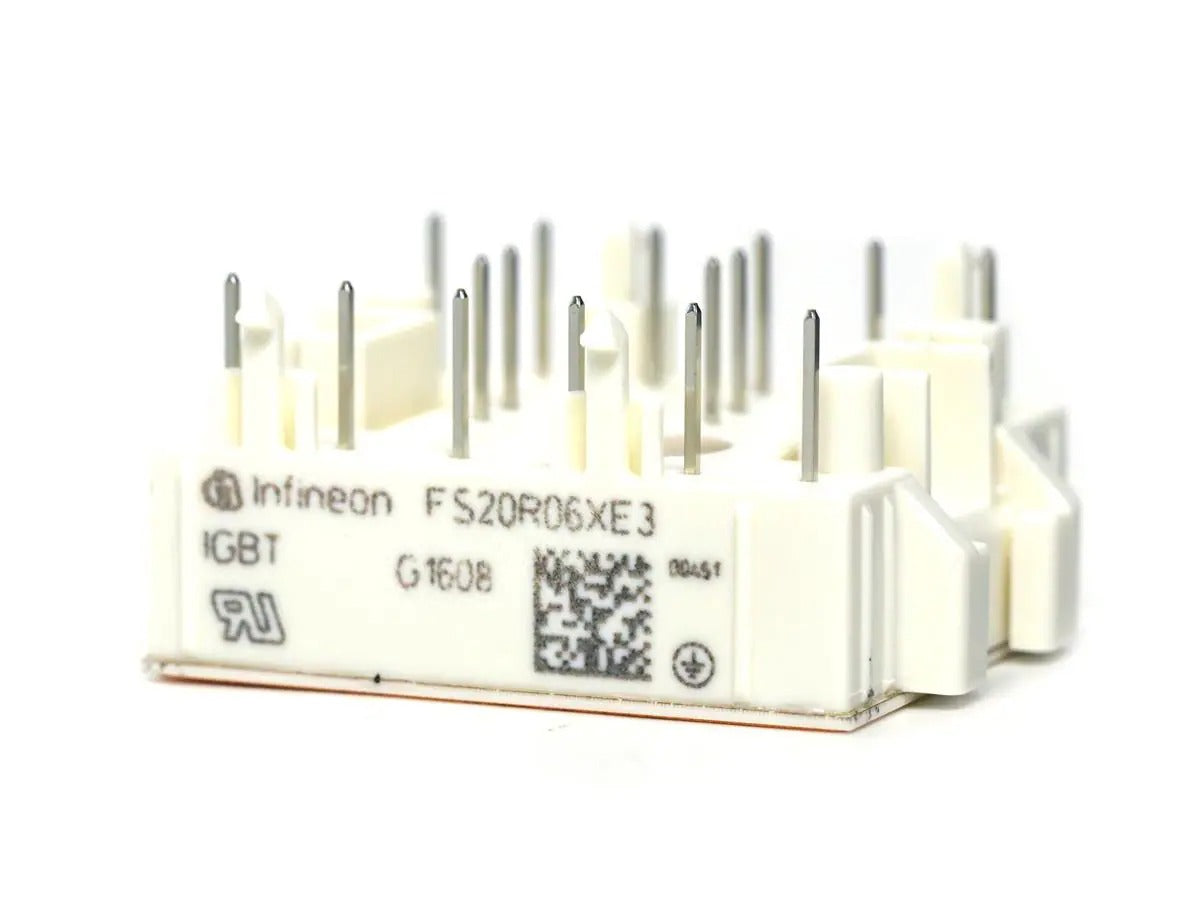

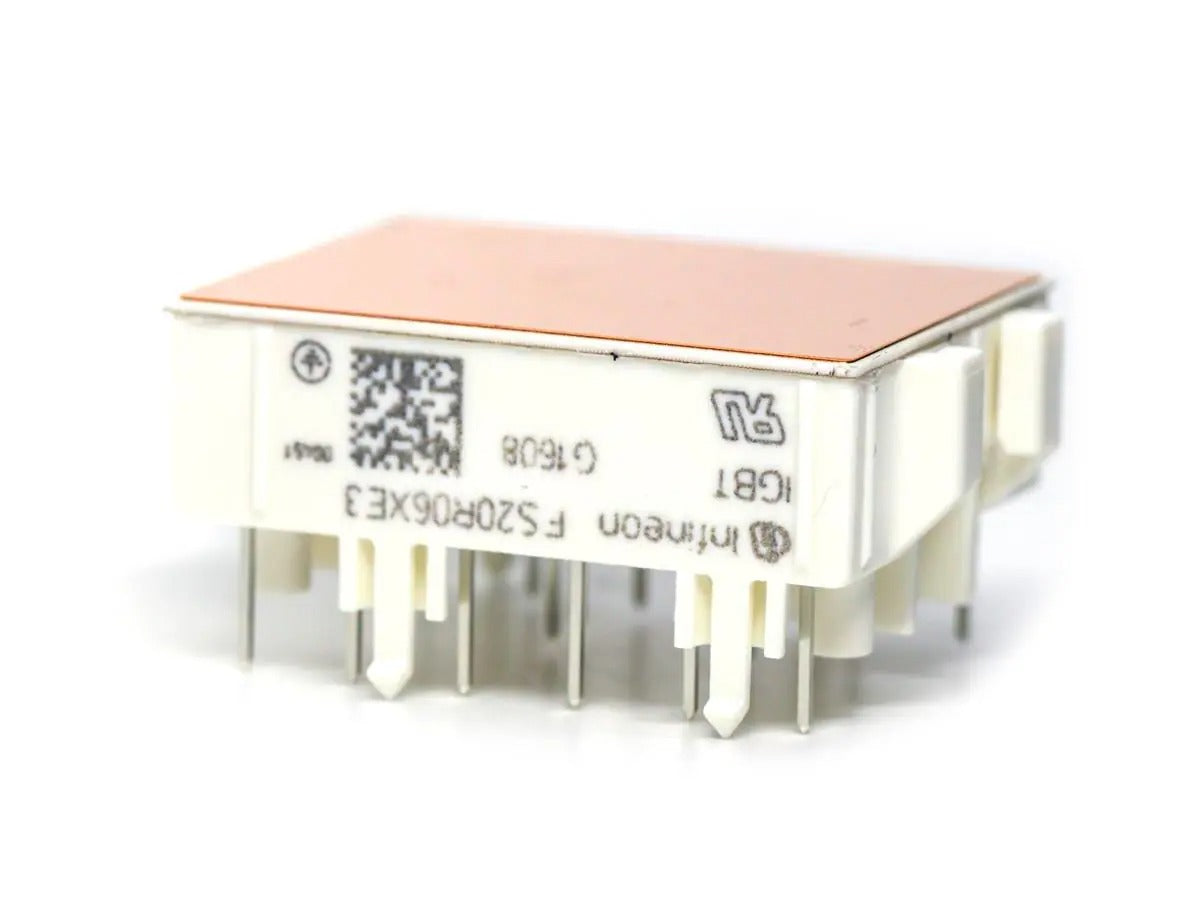

FS20R06XE3 IGBT Module
The FS20R06XE3 is an IGBT (Insulated Gate Bipolar Transistor) module designed for stable switching performance in industrial and commercial power electronics. With a collector-emitter voltage rating of 600 V and a continuous collector current of 26 A at 25 °C, it provides a balanced solution for medium-power applications.
Built on silicon IGBT technology, the module supports reliable operation across a wide temperature range of -40 °C to +150 °C. Its design ensures consistent electrical behaviour and robust thermal performance, making it suitable for environments where long-term reliability is important.
The FS20R06XE3 is typically used in motor drives, inverter systems, UPS equipment, renewable energy converters, and automation systems. With low switching losses and a six-pack configuration, it allows efficient power handling and integration into compact system designs.
Key Specs
| Specification | Value / Description |
|---|---|
| Module Type | IGBT Module (N-Channel) |
| Collector-Emitter Voltage (V<sub>CEo</sub>) | 600 V |
| Continuous Collector Current (25 °C) | 26 A |
| Technology | Silicon (Si) IGBT |
| Operating Temperature Range | -40 °C to +150 °C |
| Package / Case | Module, tray packaging |
| Configuration | 6-pack IGBT module |
| Part Status | Discontinued / End of Life |
