FP15R12KE3 1200V 27A IGBT Module

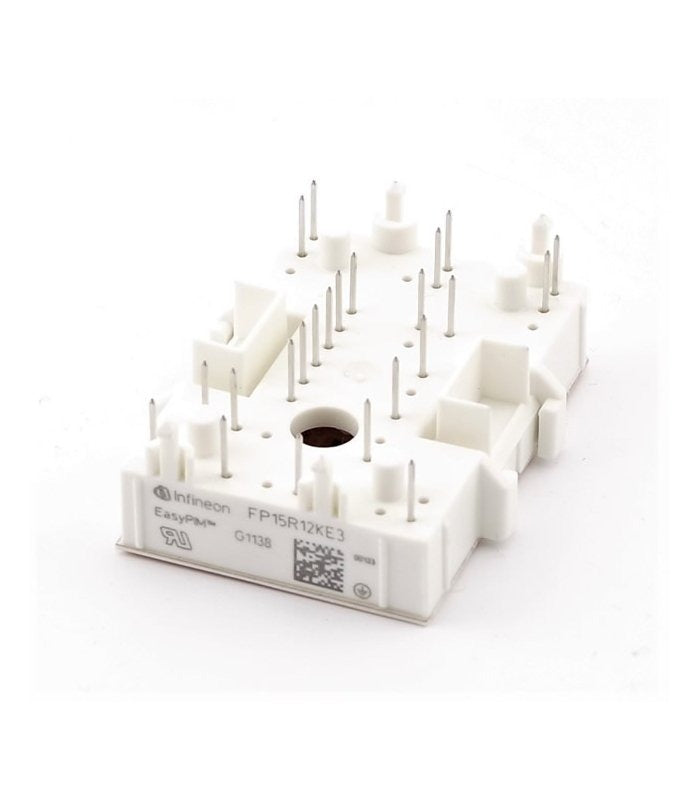

FP15R12KE3 IGBT Module – Infineon Technologies

The FP15R12KE3 is a robust, high-performance IGBT module designed for demanding power electronics use across industrial and commercial sectors. With a collector-emitter voltage rating of 1200 V and a continuous collector current of 27 A, this module delivers reliable and efficient switching for motor drives, inverters, power supplies, and renewable energy systems. Its compact EASY2 package allows for easy screw-mounting and straightforward integration onto heatsinks, ensuring both space-saving design and superior thermal management.

Beyond performance, the FP15R12KE3 combines durability with simplified architecture—featuring a built-in diode for inherent free-wheeling support—and operates across a wide temperature range from –40 °C to +125 °C. While now scheduled for obsolescence, it remains a trusted choice for existing designs and spare part solutions, offering excellent power dissipation (89 W) and low gate leakage (< 400 nA) for dependable, efficient operation in industrial environments.

Key Specifications

Collector-Emitter Voltage (V_CE)  1,200 V
Continuous Collector Current (I_C)  27 A @ 25 °C
Power Dissipation (P_C)  89 W
Collector-Emitter Saturation Voltage (V_CE(sat))  1.7 V
Gate-Emitter Leakage Current (I_GE leakage)  ≤400 nA
Operating Temperature Range  –40 °C to +125 °C
Package Type  EASY2, screw-mountable, compact form factor
Lifecycle Status  End-of-Life / Not recommended for new designs
