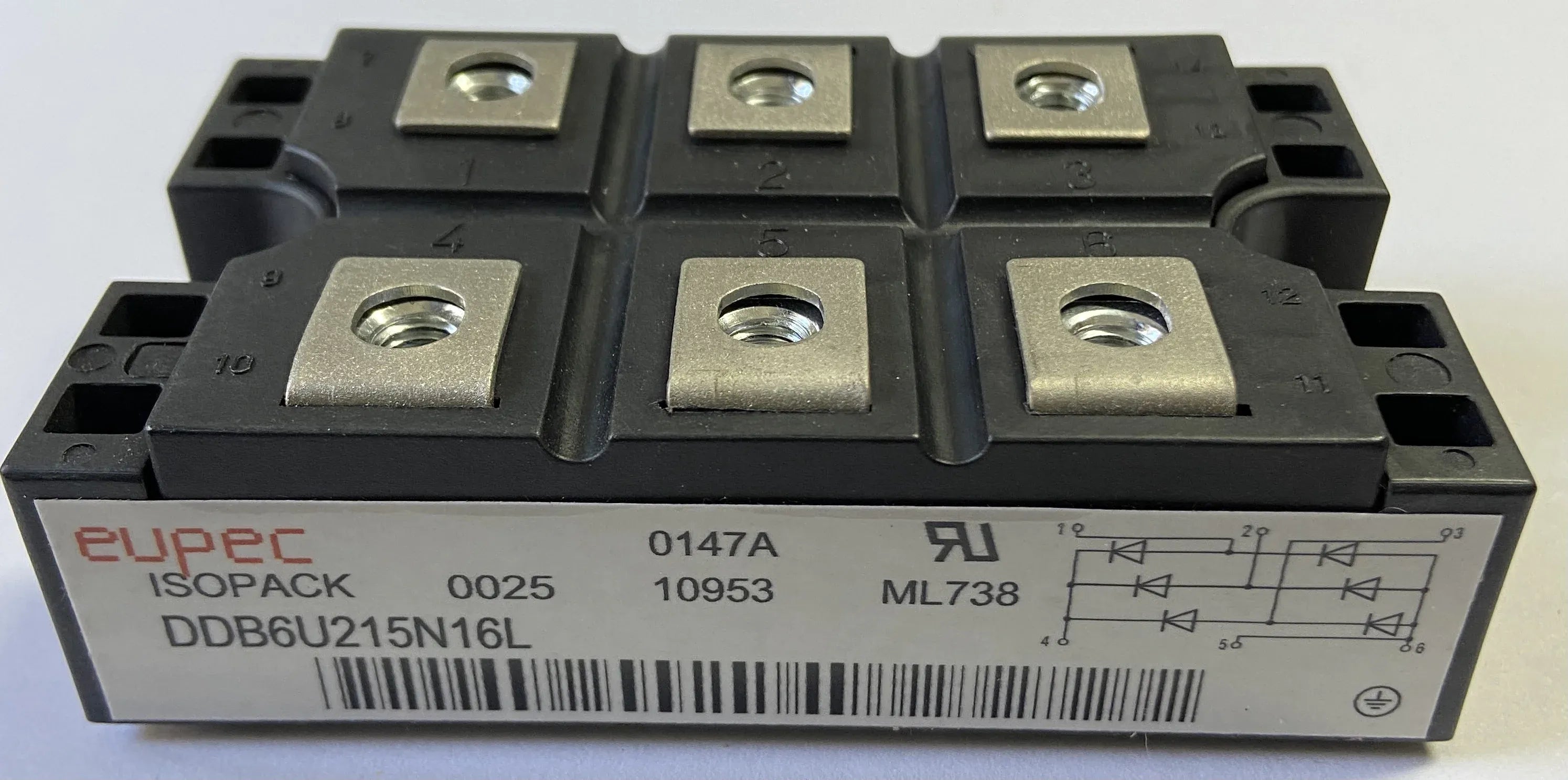

DDB6U215N16L 1600V, 215A Diode Bridge Module
Regular price
Rs.0.00
DDB6U215N16L Diode Bridge Module
The DDB6U215N16L is a high-performance diode bridge module from Infineon Technologies, designed for demanding industrial and commercial power electronics applications. With a reverse voltage rating of 1600V and a forward current capacity of 215A, it delivers reliable performance under high-power conditions. Its compact DDB-6 housing ensures efficient thermal management and mechanical stability, making it suitable for integration into motor drives, power regulators, and other high-load systems.
The DDB6U215N16L features a low forward voltage drop of 1.61V, reducing conduction losses and improving overall system efficiency. The module supports a wide operating temperature range of −40°C to +150°C, ensuring stable operation across varied environmental conditions. Its robust construction guarantees long-term reliability, making it suitable for continuous industrial operation with minimal downtime.
This module is widely used in AC motor drives, welding equipment, temperature control systems, and power converters, offering consistent performance in critical applications. Its compact DDB-6 form factor allows for easy mounting and integration, while maintaining effective heat dissipation and electrical isolation.
Key Specifications:
| Specification | Value |
|---|---|
| Module Type | Dual Diode Bridge |
| Reverse Voltage (V_RRM) | 1600V |
| Forward Current (I_F) | 215A |
| Forward Voltage (V_F) | 1.61V |
| Operating Temperature Range | −40°C to +150°C |
| Package Type | DDB-6 |
| Mounting Type | Screw Mount |
| Housing Material | Aluminum Oxide Ceramic |
