CP25TD1-24A 1200V 25A Powerex IGBT Module

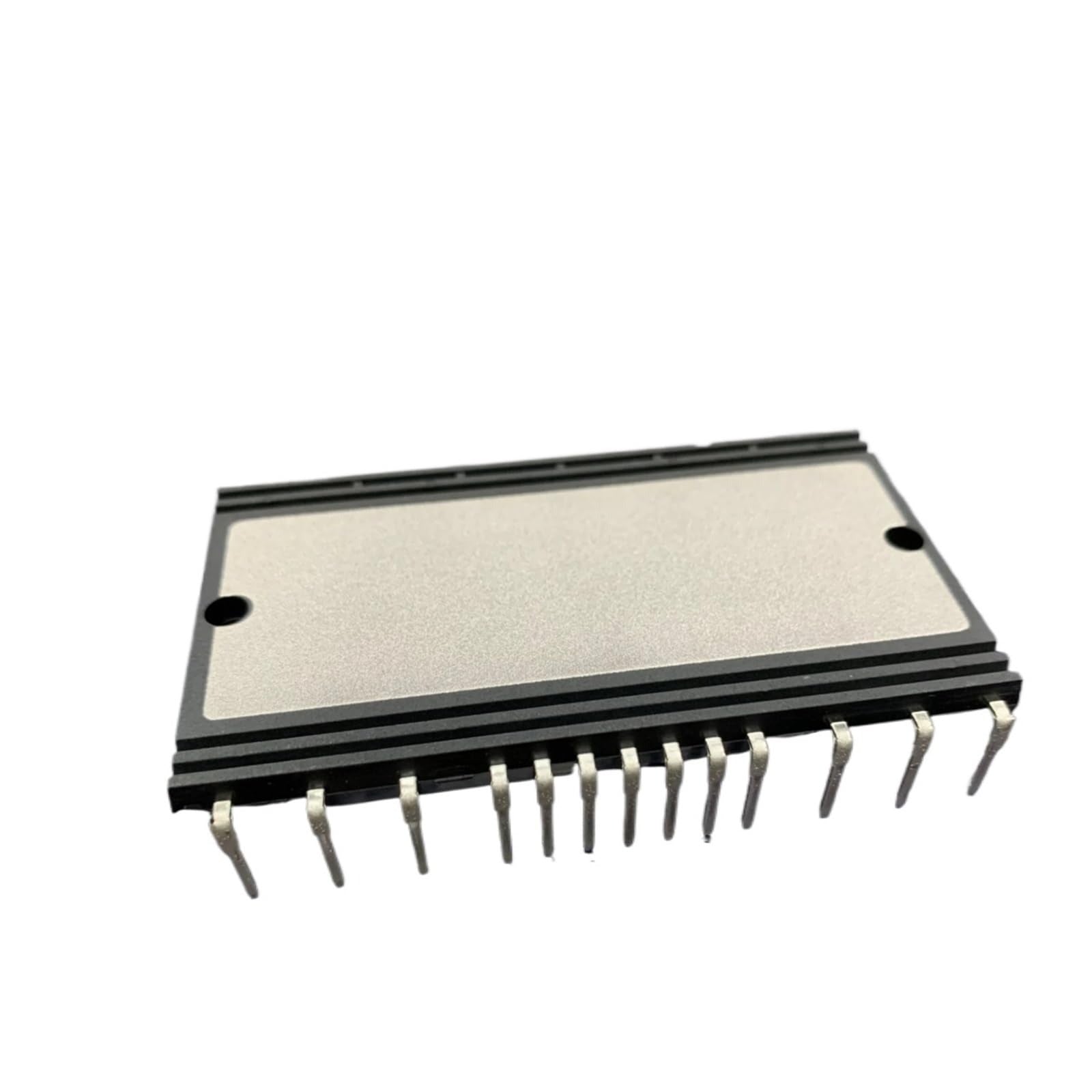

CP25TD1-24A IGBT Module – Powerex

The CP25TD1-24A IGBT Module is a high-efficiency, compact power electronics solution designed for demanding industrial and commercial applications. Built to operate at 1200 V collector-emitter voltage and 25 A continuous current, this module combines outstanding performance with robust reliability, ideal for motor drives, inverters, robotics, and UPS systems.

Featuring a modular design that integrates a three-phase diode converter, three-phase inverter, and brake circuit, the CP25TD1-24A simplifies system architecture while providing accurate current monitoring via open emitter outputs. An NTC thermistor is built in to deliver real-time thermal feedback, enhancing safety and operational stability.

Manufactured using 5th Generation CSTBT chips, this module offers low-loss, fast-switching performance (turn-on delay ~100 ns, rise ~75 ns, turn-off delay ~300 ns, fall ~400 ns), ensuring energy-efficient operation and minimal heat generation. The standard 26-pin DIP, through-hole package is only 5.7 mm thick, offering space-saving integration without sacrificing thermal management.

Despite being an older—but proven—design (now marked "obsolete" in distribution), the CP25TD1-24A continues to excel in tough industrial environments thanks to its RoHS-compliant, lead-free construction, wide operating junction temperature range (–20 °C to 150 °C), and high electrical isolation (2500 Vrms).

Key Specifications

Collector-Emitter Breakdown Voltage (VCES): 1200 V
Continuous Collector Current (IC): 25 A
Maximum Collector Dissipation (PC): 138 W @ Tc = 25 °C
Saturation Voltage (VCE(on)): ~2.5 V @ VGE = 15 V, IC = 25 A
Switching Times: Turn-on delay ~100 ns; Rise ~75 ns; Turn-off delay ~300 ns; Fall ~400 ns
Configuration: Three-phase converter + three-phase inverter + brake circuit
NTC Thermistor: Yes (integrated for thermal feedback)
Isolation Voltage: 2500 Vrms (pins to heatsink)
Operating Junction Temperature (Tj): –20 °C to +150 °C (some sources specify –20 °C to 150 °C)
Package Type: 26-pin DIP, through-hole, 5.7 mm thick
Additional Features: Open emitter outputs, RoHS-compliant lead-free module, compact DIP-CIB form factor
