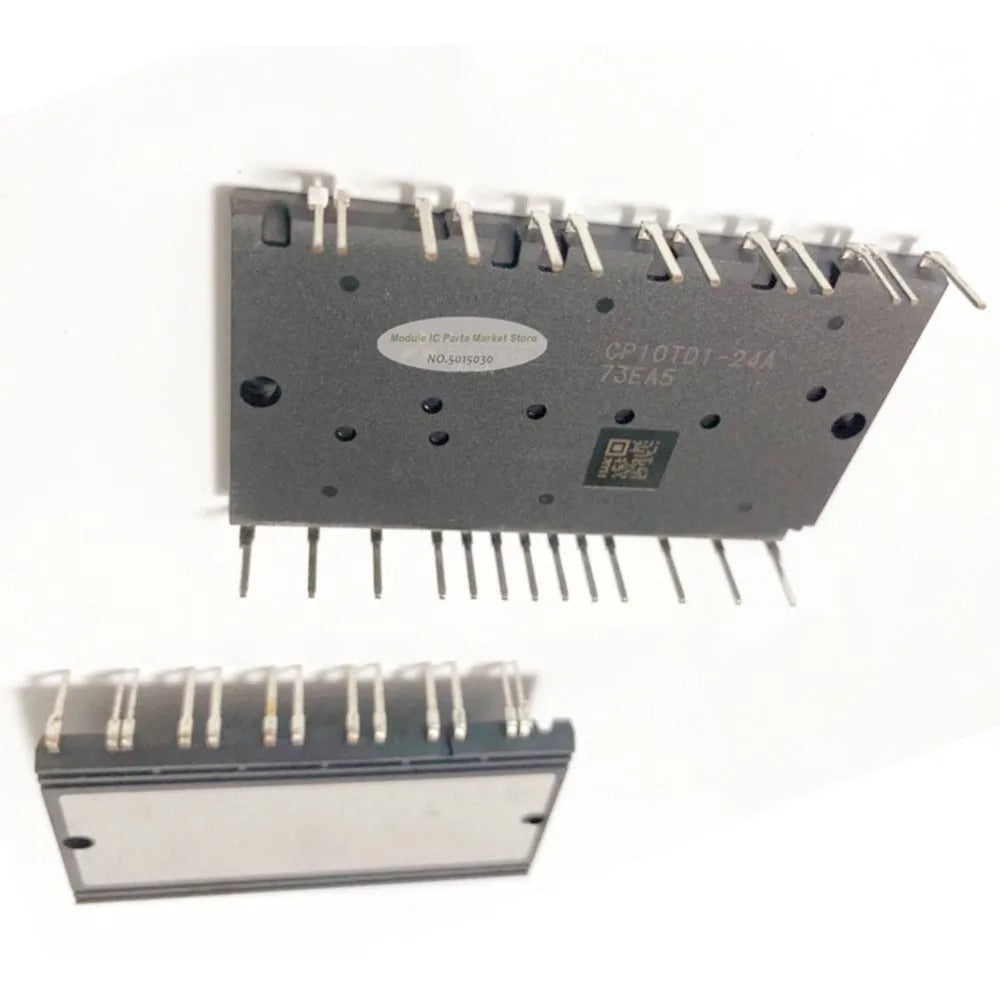

CP10TD1-24A IGBT Power Module – Powerex

The CP10TD1-24A is a compact and efficient IGBT power module designed for high-performance motor drives, inverters, and industrial control systems. With a collector-emitter voltage of 1200V and a continuous collector current of 10A, this module ensures reliable power switching for demanding applications.

Built with integrated NTC thermistor monitoring and an isolation voltage of 2500Vrms, the CP10TD1-24A provides enhanced safety and thermal protection, making it suitable for both commercial and industrial environments. Its fast switching speed, low conduction losses, and durable construction make it an excellent choice for robotics, HVAC inverters, UPS systems, and precision servo drives.

The module features a 26-pin DIP-style package with open emitters for simple current sensing and secure PCB integration. Thanks to its compact design and robust thermal handling, the CP10TD1-24A is ideal for space-constrained electronics without compromising performance or durability.

Key Specifications

Collector-Emitter Voltage: 1200V
Collector Current: 10A continuous
Power Dissipation: 96W at Tc = 25°C
Vce(on): ~2.5V @ Vge = 15V, Ic = 10A
Switching Times: Turn-on delay 100ns, Rise 75ns, Turn-off delay 300ns, Fall 400ns
Isolation Voltage: 2500Vrms (pins to heatsink)
Thermal Protection: Integrated NTC thermistor
Operating Junction Temp: –20°C to +125°C
Package Type: 26-pin DIP, through-hole, 5.7mm thick
Special Features: Open emitter configuration, RoHS compliant
Applications: Motor drives, robotics, HVAC inverters, UPS, industrial control systems
