Calicanh-L1 125/250V Circuit Breaker

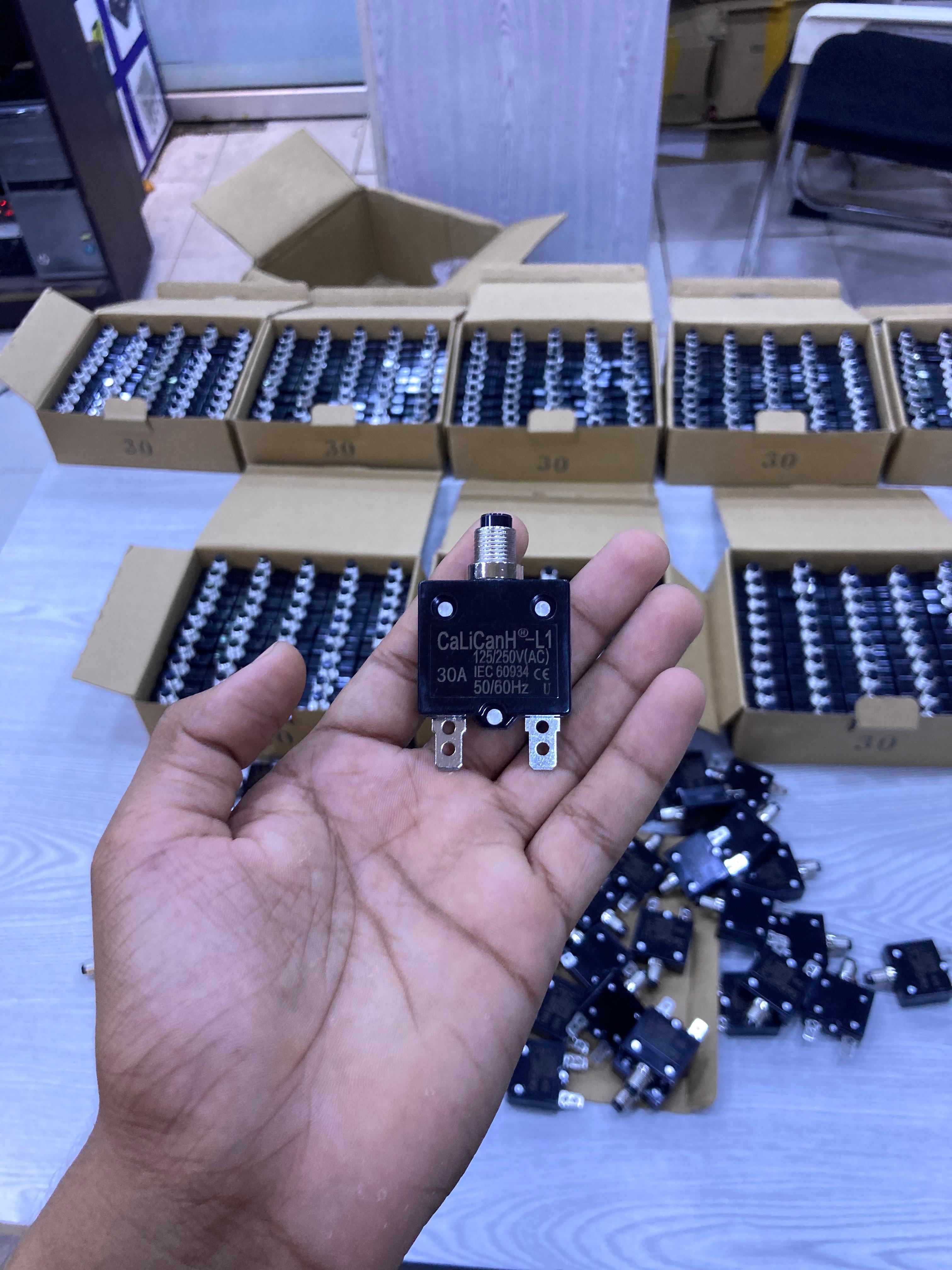

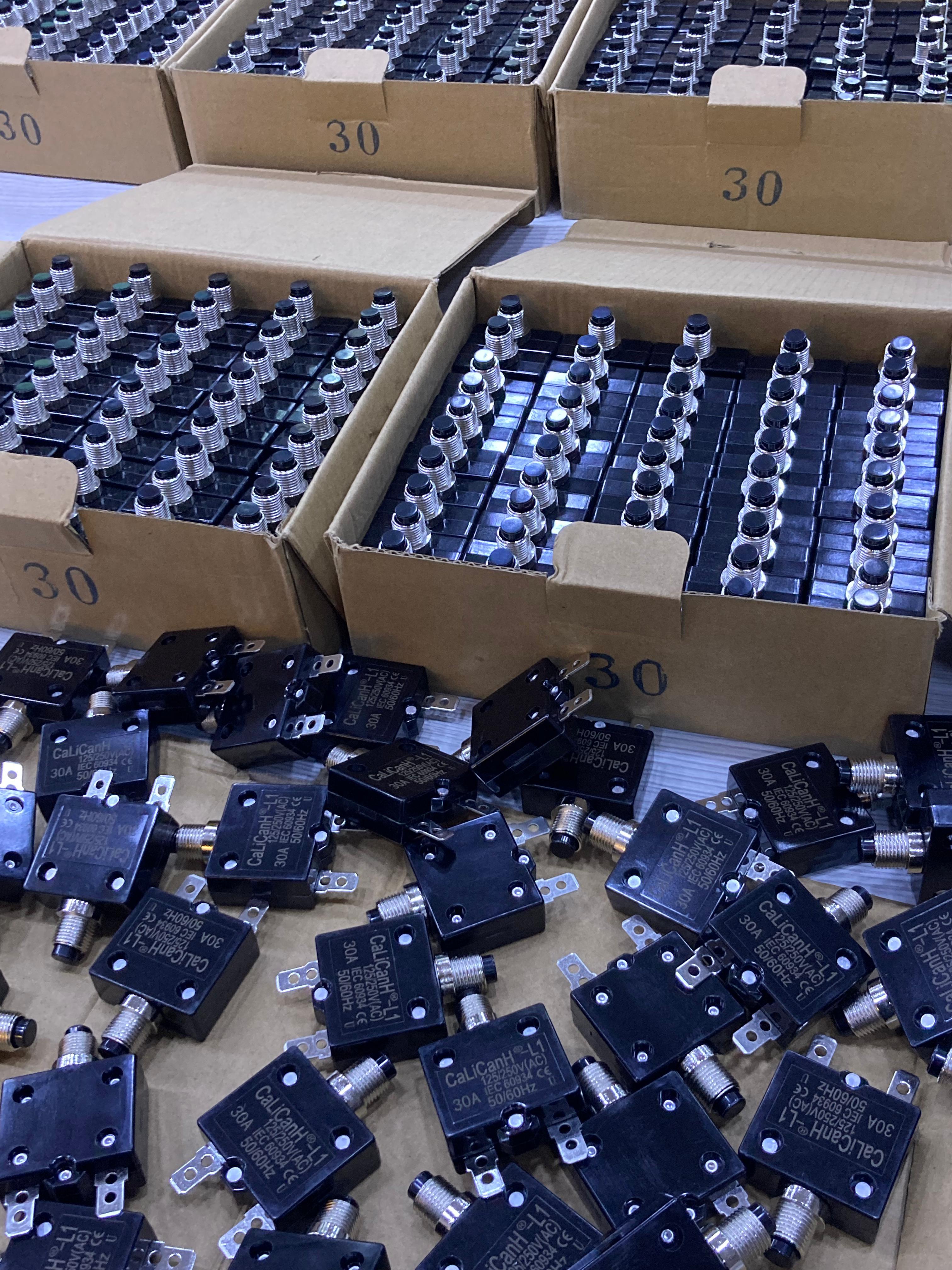

Calicanh-L1 Circuit Breaker 125/250V – Push-Button Thermal Reset Type

The Calicanh-L1 is a single-pole push-button reset thermal circuit breaker rated for 125V and 250V AC, designed to deliver reliable overcurrent protection in compact applications. Part of the trusted L1 Series, this breaker features a thermally actuated trip mechanism that safely interrupts circuit flow in overload situations, with a manual push-button reset for quick restoration.

Built to meet UL1077 and TUV standards, the Calicanh-L1 offers a broad current range from 3A to 60A and supports operation in environments up to 60°C. With high interrupt capacity and a durable body construction, it is ideal for portable electronics, power tools, scooters, and small industrial equipment requiring dependable protection and user-controlled resetting.

Its versatile mounting profile and low voltage drop (<0.25V) make it a reliable option for engineers designing compact control systems and B2B manufacturers seeking cost-effective yet compliant circuit protection. The Calicanh-L1 circuit breaker is both CCC and RoHS certified, offering long-term operational safety and environmental compliance.

Key Specs

Voltage Rating: 125V / 250V AC (also supports up to 50V DC)
Current Range: 3A to 60A (variant dependent)
Breaker Type: Push-Button, Manual Reset
Trip Curve: 135% (trip <1h), 200% (<40s), 300% (<10s)
Interrupt Capacity: 1000A @ 125V AC, 200A @ 250V AC
Operating Temp: –10°C to +60°C
Voltage Drop: <0.25V at rated current
Body Type: Single-Pole Thermal Circuit Breaker
Applications: Scooters, Power Tools, Small Appliances, DIY Electronics, Battery Packs
Certifications: UL1077, TUV, CCC
Compliance: RoHS Compliant
