BM63767S-VA 600V 30A Industrial IGBT Module
Regular price
Rs.0.00

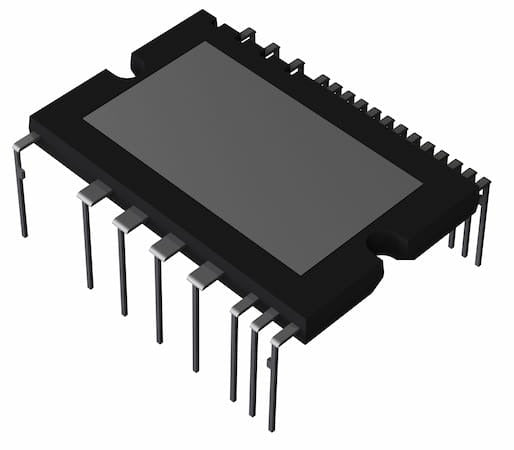

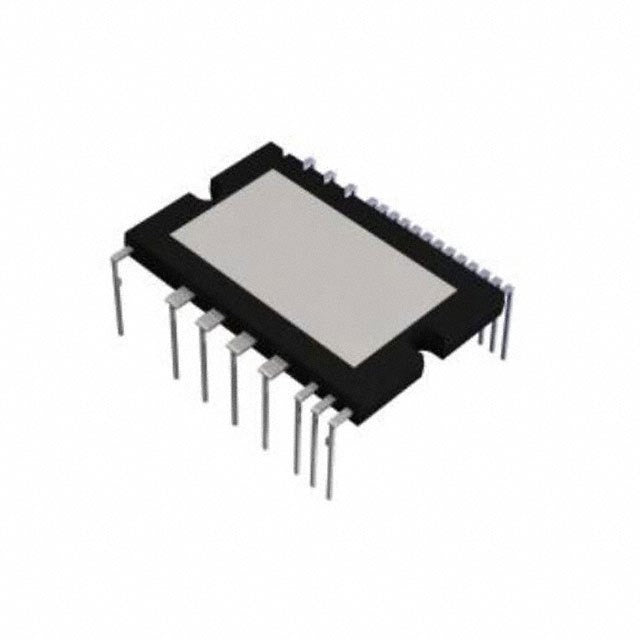

BM63767S-VA IGBT Module
The BM63767S-VA is a 600V IGBT Intelligent Power Module (IPM) designed for high-speed switching applications in industrial and commercial power electronics. This module integrates gate drivers, bootstrap diodes, IGBTs, and flywheel diodes into a single compact package, simplifying circuit design and enhancing system reliability.
With a continuous collector current of 30A and a collector-emitter saturation voltage of 1.7V, the BM63767S-VA delivers efficient power conversion. Its high-side IGBT gate driver utilizes a Silicon On Insulator (SOI) process, providing robust performance with features like high-voltage level shifting and current limit for the bootstrap diode. The low-side IGBT gate driver offers short-circuit protection, under-voltage lockout, and thermal shutdown, ensuring safe and stable operation.
This module is ideal for three-phase inverter applications, including motor drives, uninterruptible power supplies (UPS), and renewable energy systems. Its 25-PowerDIP package allows for easy integration into existing designs, making it a versatile choice for engineers seeking reliable power solutions.
Key Specifications
| Specification | Value / Description |
|---|---|
| Module Type | IGBT Intelligent Power Module (IPM) |
| Collector-Emitter Voltage (V<sub>CE</sub>) | 600V |
| Continuous Collector Current | 30A |
| Collector-Emitter Saturation Voltage (V<sub>CE(sat)</sub>) | 1.7V |
| Power Dissipation | 59W |
| Operating Temperature Range | Up to 150°C |
| Package / Case | 25-PowerDIP Module (1.134", 28.80mm) |
| Configuration | 3-phase Inverter |
| Gate Driver Features | High-side and Low-side drivers with protection features |
| Isolation Voltage | 1500Vrms |
