B500C2300-1500 2.3A 1000V Silicon Bridge Rectifier

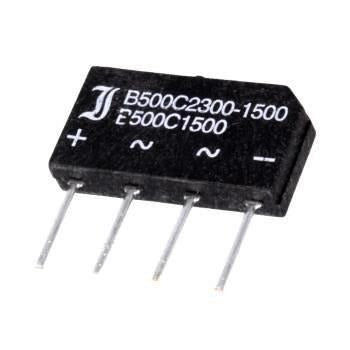

B500C2300-1500 Silicon Bridge Rectifier
The B500C2300-1500 is a single-phase silicon bridge rectifier by Diotec Semiconductor, designed for reliable performance in power electronics. With a nominal current rating of 2.3 A and a reverse voltage rating of 1000 V, it efficiently converts AC to DC power. Its compact SIP (Single In-line Package) design allows straightforward integration into electronic systems for applications such as power supplies, battery chargers, and industrial equipment.
The device features a low forward voltage drop of less than 1.1 V, which reduces energy loss during operation. It can handle peak surge currents up to 50 A, providing stability under transient conditions. The reverse recovery time of approximately 1500 ns ensures consistent performance under varying loads, making it suitable for continuous operation in industrial environments.
The B500C2300-1500 is suitable for industrial and commercial systems that require efficiency and durability. It operates within a temperature range of -55°C to +150°C and complies with RoHS standards. It is used in power conversion systems, uninterruptible power supplies (UPS), and other electronic circuits requiring reliable rectification.
Key Specifications
| Specification | Value |
|---|---|
| Nominal Current | 2.3 A |
| Reverse Voltage (V_RRM) | 1000 V |
| Forward Voltage (V_F) | < 1.1 V |
| Surge Current (I_FSM) | 50 A |
| Reverse Recovery Time (t_rr) | ~1500 ns |
| Operating Temperature (T_j) | -55°C to +150°C |
| Package Type | SIP |
| Dimensions (L x W x H) | 19 x 5 x 10 mm |
| Weight | Approx. 1.8 g |
| Compliance | RoHS |
For detailed technical information, please refer to the Diotec B500C2300-1500 datasheet.
