APT8024JLL 800V 29A Industrial Module
Regular price
Rs.0.00

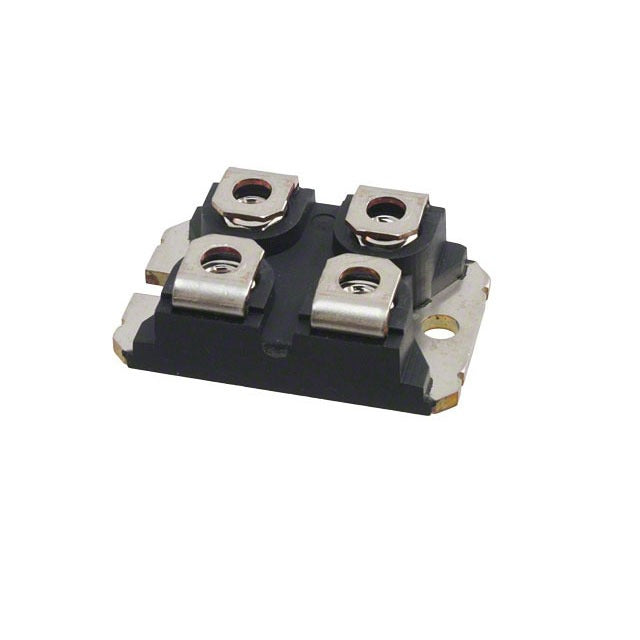

APT8024JLL Power MOSFET Module
The APT8024JLL is a high-performance N-Channel power MOSFET module from Microchip Technology, designed for demanding industrial and commercial applications. With a breakdown voltage of 800 V and a continuous drain current of 29 A at 25°C, it ensures reliable performance in power conversion systems. The module's low on-state resistance (RDS(on)) of 240 mΩ minimizes conduction losses, while its low gate charge (Qg) of 160 nC facilitates efficient switching, making it suitable for high-frequency operations.
Engineered for durability, the APT8024JLL operates over a wide temperature range from -55°C to +150°C, ensuring stable performance in various environmental conditions. Its robust design includes a power dissipation capability of up to 460 W, allowing it to handle substantial thermal loads. The module's SOT-227 package with screw mounting provides secure mechanical attachment and effective heat dissipation, enhancing its reliability in industrial settings.
Ideal for applications such as motor drives, power supplies, and inverters, the APT8024JLL offers a compact solution without compromising on performance. Its combination of high voltage tolerance, low losses, and efficient thermal management makes it a dependable choice for engineers seeking reliable and efficient power management solutions.
Key Specifications
| Specification | Value |
|---|---|
| Drain-Source Voltage (VDS) | 800 V |
| Continuous Drain Current (ID) | 29 A @ 25°C |
| Pulsed Drain Current (IDM) | 116 A |
| On-State Resistance (RDS(on)) | 240 mΩ @ 14.5 A, VGS = 10 V |
| Gate Charge (Qg) | 160 nC @ VGS = 10 V |
| Gate Threshold Voltage (VGS(th)) | 5 V @ ID = 2.5 mA |
| Power Dissipation (PD) | 460 W @ Tc |
| Operating Temperature Range | -55°C to +150°C |
| Package Type | SOT-227-4 (ISOTOP®) |
| Mounting Style | Screw Mount |
| Gate-Source Voltage (VGS) | ±30 V |
| Package Weight | 1.7145 oz (48.6 g) |
