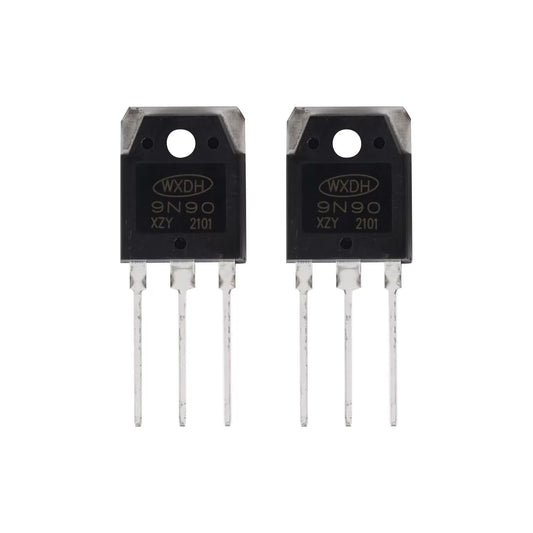

9N90 900V 9A N Channel MOSFET TO-247
Regular price
Rs.150.00
Sale price
Rs.170.00
9N90
The 9N90 is a high-voltage N-channel MOSFET designed for applications that require stable switching performance and dependable operation. It is rated for 900 V drain-source voltage and 9 A continuous drain current. The device uses planar-stripe DMOS technology to maintain predictable switching behaviour and supports operation up to a 150 °C junction temperature. Its TO-247 package enables use in high-power systems such as inverters, SMPS units, UPS systems, and motor-drive circuits.
This MOSFET provides a combination of low conduction loss and reduced dynamic charge. The datasheet specifies an RDS(on) of 1.4 Ω at VGS = 10 V (ID = 4.5 A) and a total gate charge of 46 nC at VDS = 200 V and ID = 9 A. The device includes an internal body diode rated for 9 A forward current and features avalanche energy capability for inductive load environments. These characteristics support use in high-voltage converters, PFC stages, solar inverters, welding equipment, and industrial power systems.
Key Specs
| Parameter | Value |
|---|---|
| Drain-Source Voltage (VDS) | 900 V |
| Continuous Drain Current (ID) | 9 A |
| Pulsed Drain Current (IDM) | 18 A |
| Static RDS(on) | 1.4 Ω @ VGS = 10 V, ID = 4.5 A |
| Total Gate Charge (QG) | 46 nC (VDS = 200 V, VGS = 10 V, ID = 9 A) |
| Input Capacitance (Ciss) | 1900 pF |
| Reverse Transfer Capacitance (Crss) | 23 pF |
| Avalanche Energy (EAS) | 210 mJ |
| Diode Forward Voltage (VSD) | 1.4 V @ IS = 9 A |
| Diode Recovery Time (trr) | 636 ns |
| Power Dissipation (TO-247, TC = 25 °C) | 240 W |
| Maximum Junction Temperature | 150 °C |
| Package | TO-247 |
