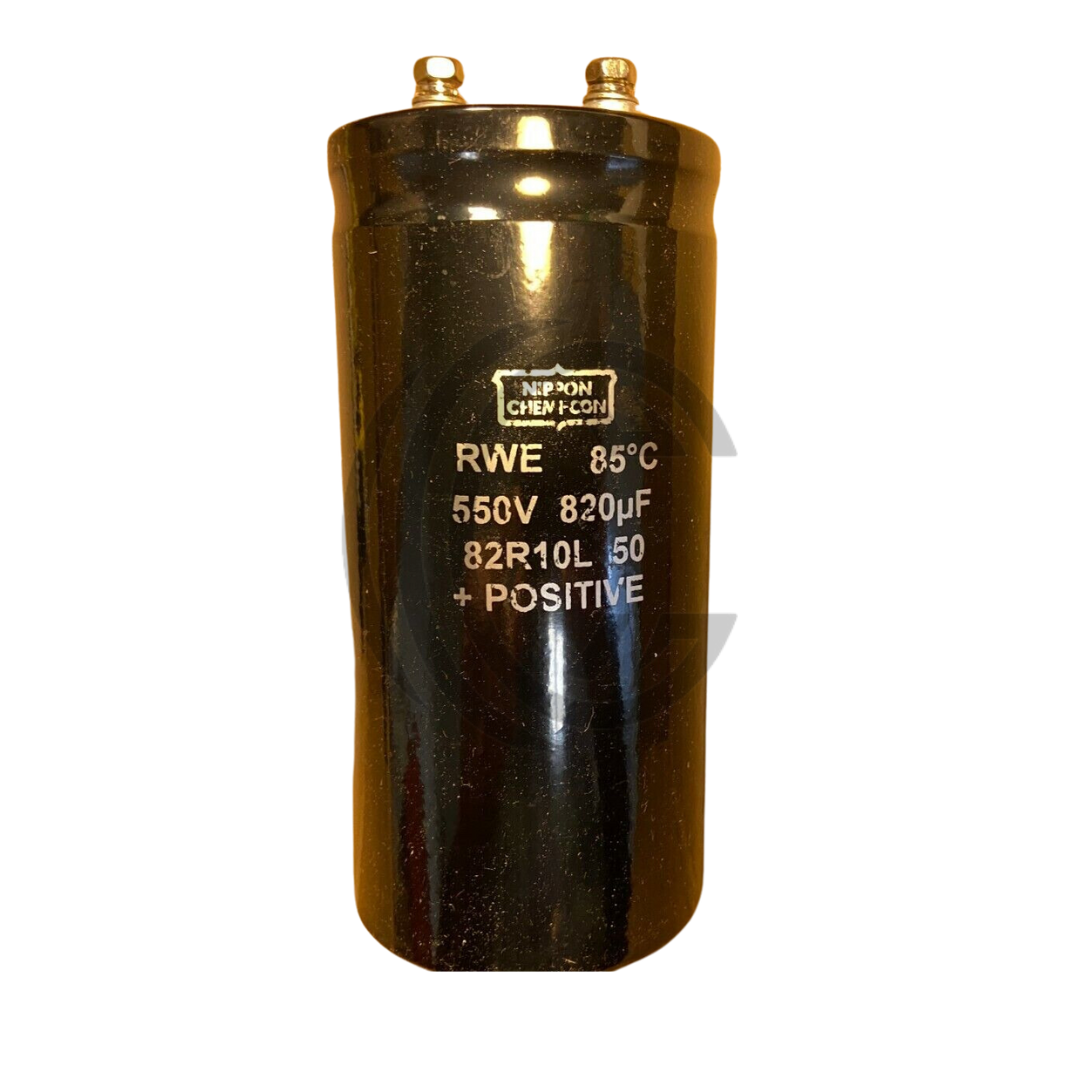

820uF 550V Snap In Electrolytic Capacitor

820uF 550V Snap‑In Electrolytic Capacitor – High Voltage, Industrial Grade The 820uF 550V snap-in aluminum electrolytic capacitor is engineered for high-voltage power supply applications, including industrial inverters, DC link circuits, and energy storage systems. It features ±20% capacitance tolerance, low ESR (~150mΩ), and high ripple current handling (~3.7A at 120Hz), making it well-suited for demanding conditions that require stable voltage filtering and energy buffering.

Its robust aluminum construction ensures long operating life—rated at 3,000 hours at 85°C—and consistent performance across a wide temperature range from −40°C to +105°C. Housed in a radial snap-in can measuring approximately 45mm in diameter by 70mm in height, this capacitor offers secure mounting and efficient thermal management in compact layouts.

RoHS compliant and designed for high efficiency, it is commonly used in renewable energy systems, industrial control equipment, power factor correction units, and other high-voltage electronics where reliability and endurance are key.

Key Specs Capacitance: 820uF Voltage Rating: 550V DC Tolerance: ±20% Ripple Current: ~3.7A @ 120Hz ESR: ~150mΩ Load Life: 3,000 hours @ 85°C Operating Temp: −40°C to +105°C Dimensions: ~45mm diameter × 70mm height Package: Snap‑in radial Compliance: RoHS Applications: Industrial inverters, energy storage, DC link, power supplies, high-voltage filtering
