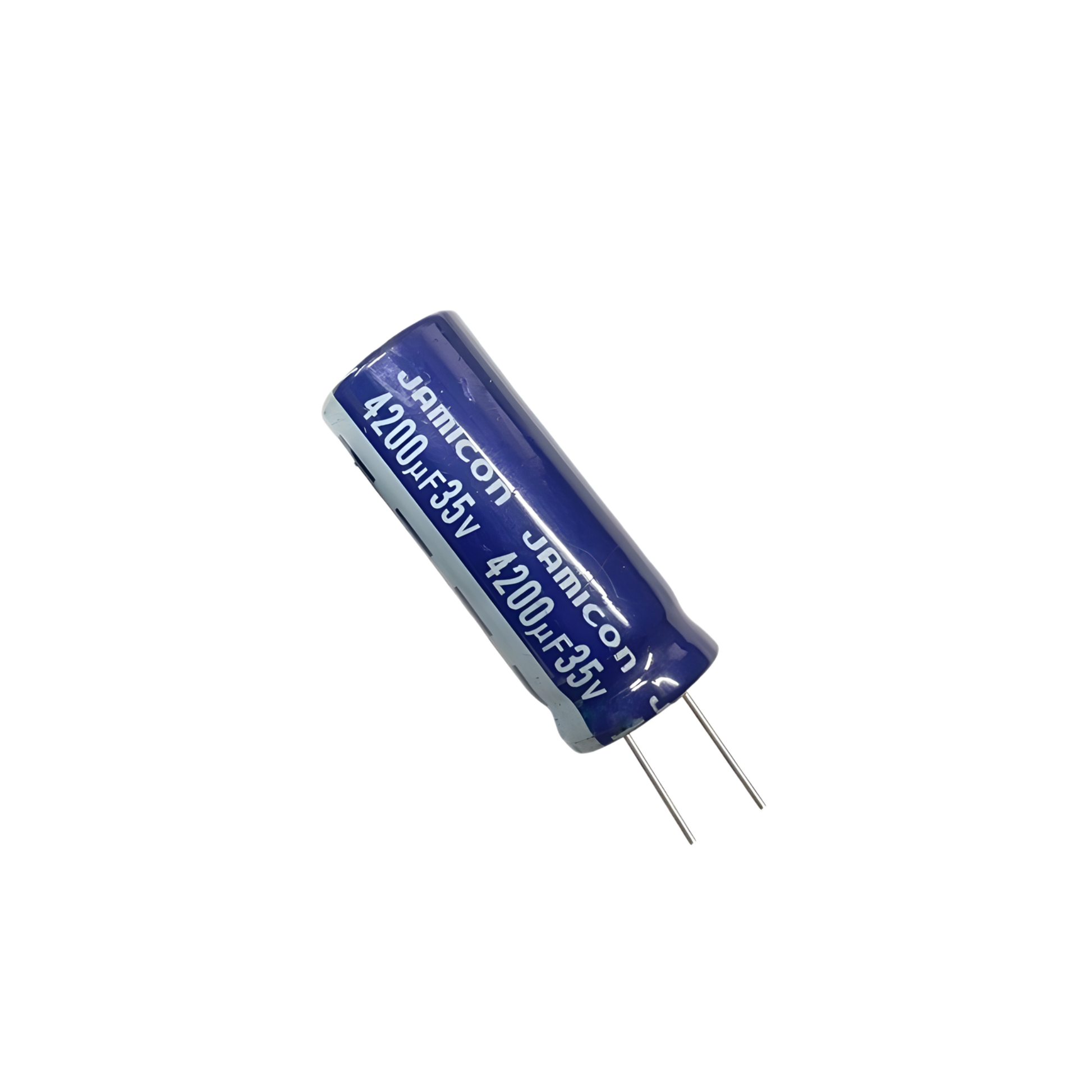

35V 4200µF Electrolytic Capacitor
The 35V 4200µF electrolytic capacitor provides bulk energy storage and voltage smoothing in power electronics. With a 35-volt rating and 4200 µF capacitance, it helps reduce ripple and maintain stable voltage in DC-DC converters, motor drivers, LED drivers and audio amplifier power stages. Its aluminum electrolytic construction supports long operating life under typical thermal and ripple conditions.
Designed for use in industrial and commercial applications, this capacitor combines high ripple tolerance with low equivalent series resistance (ESR). Typical specifications include a wide operating temperature range (−55 °C to +105 °C), capacitance tolerance of ±20 %, and controlled leakage current (0.01·C·V or 3 µA, whichever is larger). These characteristics make it suitable for a variety of circuits requiring stable capacitance over time.
Case sizes vary among manufacturers and specific series, with typical radial form factors that fit space-limited PCB layouts. Because ESR, ripple current and physical dimensions are dependent on the exact part version, engineers should consult the manufacturer datasheet for precise values.
Key specs
| Parameter | Typical value / range |
|---|---|
| Capacitance | 4200 µF |
| Voltage rating | 35 V DC |
| Capacitance tolerance | ±20 % |
| Temperature range | −55 °C to +105 °C |
| Leakage current | 0.01·C·V (µA) or 3 µA (whichever is larger) |
| ESR (typical) | Case-dependent (often ~0.02–0.04 Ω) |
| Rated ripple current | Case-dependent (consult datasheet) |
| Endurance | Case-dependent (often several thousand hours at 105 °C) |
| Type / construction | Aluminum electrolytic, radial / through-hole |
