K2645 600V, 9A N Channel MOSFET
Regular price
Rs.150.00
Sale price
Rs.200.00
K2645
The K2645 is an N‑channel power MOSFET from Fuji Electric designed for high-efficiency switching in industrial and commercial power electronics. Rated at 600 V and 9 A, it reduces conduction and switching losses with a low on-resistance of 0.18 Ω and fast switching speed of 15 ns. It is suitable for DC‑DC converters, power amplifiers, switching regulators, motor drives, UPS units, and renewable energy systems.

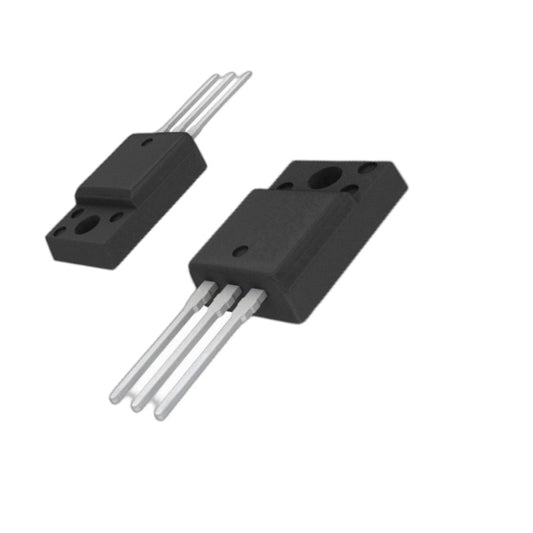

The device comes in a TO‑220F fully isolated package that supports stable operation up to 150 °C and allows effective heat dissipation. Its avalanche-rated structure and low total gate charge provide stable switching under high-frequency loads, reducing stress on the MOSFET and surrounding circuitry.
The K2645 is suitable for applications that require voltage stability, thermal resilience, and long operational life. Its ability to handle high voltages and currents, combined with reliable switching characteristics, makes it appropriate for industrial automation, energy infrastructure, and telecom power supply design.
Key Specs
| Parameter | Specification |
|---|---|
| Drain‑Source Voltage (Vₙₙ) | 600 V |
| Continuous Drain Current (I_D) | 9 A |
| Pulsed Drain Current (I_D(pulse)) | 32 A |
| Drain‑Source On‑State Resistance (R_DS(on)) | ~0.18 Ω (at V_GS = 10 V) |
| Gate‑Source Voltage (V_GS max) | ±30 V |
| Maximum Power Dissipation (P_D) | 50 W |
| Package | TO‑220F (fully isolated) |
| Operating / Storage Temperature | –55 °C to 150 °C |
| Typical Applications | DC‑DC converters, UPS, power amplifiers |
