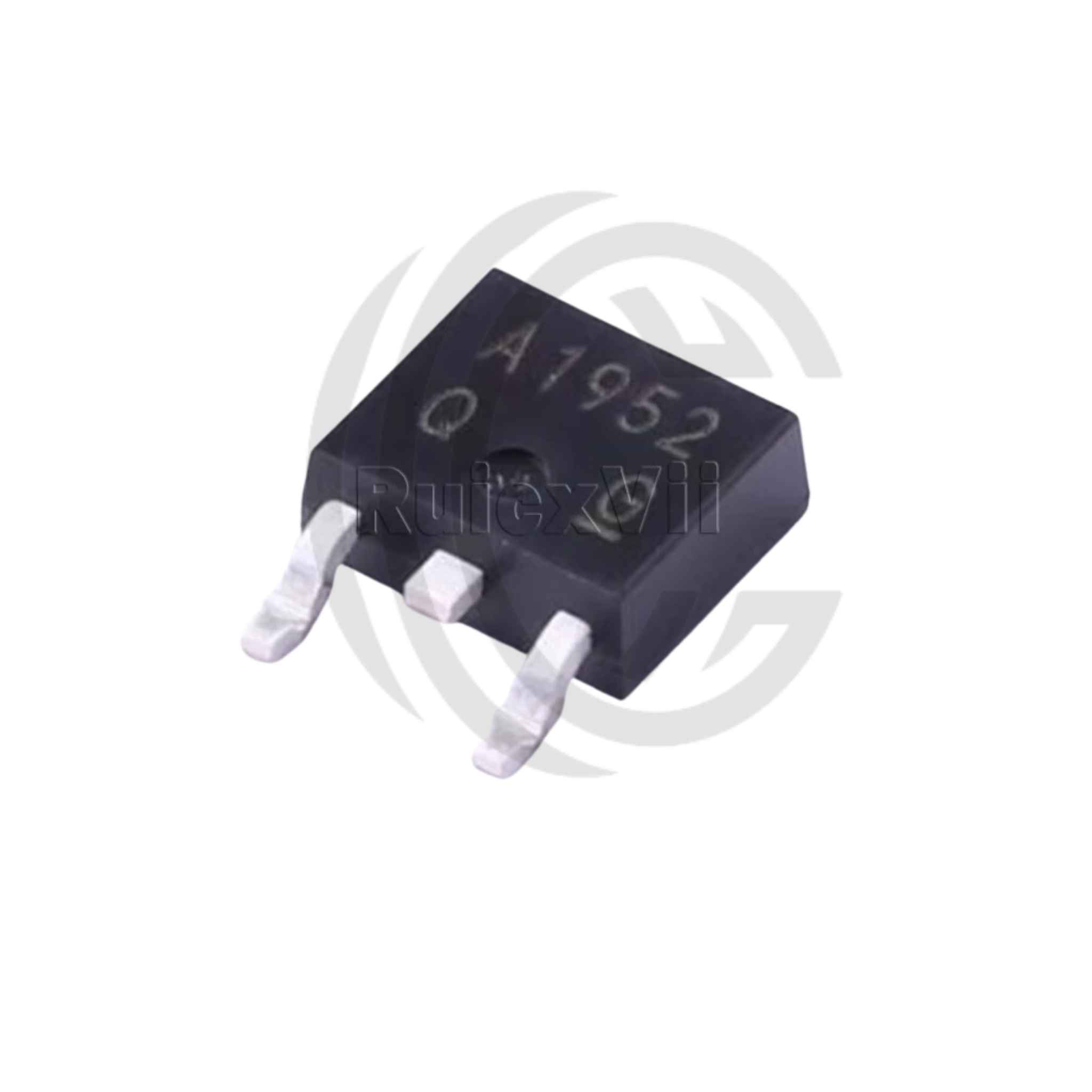

2SA1952 60V 5A High Power TO-220 PNP Transistor

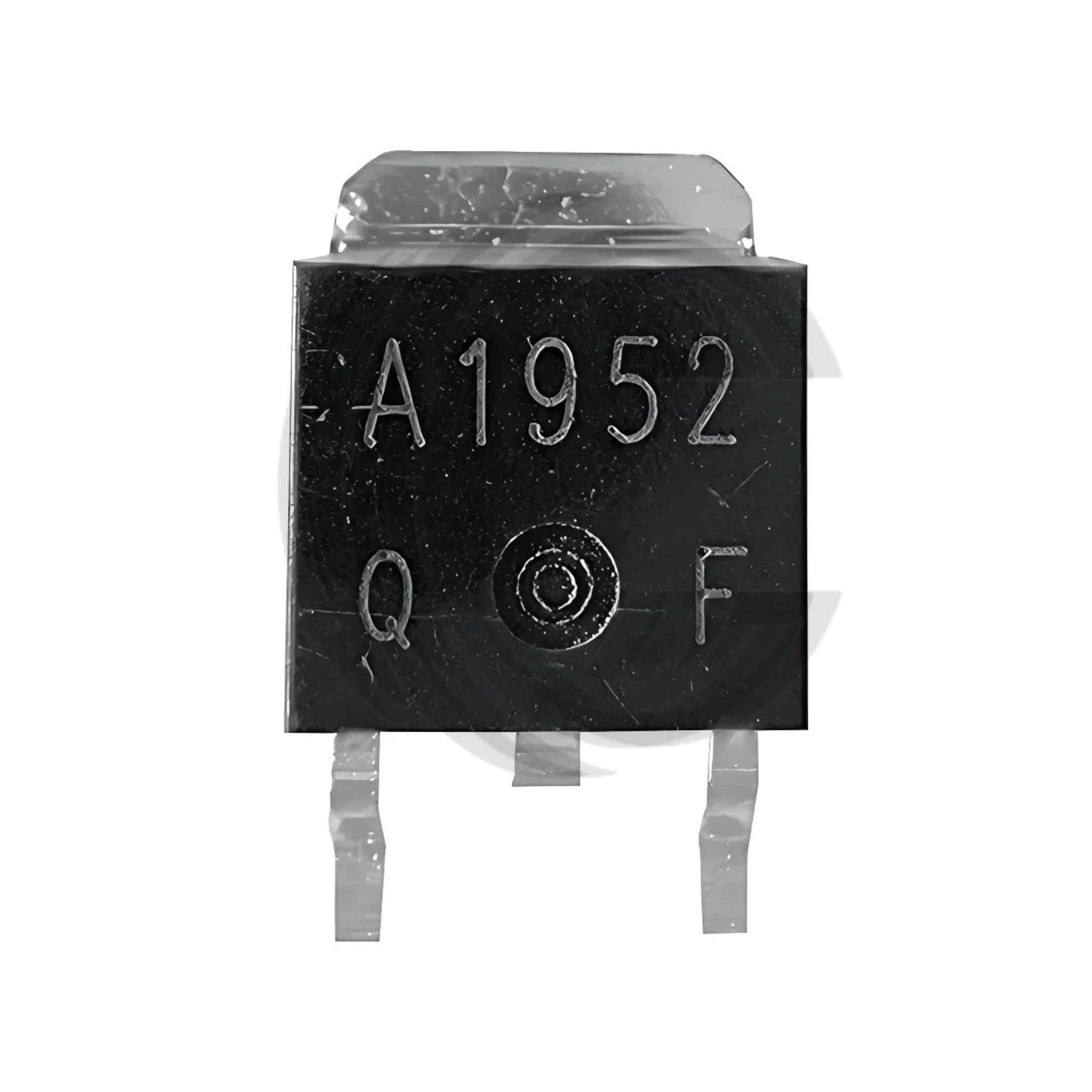

2SA1952 PNP Power Transistor – -60V, -5A, CPT3 (SC-63) Package by ROHM Semiconductor

The 2SA1952 is a high-speed PNP transistor rated at -60V and -5A, engineered by ROHM Semiconductor for fast switching and amplification in industrial electronics. With a low saturation voltage of -0.3V at 3A and a fast fall time of just 0.15µs, this power transistor ensures efficient signal processing and minimal heat generation during operation.

Its CPT3 (SC-63) package allows for compact installation with effective thermal management, making it well-suited for high-frequency applications such as motor drivers, LED lighting, power supply systems, and automotive circuits. The RoHS-compliant design also supports environmentally conscious manufacturing.

Engineers prefer the 2SA1952 for its dependable performance in dynamic loads, efficient power delivery, and compatibility with complementary NPN transistors like the 2SC5103. This component is a reliable choice for demanding B2B environments requiring stability and long-term durability.

Key Specs Voltage Rating: -60V Current Rating: -5A Continuous Type: PNP Bipolar Power Transistor Package: CPT3 (SC-63) Saturation Voltage: -0.3V at 3A Switching Speed: Fall time 0.15µs Applications: Motor Drivers, LED Lighting, Power Supplies, Automotive Circuits Brand: ROHM Semiconductor Compliance: RoHS
