20D751K 750V Surge Protection MOV Varistor

20D751K 750 V Varistor – 6.5 kA Surge Protection, 20 mm Disc Package

The 20D751K is a radial disc metal‑oxide varistor (MOV) rated for approximately 750 V clamping voltage (V₁mA) and designed for high-energy surge protection—notably up to 6.5 kA peak current on an 8/20 µs waveform. It protects circuits from transient overvoltages such as lightning strikes, switching transients, and fast voltage spikes .

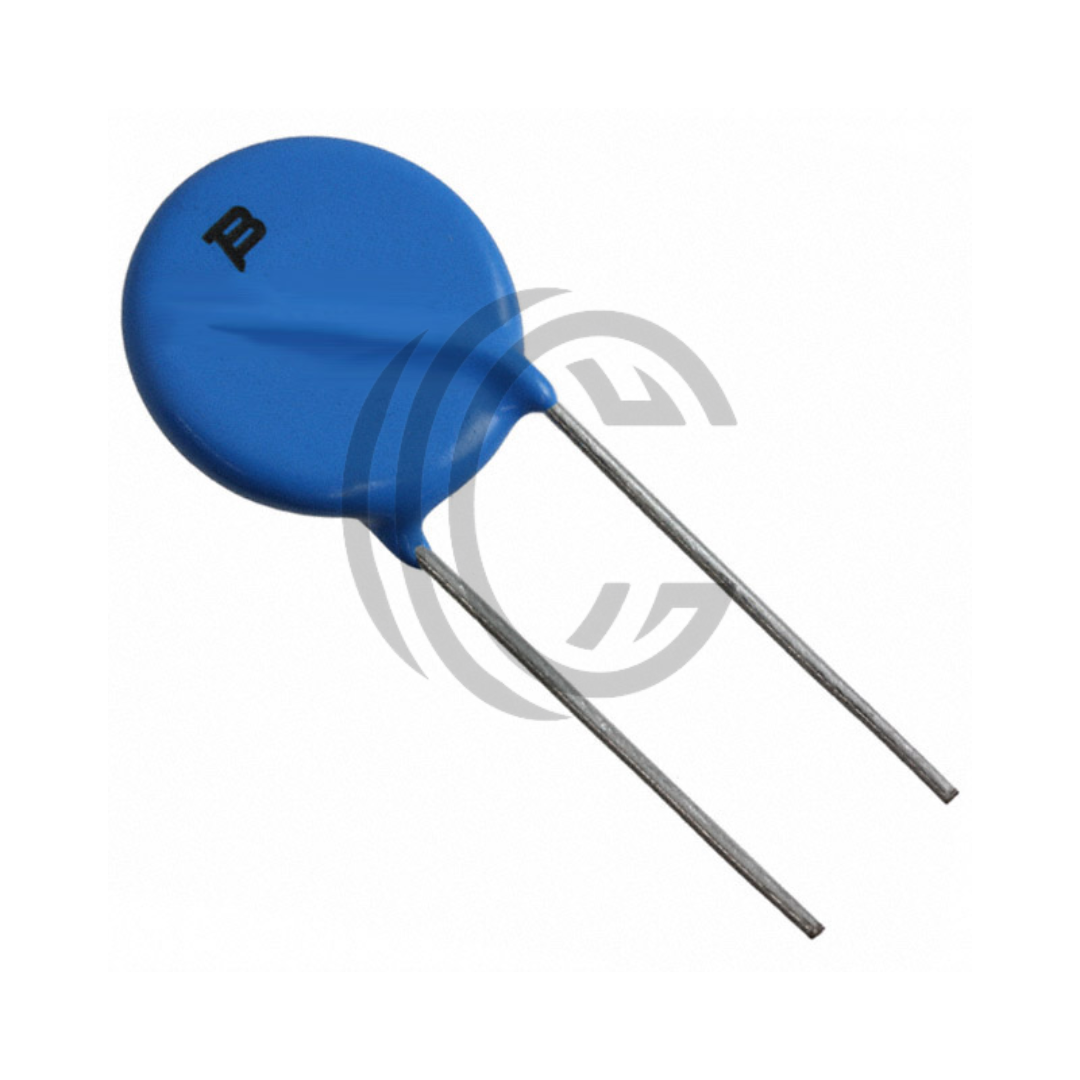

The device supports up to 615 V DC, handles over 230 J of energy, and typically clamps around 1240 V during high-current surges. It boasts fast \<25 ns response time, low leakage current, and compact 20 mm disc dimensions with straight or kinked leads for reliable PCB mounting. Operating temperature ranges from –40 °C to +85 °C (storage up to +125 °C).

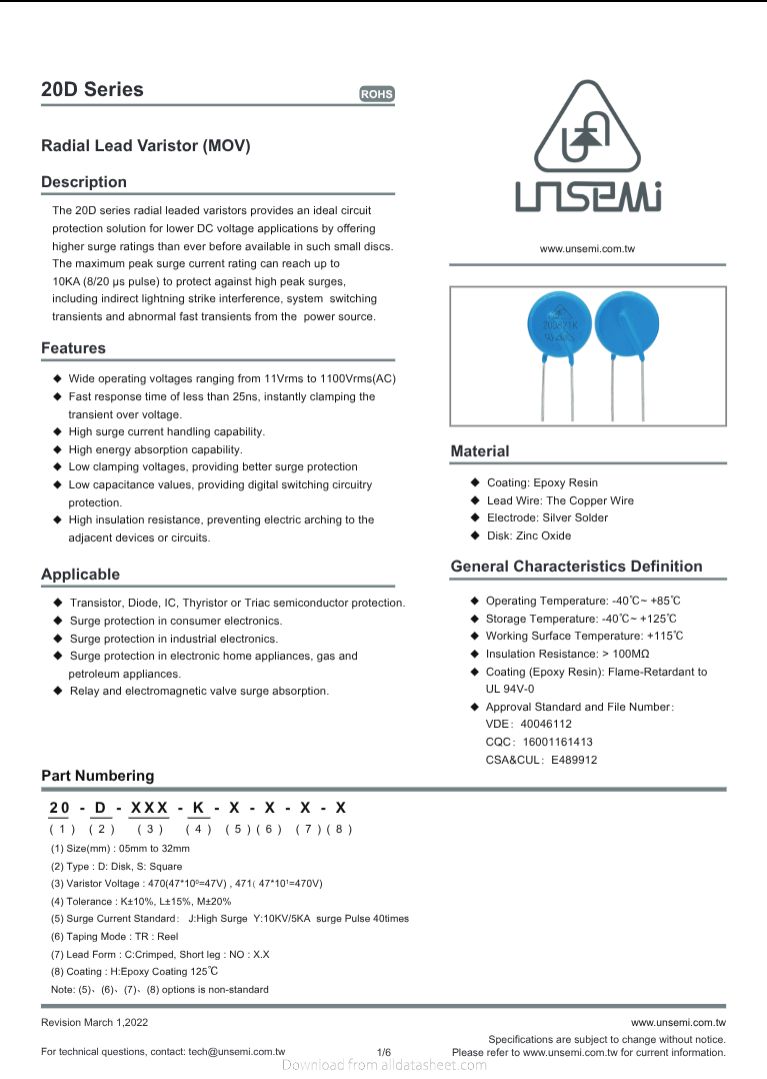

Key Specs Varistor Voltage (V₁mA): ~750 V (nominal, ±10%) Maximum DC Voltage: 615 V Peak Pulse Current (8/20 µs): 6.5 kA Maximum Clamping Voltage: ~1240 V Absorbed Energy: ~230 J Response Time: \<25 ns Capacitance: ~636 pF @ 1 kHz Disc Diameter: 20 mm radial package Operating Temp: –40 °C to +85 °C (storage to +125 °C) Compliance: RoHS, UL1449 certified (MOV standard)

Suitable for surge protection in industrial control circuits, consumer electronics, power supplies, and semiconductor devices equipped with vulnerable ICs, diodes, thyristors or relays — offering a durable defense against transient fault conditions.
