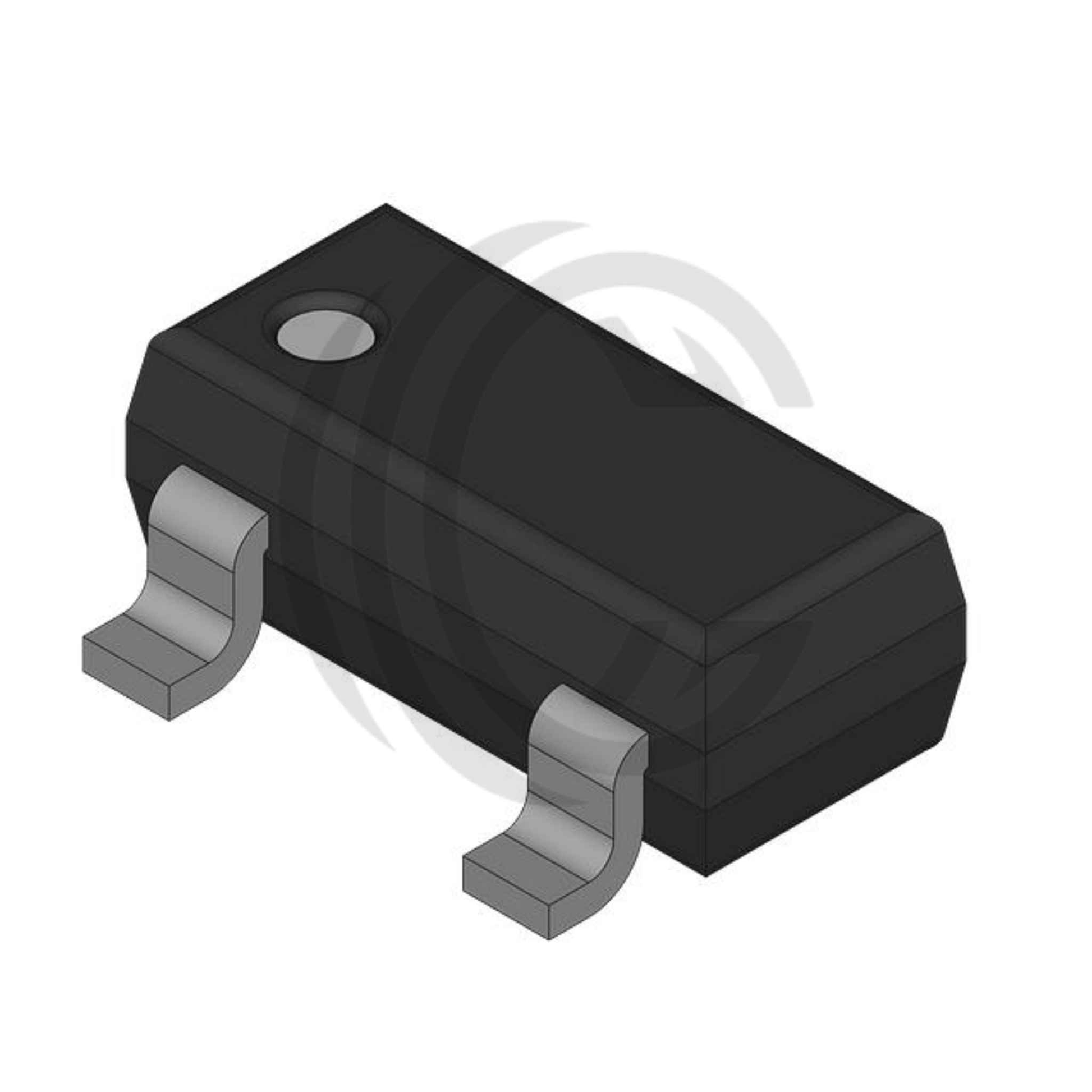

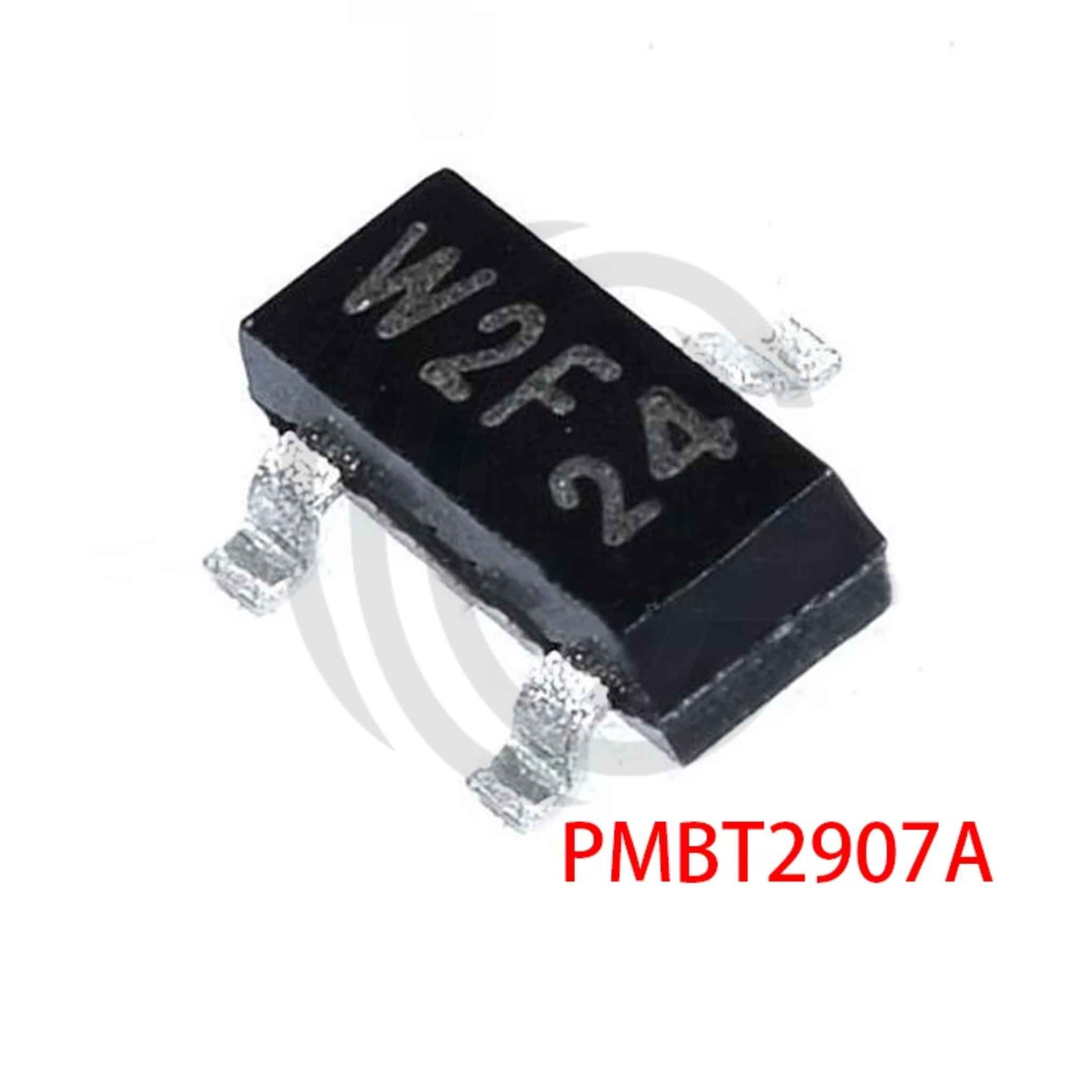

PMBT2907A 60V 600mA SOT23 Transistor – PNP Surface Mount by Nexperia PMBT2907A is a compact PNP transistor rated at 60V and 600mA, housed in a SOT23 (TO-236AB) surface-mount package. Designed by Nexperia, it delivers reliable performance in high-current switching and linear amplification. This transistor is AEC-Q101 qualified for automotive use and supports efficient signal processing and power control across demanding environments. With its low saturation voltage and high current gain, the PMBT2907A ensures stable operation in automotive systems, industrial equipment, and consumer electronics.
Thanks to its compatibility with automated tape-and-reel packaging, this component simplifies assembly for large-scale production. Engineers prefer the PMBT2907A for its space-saving footprint, thermal stability, and switching efficiency. Ideal for use in ADAS modules, powertrain systems, LED drivers, and analog circuits, this PNP transistor offers a dependable solution for high-performance electronic applications.
Key Specs Voltage Rating: 60V Current Rating: 600mA Polarity: PNP Package: SOT23 (TO-236AB) Gain (hFE): High DC current gain Saturation Voltage: Low Compliance: AEC-Q101 Qualified Applications: Automotive ADAS, Powertrain, Motor Control, Signal Amplification, Consumer Electronics Brand: Nexperia
