IRFR120 MOSFET 100V 7.7A N-Channel Power Transistor – Vishay TO-252
The IRFR120 MOSFET is a compact N-channel power transistor rated for 100V and 7.7A continuous current. Manufactured by Vishay, this component is designed for use in motor drivers, regulated power supplies, and DC-DC converter circuits. With low RDS(on) of 0.27 ohms and fast switching capability, it minimizes power loss and improves circuit efficiency.

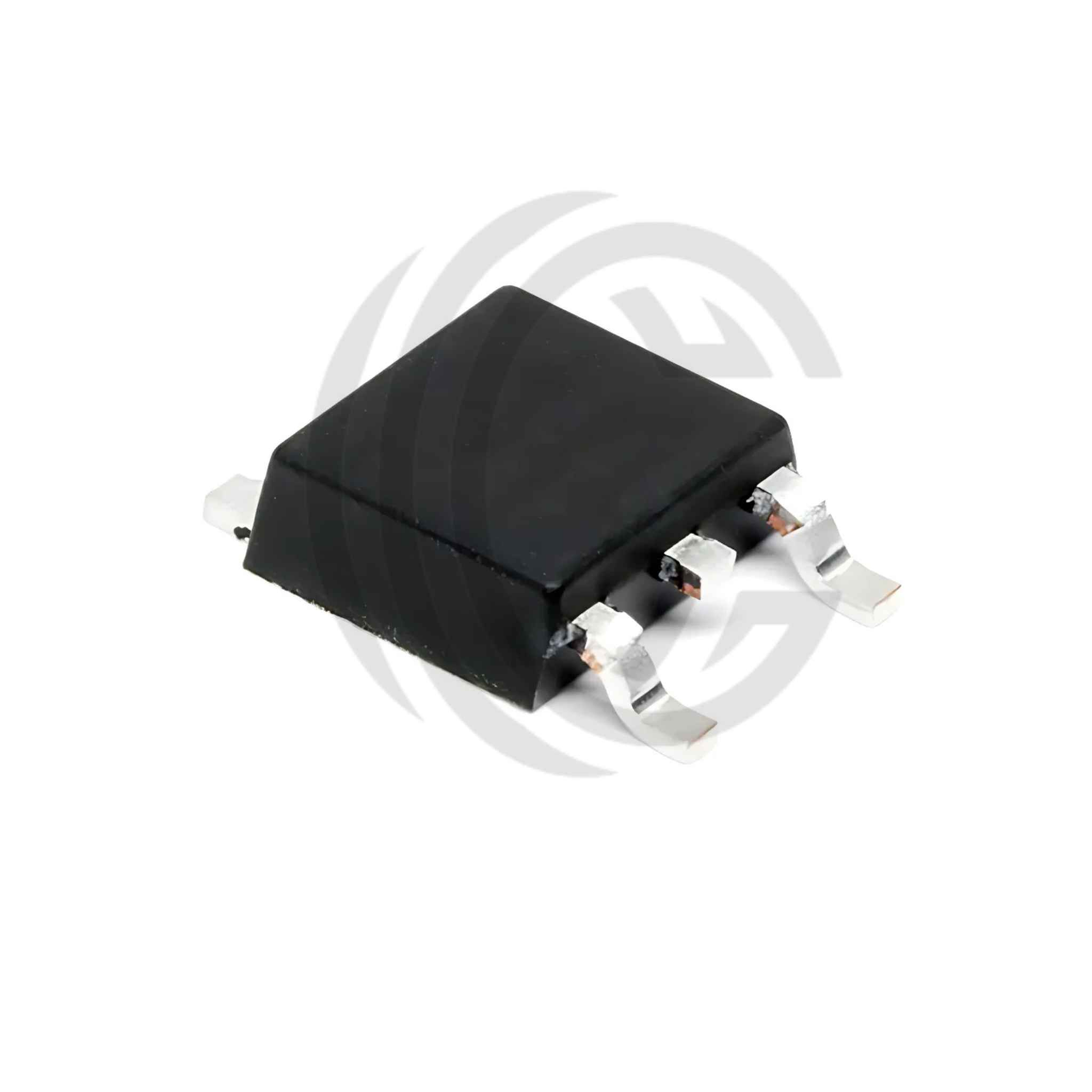

Built in a TO-252 surface-mount package, the IRFR120 MOSFET offers solid thermal performance and fits easily into compact PCB designs. Its low gate charge enables stable performance in high-frequency switching applications. This transistor is widely used in telecommunications, automation equipment, and industrial electronics.
The IRFR120 MOSFET helps engineers create space-saving designs where steady current, voltage control, and heat management are key. Its combination of fast switching and reliable current handling makes it suitable for energy-sensitive systems.
Key Specs Voltage Rating: 100V Current Rating: 7.7A Continuous Technology: N-Channel Package: TO-252 On-Resistance: 0.27Ω Switching: Fast, low gate charge Applications: Power supplies, telecom, motor control, industrial electronics Brand: Vishay Compliance: RoHS
