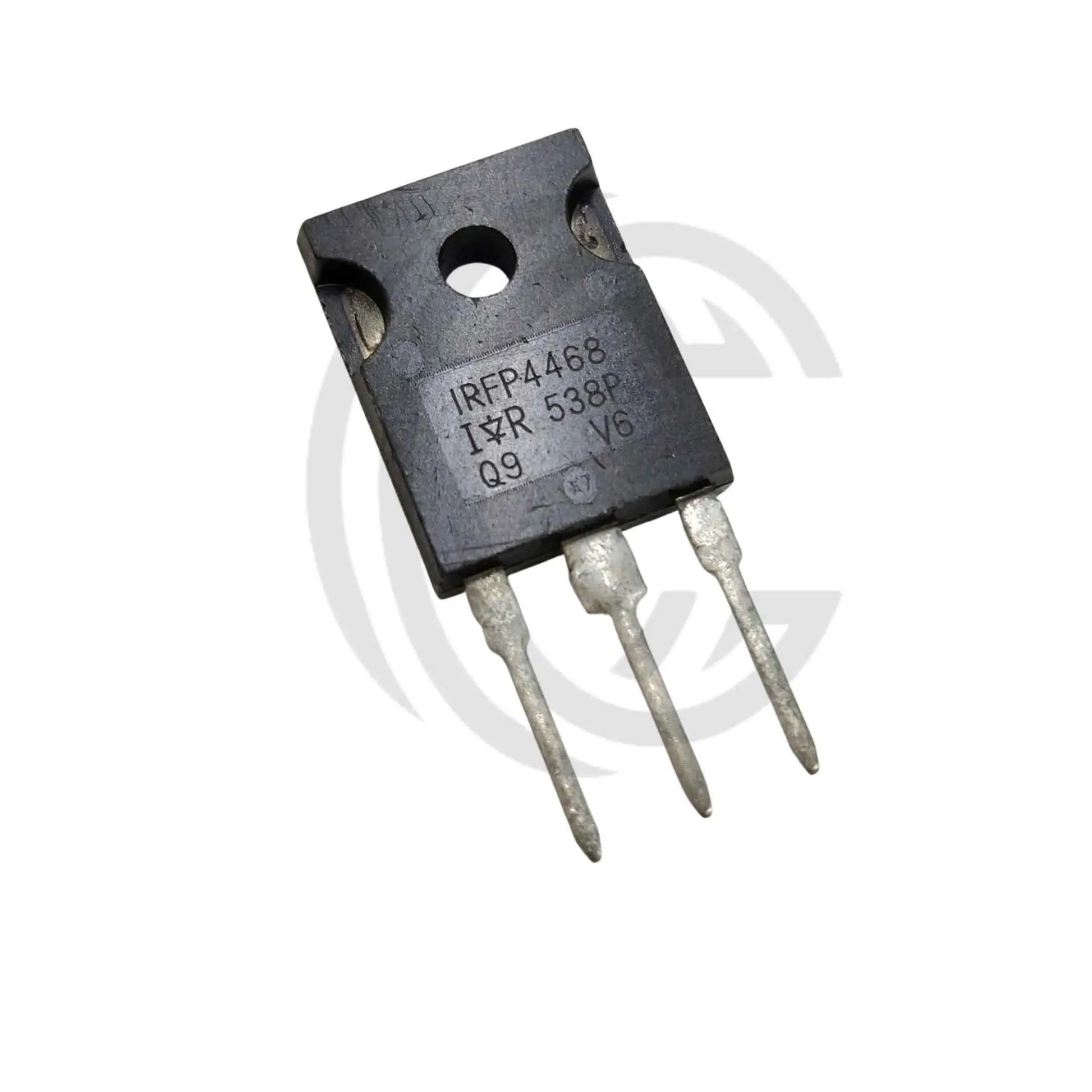

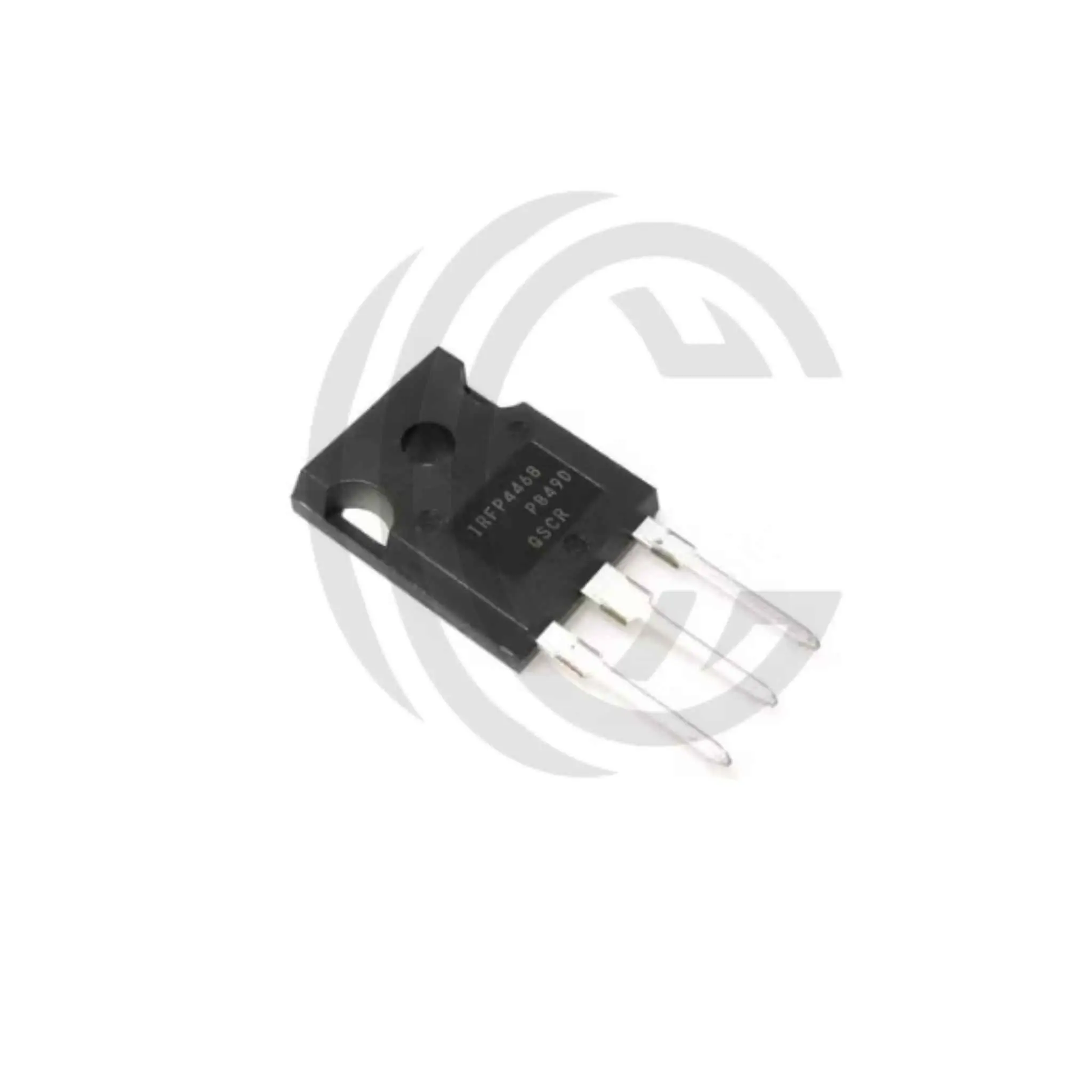

IRFP4468 MOSFET 100V 290A N-Channel – TO-247AC Package by Infineon
IRFP4468 MOSFET is a powerful N-Channel transistor rated at 100V and 290A, designed by Infineon Technologies for high-efficiency switching in power electronics. With ultra-low on-resistance of just 2.6mΩ, this advanced MOSFET ensures minimal conduction losses and superior thermal stability. Ideal for synchronous rectification, motor drive control, DC-DC converters, and renewable energy systems, it’s widely used in industrial automation and automotive applications.
The IRFP4468 features a TO-247AC package for strong heat dissipation and supports operating temperatures up to 175°C. Its gate threshold voltage of 2.0–4.0V allows easy integration into low-voltage drive circuits. Built with rugged avalanche-tested technology, this component provides long-term reliability and high performance in harsh conditions.
Engineers and B2B procurement teams prefer IRFP4468 for its durability, low gate charge, and fast switching response. Its RoHS-compliant design meets international standards for sustainable electronics. Whether you're designing inverters, UPS systems, or high-power battery management units, this transistor delivers consistent, scalable results.

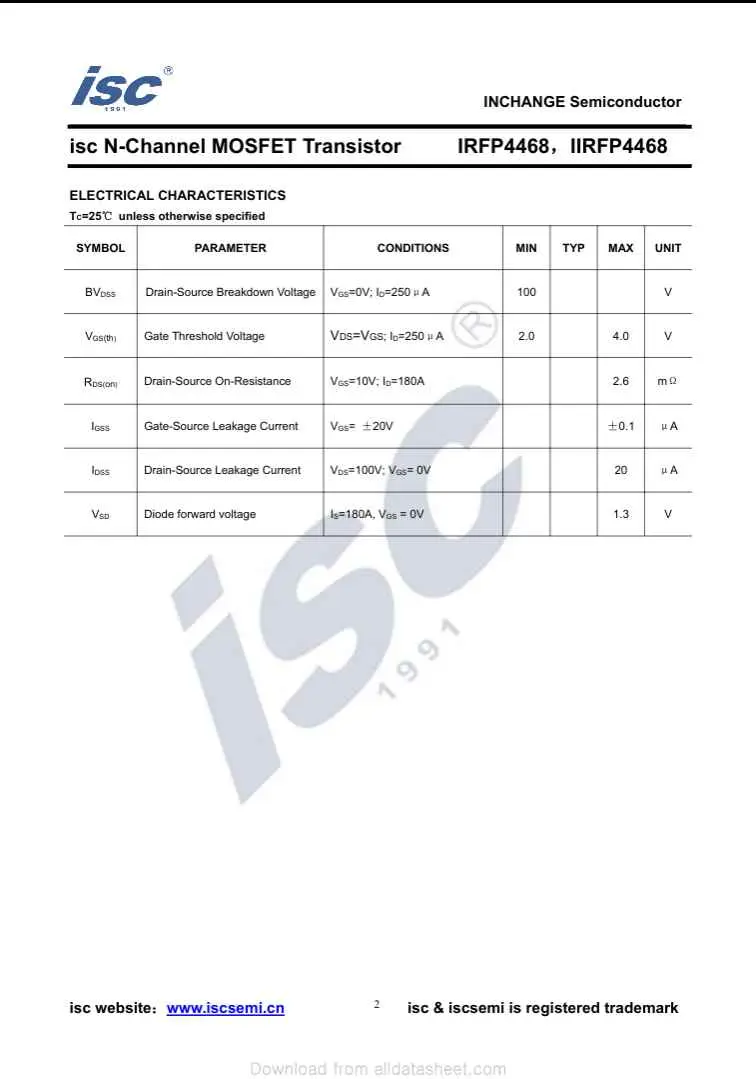

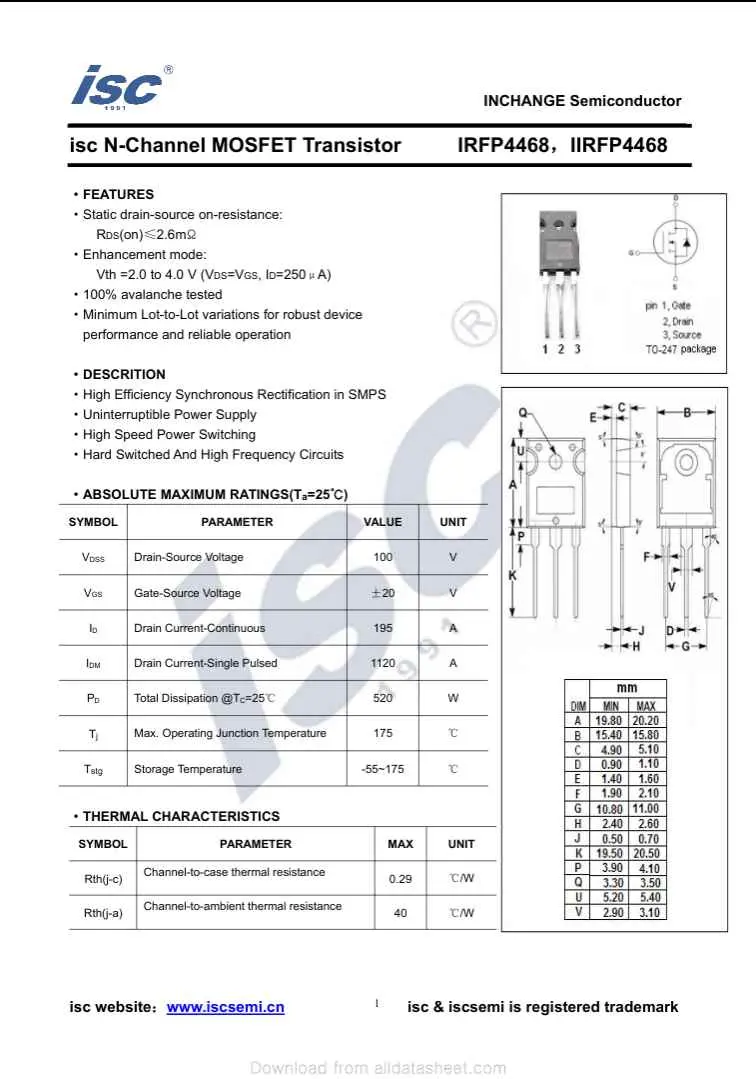

Key Specs Voltage Rating: 100V Current Rating: 290A Continuous Technology: N-Channel MOSFET Package: TO-247AC On-Resistance: 2.6mΩ Gate Threshold Voltage: 2.0–4.0V Total Gate Charge: 360nC Operating Temp: Up to 175°C Applications: UPS, Motor Drives, BMS, DC/DC Converters, Solar Inverters Brand: Infineon Technologies Compliance: RoHS & Pb-Free
