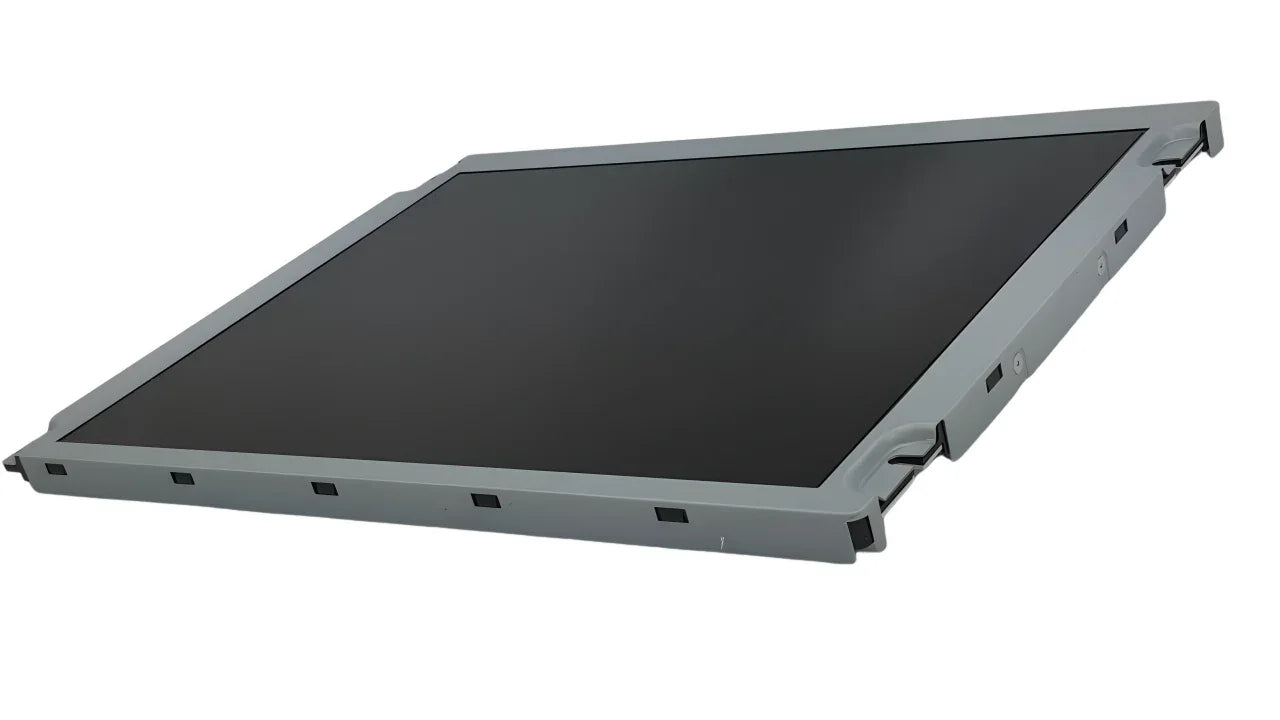

Hitachi TX26D12VM0AAA 10.4‑inch TFT LCD Display Panel
Regular price
Rs.0.00
TX26D12VM0AAA – 10.4‑inch Industrial TFT LCD Display Panel
The TX26D12VM0AAA is a 10.4‑inch industrial TFT LCD display panel from Hitachi, engineered to deliver reliable visual performance and consistent image quality. Designed with an a‑Si TFT‑LCD structure and IPS Pro technology, this display offers SVGA resolution (800 × 600) with a wide 85° viewing angle in all directions, ensuring stable and uniform images from multiple perspectives. Its LVDS 20‑pin interface supports both 6‑bit and enhanced 8‑bit color depths, enabling up to 16.7 million colors with a 60 Hz refresh rate, which is essential for industrial HMI, automation control screens, and commercial equipment where clear visual feedback matters.
Built for durability and wide‑temperature operation, the TX26D12VM0AAA incorporates a white LED backlight system with an integrated LED driver, providing 450 cd/m² brightness and an 800:1 contrast ratio for visibility in varied lighting conditions. Its compact dimensions and lightweight profile support straightforward integration into systems with space constraints. The panel’s wide operating temperature range (‑20 °C to +70 °C) and long backlight life (70,000 hours typical) make it suitable for 24/7 industrial use, including factory automation interfaces, process control units, and medical display applications.
With a flat rectangular form factor, active matrix design, and RoHS compliance, the TX26D12VM0AAA panel is designed for industrial and commercial display applications requiring reliable and stable visual output. Its combination of robust optical performance, efficient signal interface, and extended environmental tolerances supports deployment in systems where consistent display quality and long operational life are key prerequisites.
Key Specs – TX26D12VM0AAA
| Specification | Value |
|---|---|
| Model | TX26D12VM0AAA |
| Type | Industrial TFT LCD Display Panel |
| Diagonal Size | 10.4 inch |
| Resolution | 800 × 600 (SVGA) |
| Display Mode | Transmissive a‑Si TFT, IPS Pro, Normally Black |
| Viewing Angles (L/R/U/D) | 85° / 85° / 85° / 85° (Typ.) |
| Brightness (Typ.) | 450 cd/m² |
| Contrast Ratio (Typ.) | 800:1 |
| Colors | Up to 16.7M (6‑bit + Hi‑FRC) |
| Response Time | ~25 ms (Typ.) |
| Refresh Rate | ~60 Hz |
| Signal Interface | LVDS (1‑ch, 20‑pin, 6/8‑bit) |
| Backlight | WLED with Integrated Driver |
| Backlight Life | ~70,000 hours |
| Operating Temp Range | ‑20 °C to +70 °C |
| Storage Temp Range | ‑30 °C to +80 °C |
| Active Area | ~211.2 × 158.4 mm |
| Outline Dimensions | ~243 × 185.1 × 11 mm |
| Weight | ~560 g |
