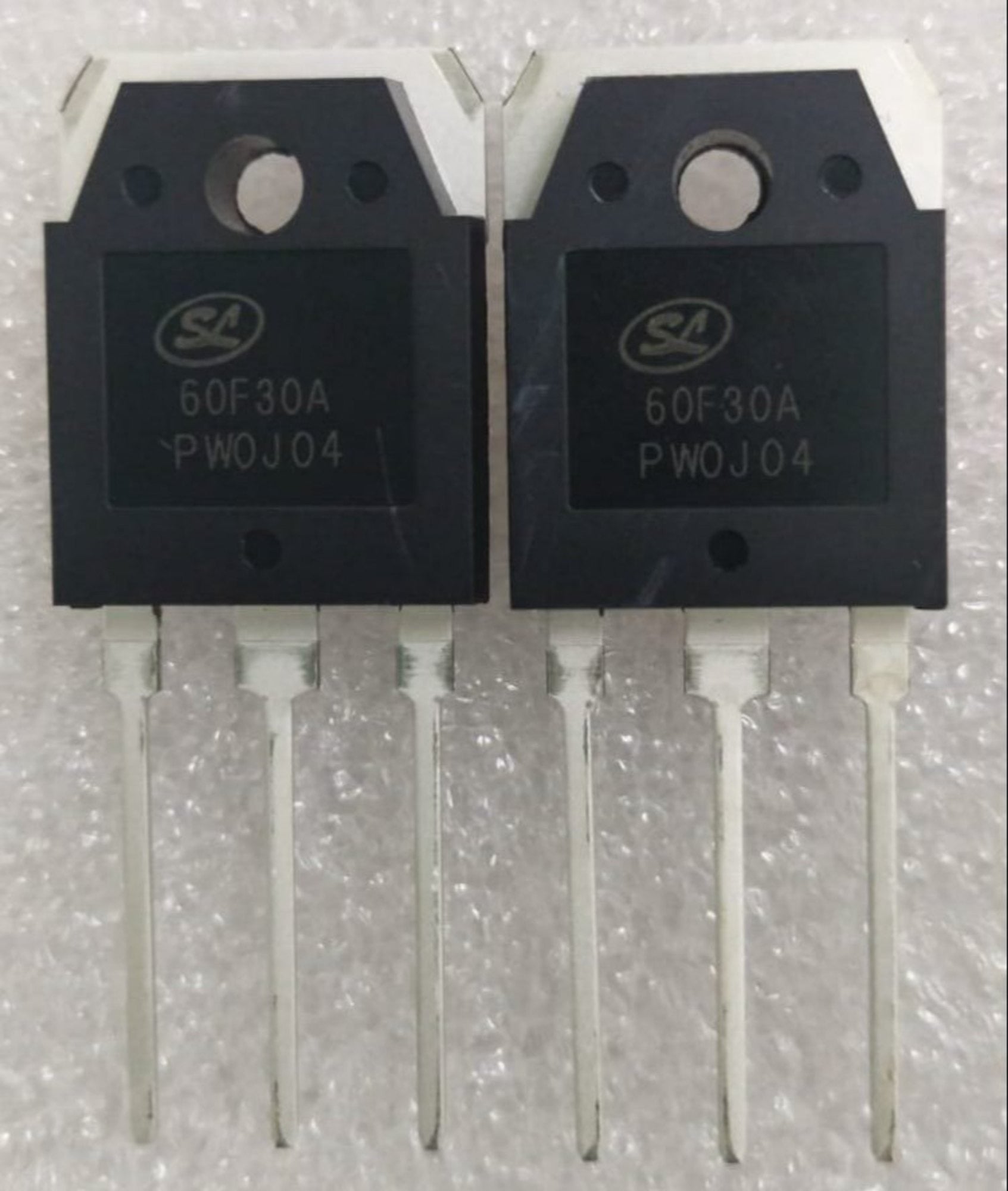

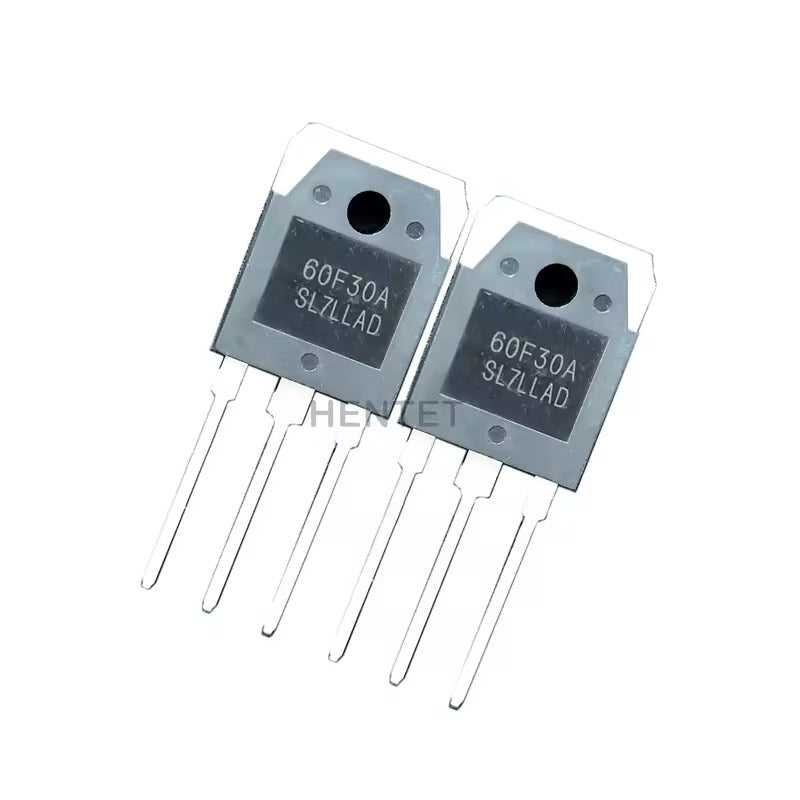

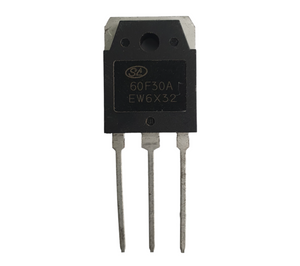

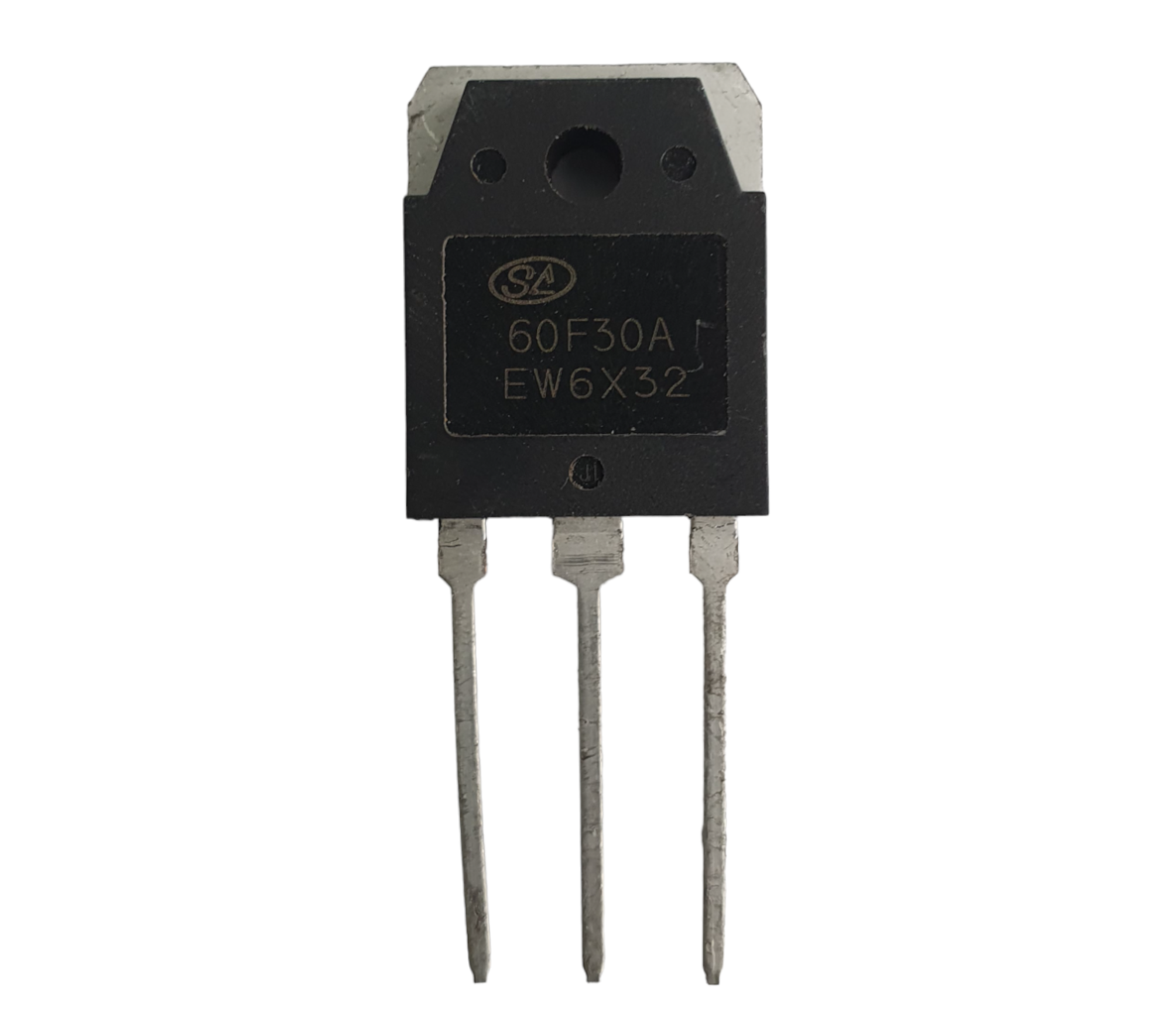

60F30A — Ultra Fast Recovery Rectifier
The 60F30A is an ultra-fast recovery rectifier designed for power-electronics applications requiring reliable performance. With low forward voltage drop and fast reverse recovery, it reduces switching losses and electromagnetic interference in SMPS, DC–DC converters, UPS systems, and inverter drives. Its TO-3P package ensures stable operation in industrial and commercial equipment.
The device provides a wide operating junction temperature range and low leakage current, minimizing thermal stress during continuous operation. Its surge current capability and thermal resistance (RθJC ≈ 0.53 °C/W) support heavy-duty use while maintaining efficiency and stable conduction under varying loads.
The 60F30A is suitable for output rectification and free-wheeling in motor drives, choppers, and power supplies. Its combination of low forward voltage, fast recovery time, and robust thermal characteristics allows integration into industrial and commercial systems with standard design requirements.
Key Specs
| Parameter | Value | Unit |
|---|---|---|
| Device type | Ultra-fast recovery diode | |
| Part number / Manufacturer | 60F30A / RFR | |
| Package | TO-3P | |
| Peak repetitive reverse voltage (VRRM) | 300 | V |
| Average rectified forward current (per leg) IF(AV) | 30 | A |
| Total device average forward current | 60 | A |
| Non-repetitive peak surge current (IFSM) | 300 | A |
| Maximum instantaneous forward voltage (IF = 30 A, Tc = 25 °C) | ≤1.25 | V |
| Maximum reverse recovery time (trr) | ≤45 | ns |
| Maximum reverse current (Rated V, Tc = 25 °C) | ≤100 | µA |
| Thermal resistance, junction-to-case (RθJC) | ≈0.53 | °C/W |
| Operating junction temperature (TJ) | −65 to +175 | °C |
For detailed information, refer to the RFR datasheet RFR60F30APN datasheet — technical PDF.
