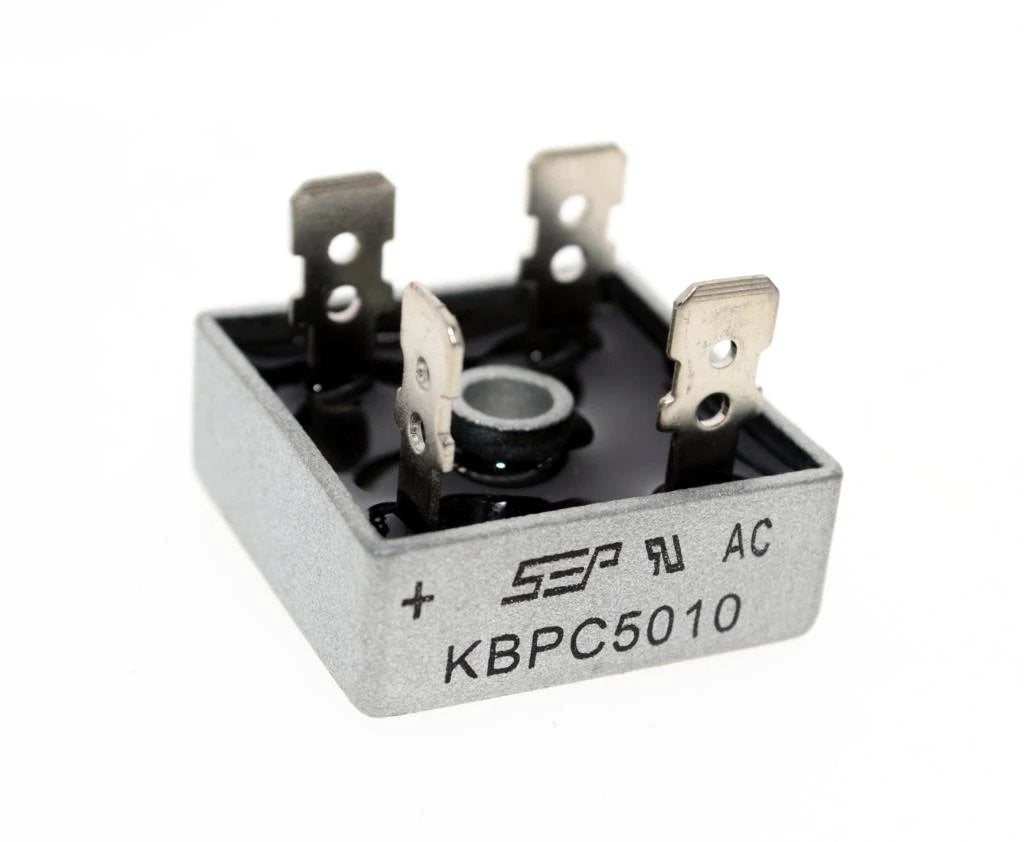

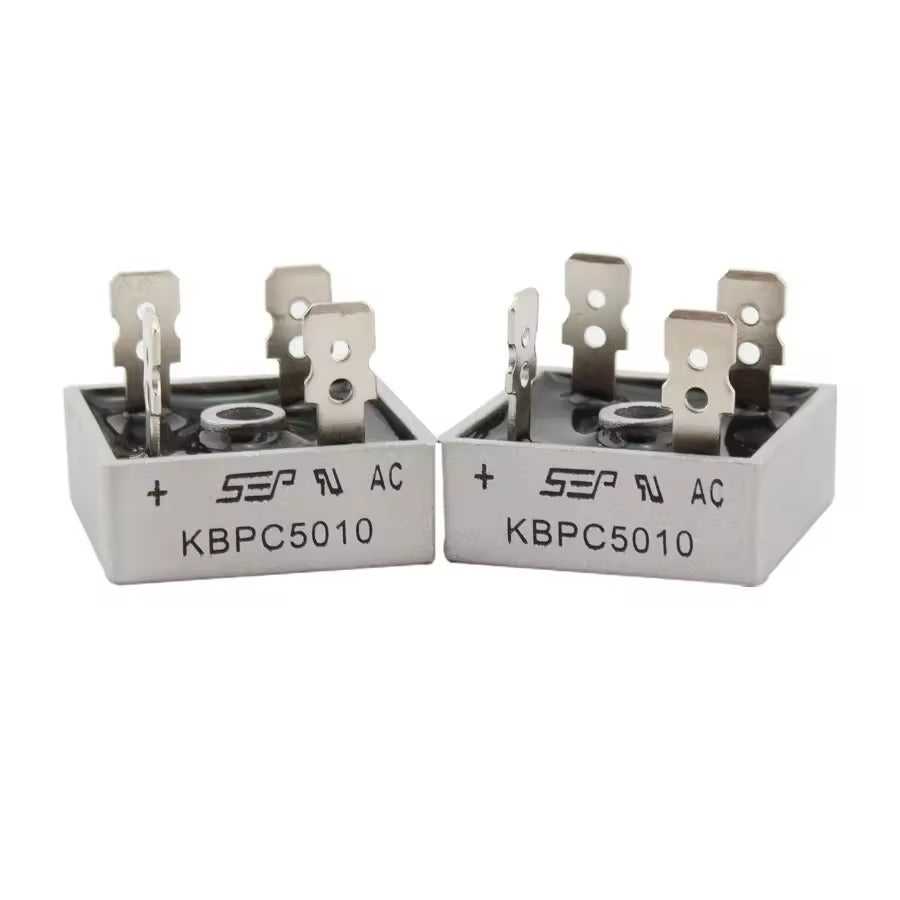

KBPC5010 50A 1000V Single Phase Bridge Rectifier

KBPC5010 50A 1000V Bridge Rectifier

The KBPC5010 is a single-phase bridge rectifier designed for AC to DC conversion in power electronics systems that require high current and high voltage handling. It is rated for a maximum average forward current of 50 A and a maximum repetitive peak reverse voltage of 1000 V, making it suitable for continuous operation in industrial and commercial power circuits. The rectifier integrates four silicon diodes in a compact metal package that supports stable electrical performance under varying load conditions.

This bridge rectifier features a low forward voltage drop, which helps reduce conduction losses and supports efficient power conversion. The electrically isolated metal case improves thermal management by allowing effective heat dissipation when mounted to a heatsink or chassis. High surge current capability enables the KBPC5010 to tolerate short-term current spikes commonly found during power-up or load changes, contributing to consistent operation in demanding environments.

The KBPC5010 is commonly used in power supplies, battery chargers, inverters, motor drives, LED drivers, and industrial automation equipment. Its four-pin configuration with fast-on terminals allows secure electrical connections and flexible installation in both PCB-based and chassis-mounted designs. The rectifier complies with RoHS requirements and is suitable for use in systems that require reliable rectification under high-voltage conditions.

Key Specs
