FR107 1 A 1000 V Fast Recovery Rectifier Diode – DO‑41 Axial Package
The FR107 is a fast recovery rectifier diode rated for 1 A average forward current and up to 1000 V peak reverse voltage. It offers rapid reverse recovery (≤ 500 ns), low forward voltage drop (~1.3 V @ 1 A), and high surge current capability, making it ideal for high-frequency rectification in switched-mode power supplies, converters, and industrial electronics.
Packaged in a DO‑41 axial body with solderable leads, the FR107 features reliable construction and fast switching characteristics. It withstands temperature ranges from −65 °C to +150 °C and delivers consistent performance in demanding circuitry designs.

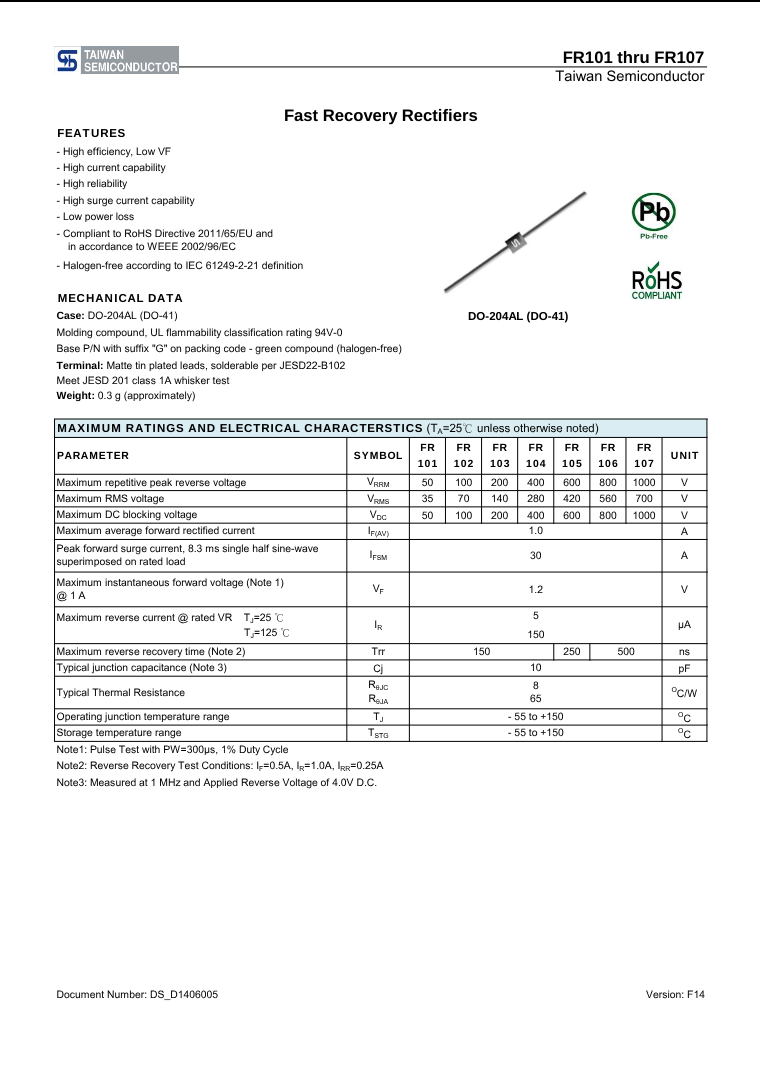

Key Specs Peak Repetitive Reverse Voltage (VRRM): 1000 V Average Forward Current (IF(AV)): 1 A Surge Forward Current (IFSM): 30 A (8.3 ms half-sine) Forward Voltage Drop (VF): ≤ 1.3 V @ 1 A Reverse Recovery Time (Trr): ≤ 500 ns Reverse Leakage Current (IR): ≤ 5 µA @ VRRM Junction Capacitance (CJ): ≈ 15 pF @ 1 MHz Operating Temperature: −65 °C to +150 °C Package Type: DO‑41 axial, molded plastic body Compliance: Pb-free, RoHS compliant
Features Fast reverse recovery time: ≤ 500 ns Low forward voltage drop: ≤ 1.3 V @ 1 A High surge current handling: up to 30 A (8.3 ms half-sine) Low reverse leakage: ≤ 5 µA @ VRRM Compact DO‑41 axial package with molded plastic body Wide operating temperature range: −65 °C to +150 °C Compatible with high-frequency switching circuits RoHS compliant and lead-free design
