5KP54A 54V TVS Diode
Regular price
Rs.250.00
Sale price
Rs.270.00
5KP54A
The 5KP54A is a unidirectional transient voltage suppression (TVS) diode designed to protect electronic circuits from high-energy voltage transients. It supports a 54 V reverse standoff voltage (V<sub>RWM</sub>) and a 5 kW peak pulse power rating with a 10/1000 µs waveform, making it suitable for power electronics exposed to surge and switching events. The device is commonly used in industrial control systems, power supplies, telecom equipment, and data interface lines where stable overvoltage protection is required.

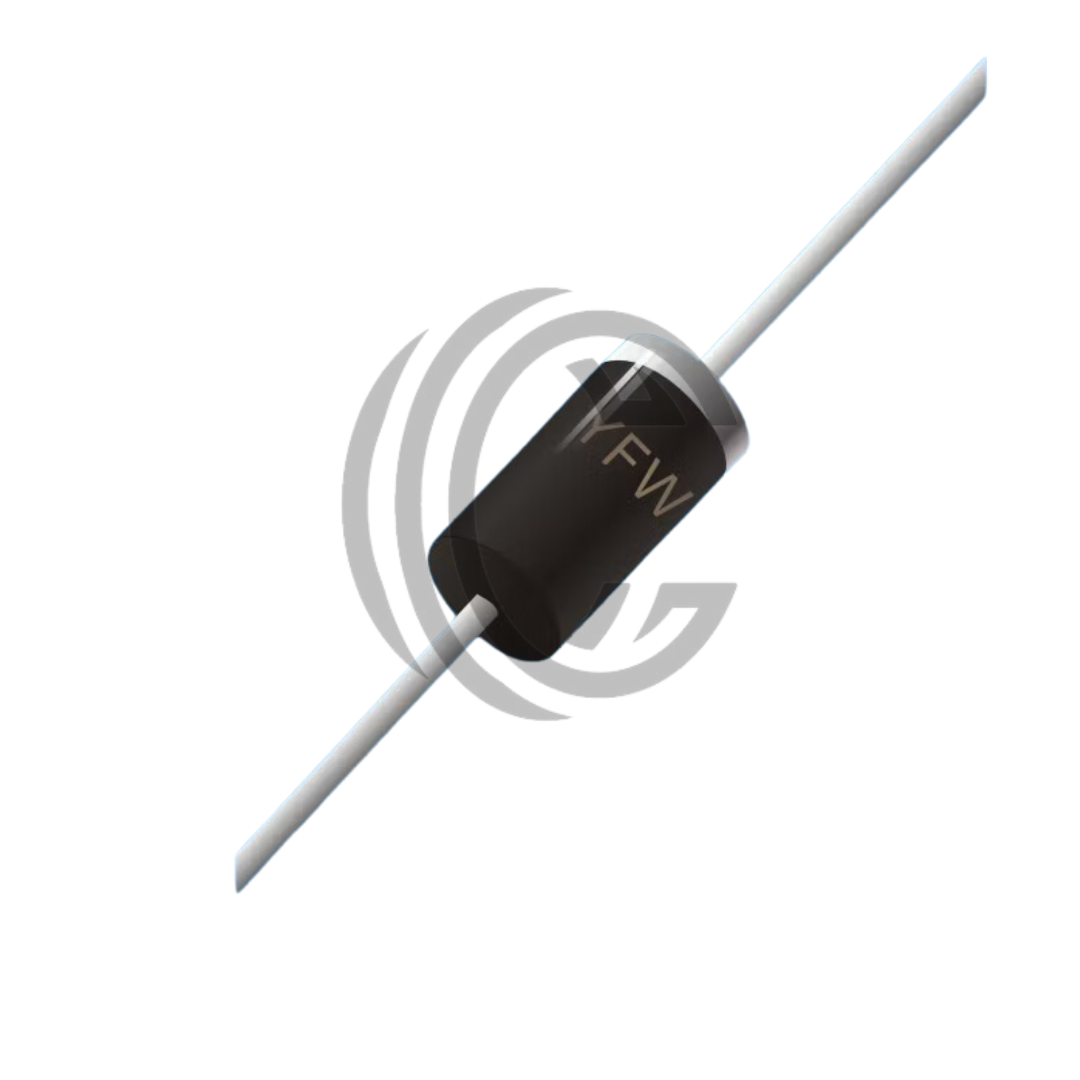

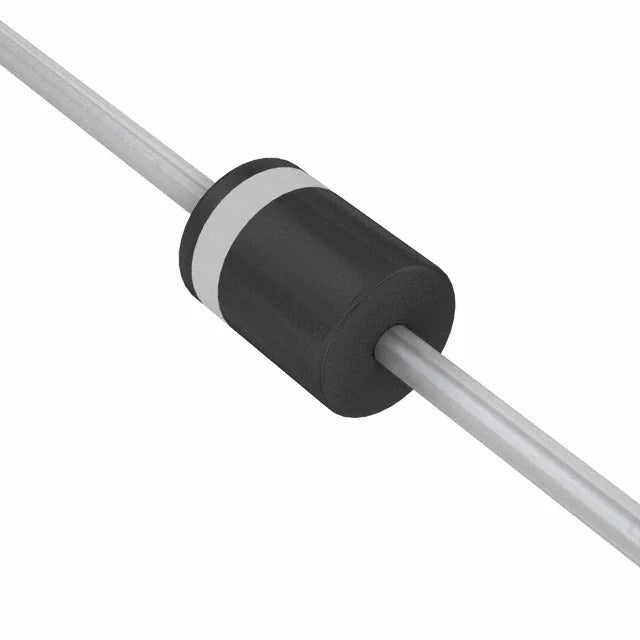

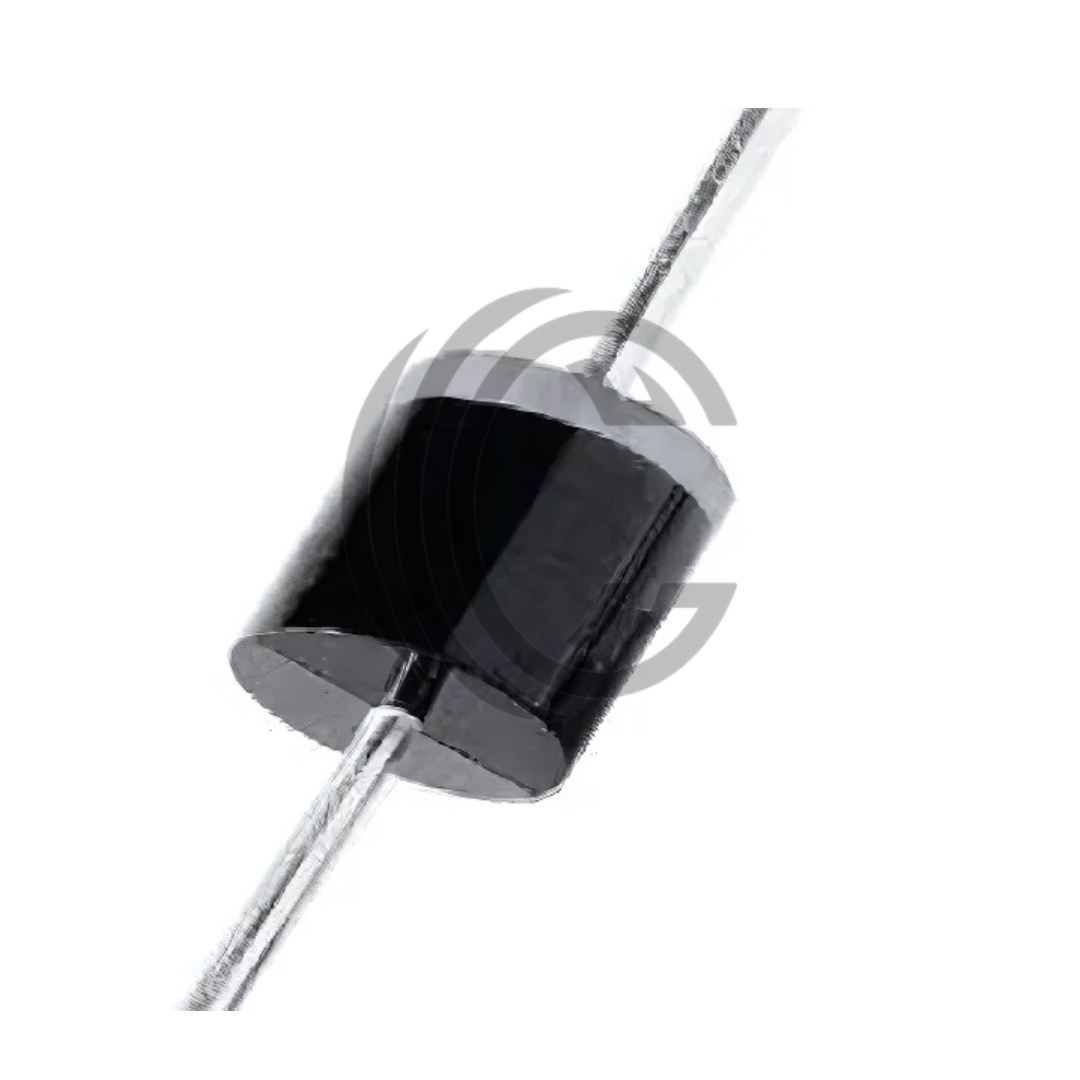

This TVS diode is built with a glass-passivated junction housed in a P600 axial through-hole package, providing consistent electrical characteristics and mechanical stability. It features a breakdown voltage range of 60 V to 66.3 V and clamps transients at approximately 87.1 V under a peak pulse current of 58.6 A. The fast response time, typically less than 1 ps from 0 V to breakdown, helps limit transient energy before it reaches sensitive components, while low leakage current supports normal circuit operation.
The 5KP54A is specified for operation across a wide junction temperature range of −55 °C to +175 °C, supporting use in harsh industrial and commercial environments. It meets RoHS and halogen-free requirements and complies with UL 94 V-0 flammability standards, making it suitable for long-term integration in regulated electronic designs.

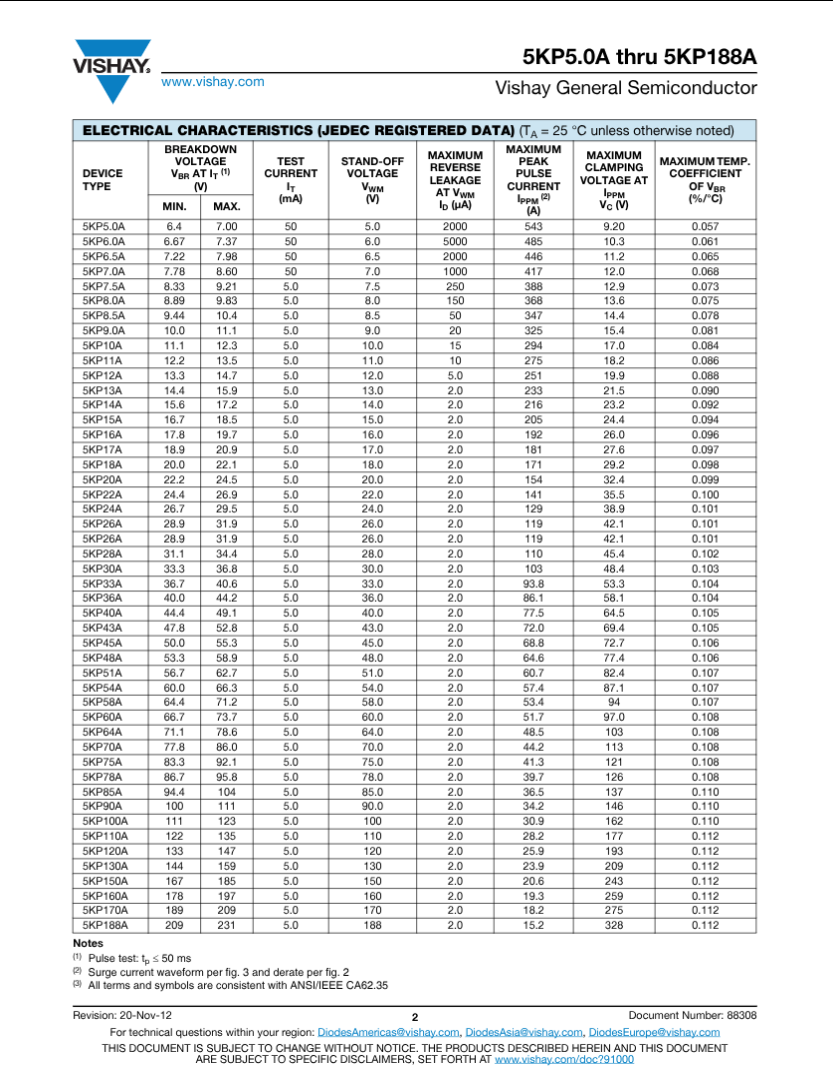

Key Specs
| Specification | Value |
|---|---|
| Reverse Standoff Voltage (V<sub>RWM</sub>) | 54 V |
| Breakdown Voltage (V<sub>BR</sub>) | 60 V – 66.3 V |
| Clamping Voltage (V<sub>C</sub> @ I<sub>PP</sub>) | ~87.1 V |
| Peak Pulse Current (I<sub>PP</sub>, 10/1000 µs) | 58.6 A |
| Peak Pulse Power Dissipation | 5 kW |
| Leakage Current (I<sub>R</sub> @ V<sub>RWM</sub>) | < 2 µA |
| Response Time | < 1 ps (0 V to breakdown) |
| Operating Junction Temperature | −55 °C to +175 °C |

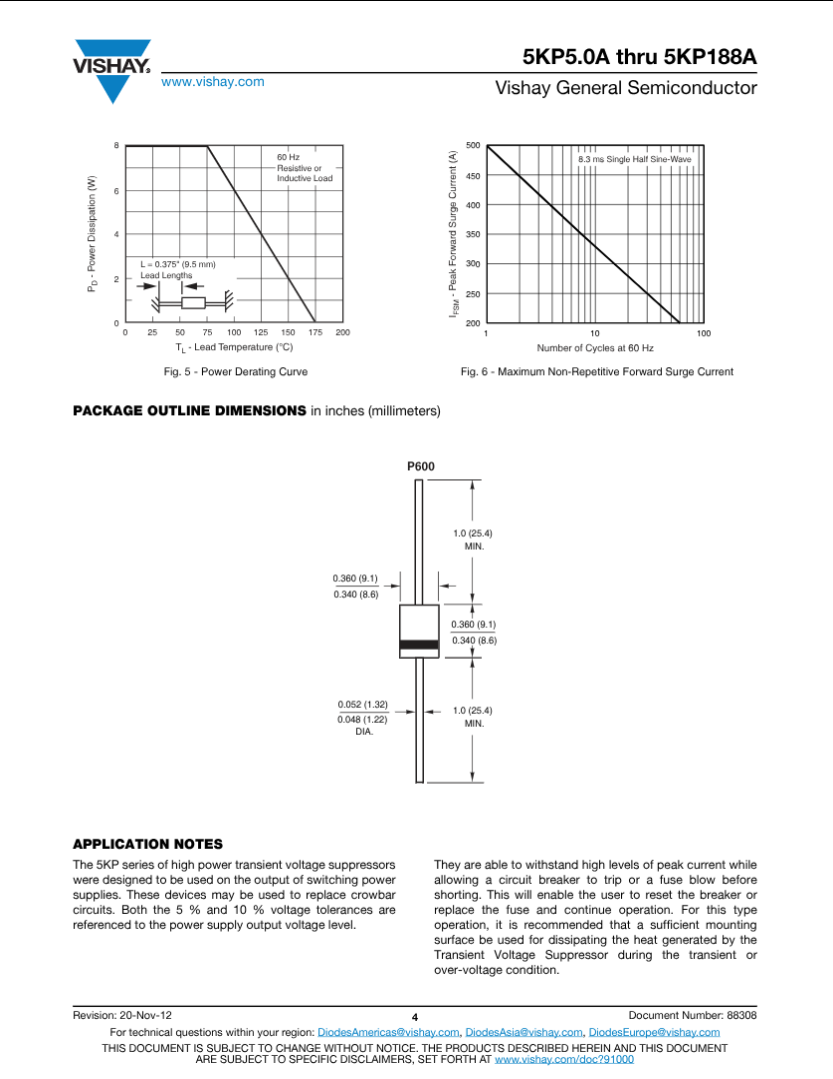

| Package | P600 axial through-hole |
| Polarity | Unidirectional |
| Compliance | RoHS, Halogen-free, UL 94 V-0 |
