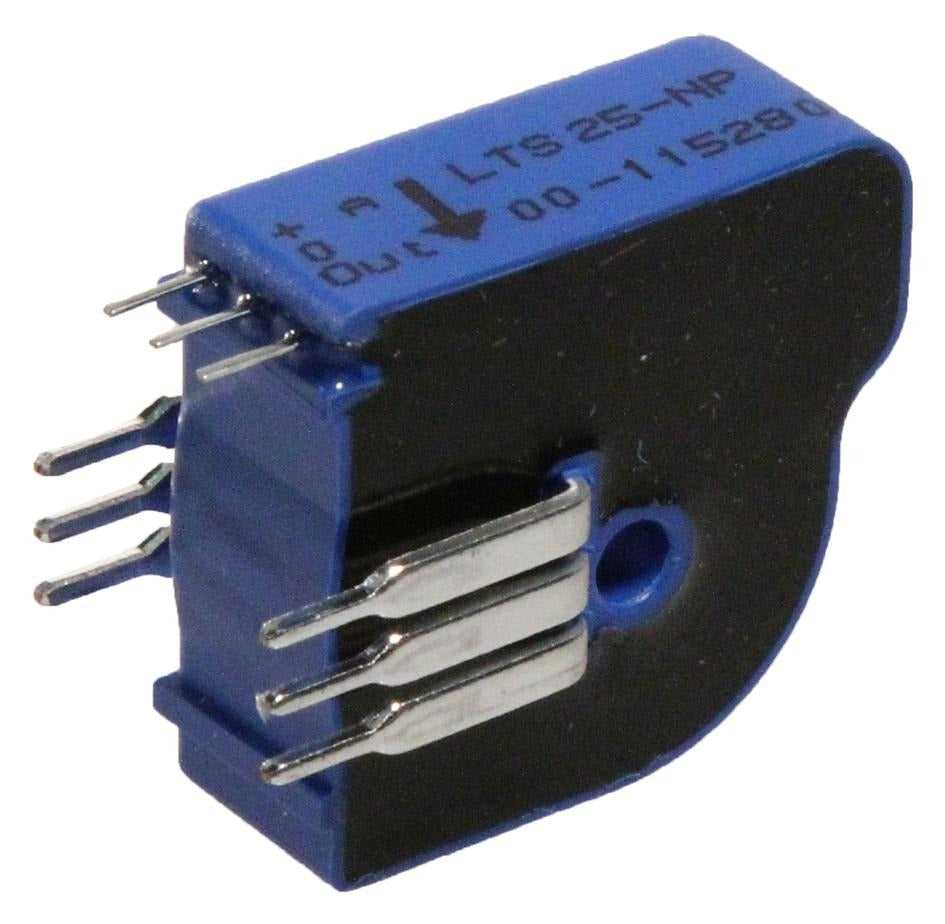

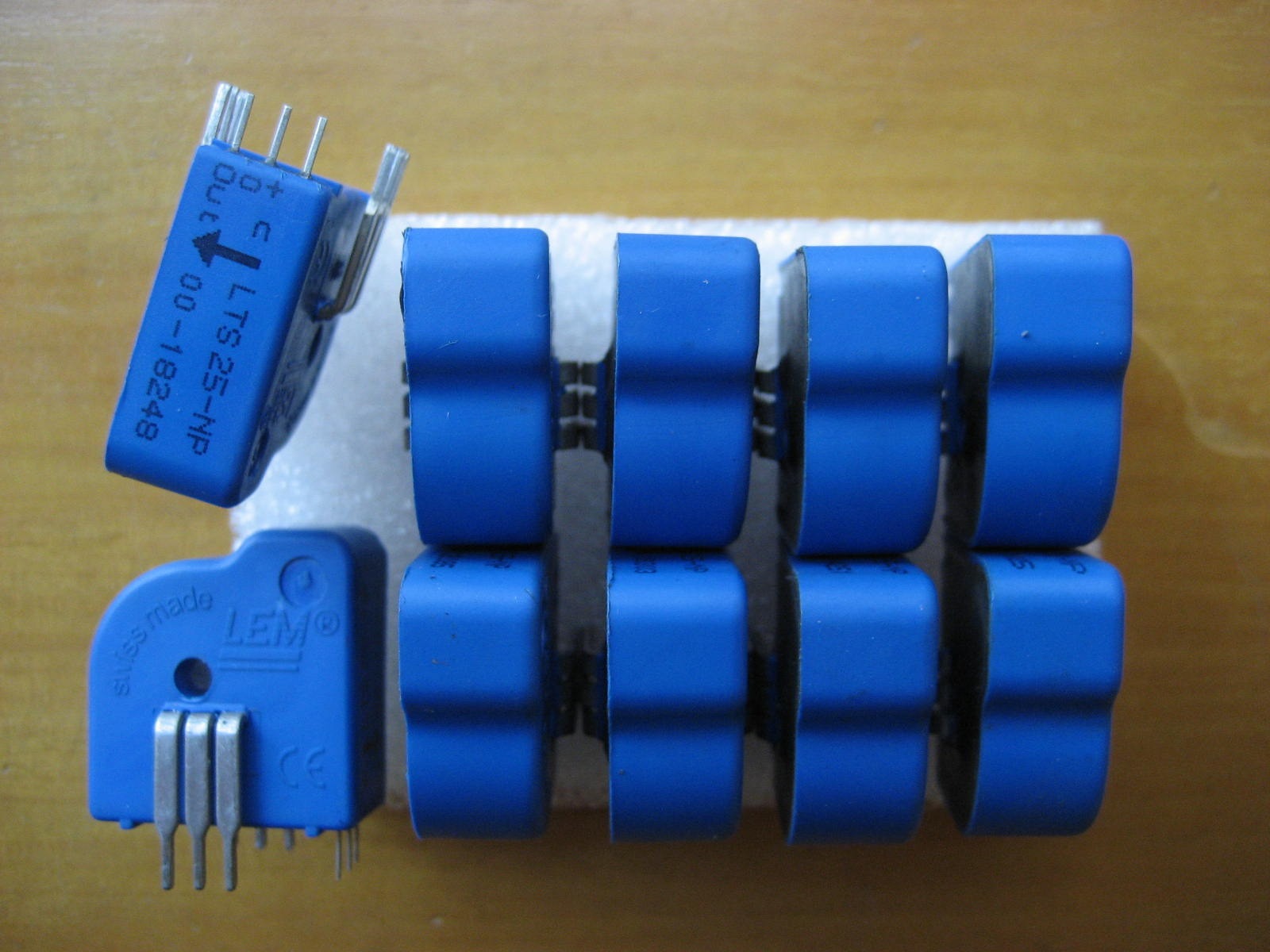

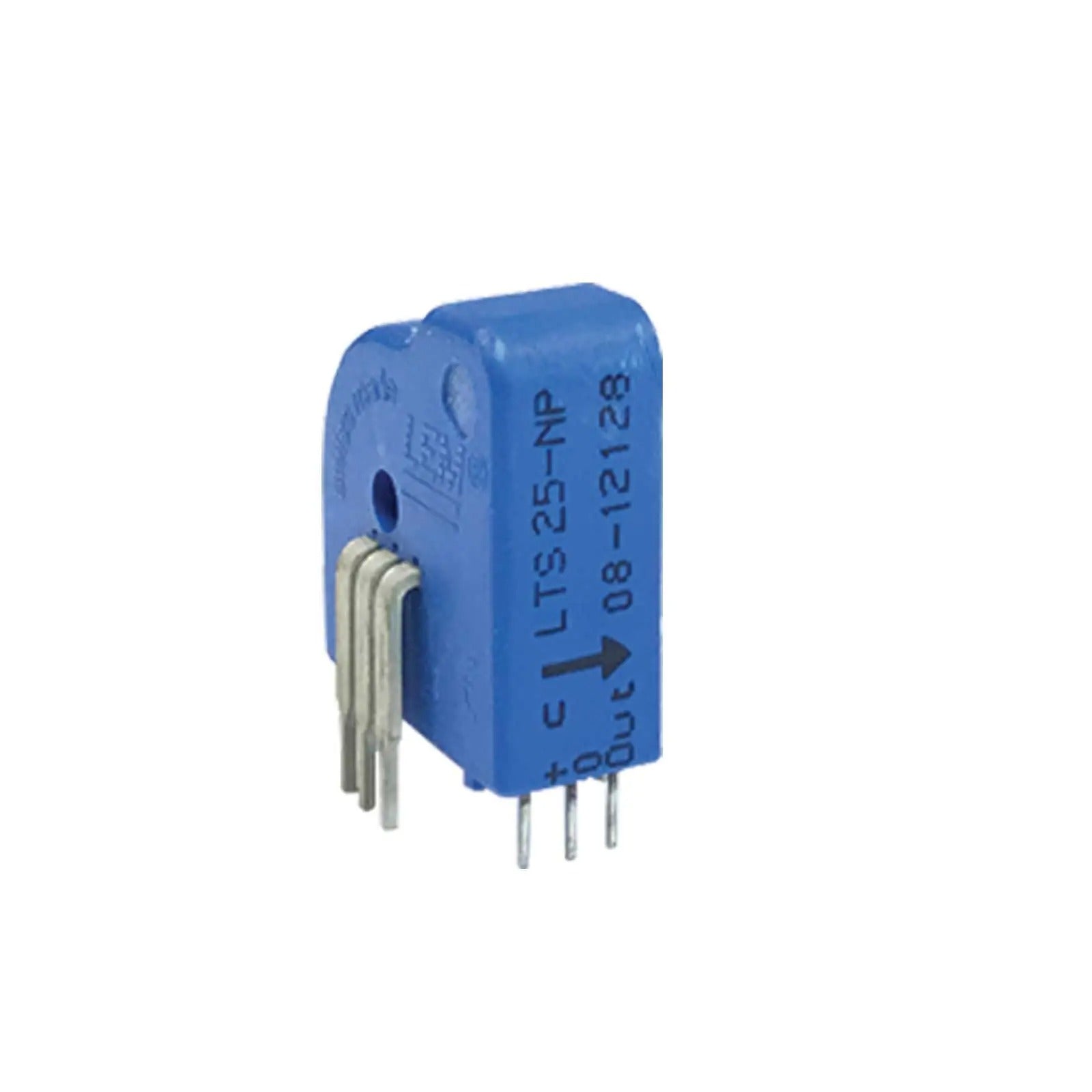

LTS25-NP Current Transducer
The LTS25-NP by LEM is a high-performance current transducer designed for accurate and isolated current measurement in power electronics applications. Utilizing closed-loop Hall effect technology, this transducer offers precise monitoring of both AC and DC currents up to ±80A, making it ideal for a wide range of industrial and commercial applications.
With a compact PCB-mountable design and an isolated plastic case recognized according to UL 94-V0, the LTS25-NP ensures durability and reliability in demanding environments. Its excellent accuracy of ±0.2% and linearity error less than 0.1% guarantee precise current measurements, while its wide frequency bandwidth (DC to 200 kHz) and low temperature drift (50 ppm/K) ensure optimal performance across various operating conditions.
The LTS25-NP is widely used in applications such as AC variable speed drives, servo motor drives, static converters for DC motor drives, battery-supplied applications, Uninterruptible Power Supplies (UPS), Switched Mode Power Supplies (SMPS), and power supplies for welding applications. Its bidirectional measurement capability and high immunity to external interference make it a versatile choice for various power electronics systems.
Key Specifications:
| Parameter | Value |
|---|---|
| Primary Nominal Current (Iₚₙ) | ±25 A |
| Measuring Range (Iₚₘ) | 0 to ±80 A |
| Output Voltage (Vₒᵤᵗ) | 2.5 V ± (0.625 × Iₚ/Iₚₙ) |
| Sensitivity (G) | 25 mV/A |
| Supply Voltage (Vₒᵤᵗ) | 5 V ±5% |
| Load Resistance (Rᴸ) | ≥ 2 kΩ |
| Internal Measuring Resistance (Rᵢₘ) | 50 Ω |
| Accuracy at Iₚₙ, Tₐ = 25°C | ±0.2% |
| Linearity Error (εᴸ) | < 0.1% |
| Temperature Coefficient of Vₒᵤᵗ | 50 ppm/K (10°C to 85°C) |
| Response Time (tᵣ) | < 400 ns |
| Frequency Bandwidth (BW) | DC to 200 kHz |
| Operating Temperature (Tₐ) | -40°C to +85°C |
| Storage Temperature (Tₛ) | -40°C to +100°C |
| Mounting Type | PCB |
| Package Type | Module, Single Pass Through |
For more detailed information, please refer to the LEM LTS25-NP Datasheet.
