Minco KF139‑19.0 600 V 100 A PCB Terminal Block
Regular price
Rs.125.00
Sale price
Rs.135.00

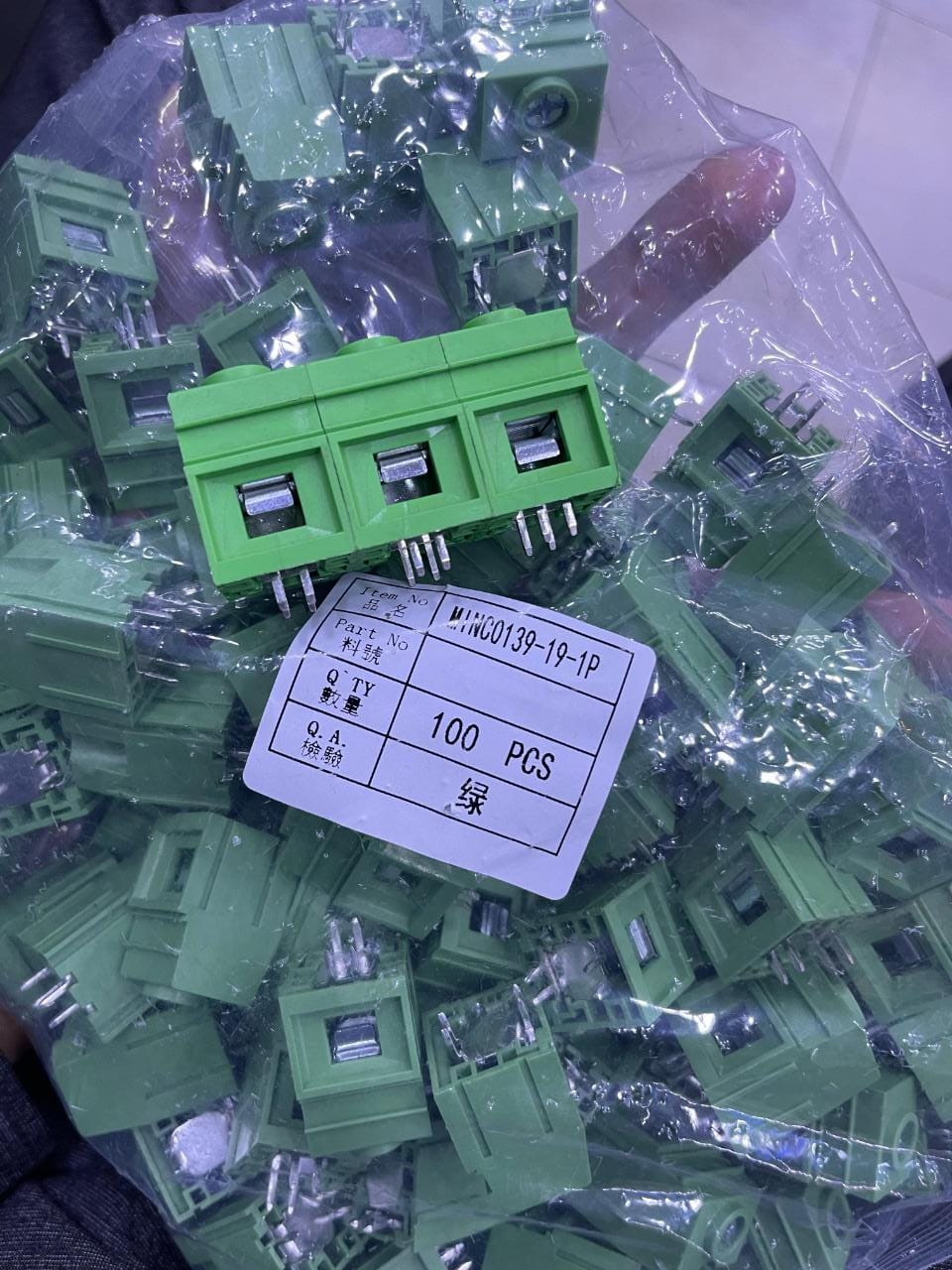

KF139‑19.0 PCB Terminal Block
The KF139‑19.0 PCB Screw Terminal Block is engineered to deliver exceptional performance in demanding power electronics applications. Rated for 600 V and 100 A, it supports heavy‑duty current handling, making it ideal for high‑power distribution on printed circuit boards. The 19.0 mm pitch and robust M5 screw terminals ensure secure, low-resistance connections, while its flame‑retardant PA66 housing (UL94 V‑0) provides excellent durability and safety—even in harsh industrial environments.
Designed for reliability, this terminal block offers long-term stability under vibration and thermal stress. Its construction includes tin-plated M5 screws and corrosion-resistant materials, delivering dependable conductor retention and minimal contact degradation over repeated power cycles. The wide wire accommodation (up to 25 mm² or 18–3 AWG) gives engineers flexibility to handle large-gauge cables, optimizing both efficiency and practicality in power designs.
From motor control units and solar inverters to industrial automation panels and telecom rectifiers, the KF139‑19.0 is perfectly suited for commercial and industrial deployments. It enables compact, high-current PCB layouts without compromising safety, making it a go-to component for professionals who demand both performance and reliability.

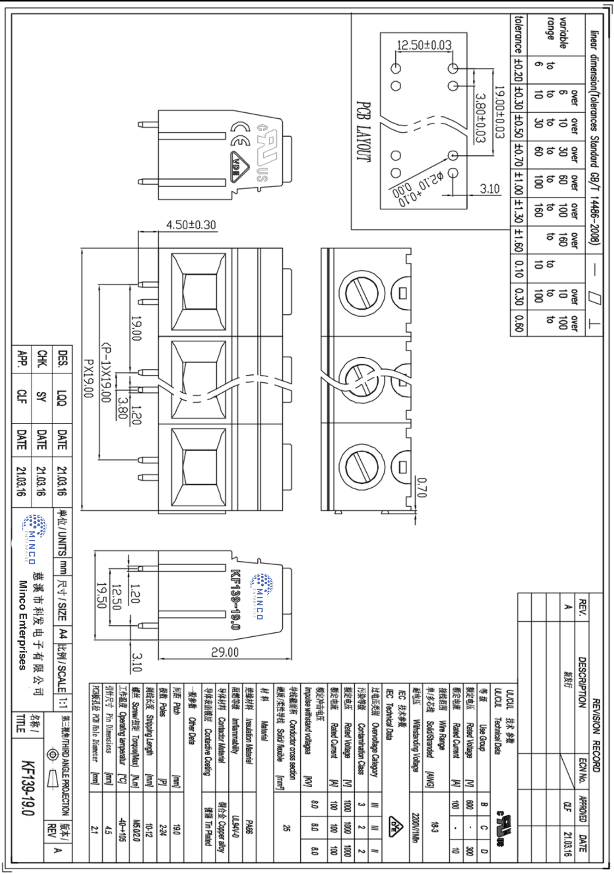

Key Specifications
| Specification | Value / Parameter |
|---|---|
| Rated Voltage | 600 V (AC / DC) |
| Rated Current | 100 A continuous |
| Withstanding Voltage | 3,500 V AC / minute |
| Wire Size (Diameter) | Up to 25 mm² or 18–3 AWG |
| Pitch | 19.0 mm |
| Housing Material | PA66, UL94 V‑0 (flame retardant) |
| Terminal Screw | M5, tin‑plated |
| Temperature Range | –40 °C to +105 °C |
| Maximum Soldering Temp. | 250 °C for 5 s (wave solder) |
