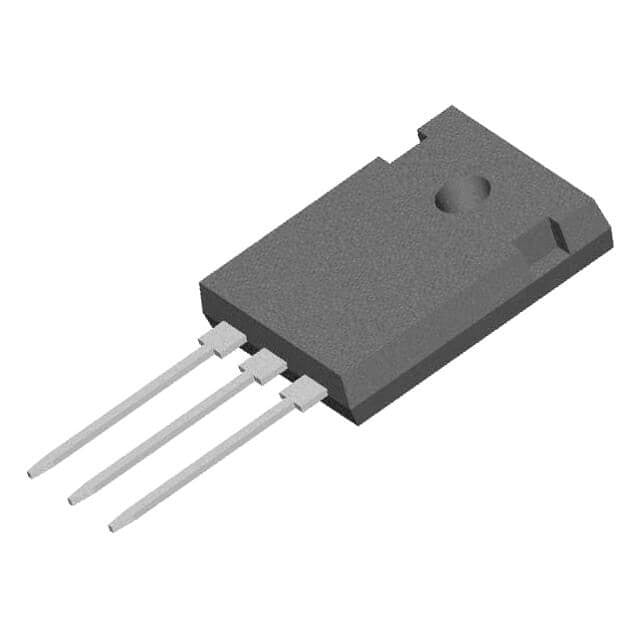

IRGP4063DPBF IGBT
The IRGP4063DPBF is a 600 V, 96 A trench gate field-stop IGBT designed for efficient power switching in industrial automation, renewable energy systems, and EV charging applications. Its trench technology ensures low conduction and switching losses, supporting energy-efficient operation in systems such as solar inverters, wind power converters, and motor drives. The TO‑247 package provides reliable thermal management and compact integration into high-performance circuits.
The device delivers stable operation across demanding conditions, making it suitable for EV chargers, UPS systems, and industrial machinery. Its rugged construction and fast switching capability improve system efficiency while maintaining consistent performance under high currents and harsh environments.
With a wide operating temperature range and high current capacity, the IRGP4063DPBF supports reliable performance in commercial and industrial setups. Its low-loss design reduces energy waste, while its durable structure ensures long-term stability in power conversion applications. This makes it suitable for motor drives, renewable energy converters, and high-current industrial equipment.
Key Specs
| Specification | Value |
|---|---|
| Type | Trench Field‑Stop IGBT with integrated fast-recovery diode |
| Collector-Emitter Voltage (V₍C E₎₍BR₎) | 600 V |
| Continuous Collector Current (I₍C₎) | 96 A |
| Pulsed Collector Current (I₍cm₎) | 144 A |
| V₍C E₎(on) Max | ~2.14 V @ V₍GE₎=15 V, I₍C₎=48 A |
| Maximum Power Dissipation | 330 W |
| Switching Energy | 625 µJ (turn-on), 1.28 mJ (turn-off) |
| Gate Charge (Q₍g₎) | ~95 nC |
| Turn-on / Turn-off Delay (t₍d(on/off)₎) | ~60 ns / ~145 ns at 25 °C |
| Reverse Recovery Time (t₍rr₎) | ~115 ns |
| Short-Circuit Withstand Time | ≥5 μs |
| Junction Temperature (T₍J₎ max) | –40 °C to +175 °C |
| Package | TO‑247‑3 |
| Applications | EV charging stations, motor drives, solar inverters, UPS, wind converters |
